Schematic and Routing Diagrams

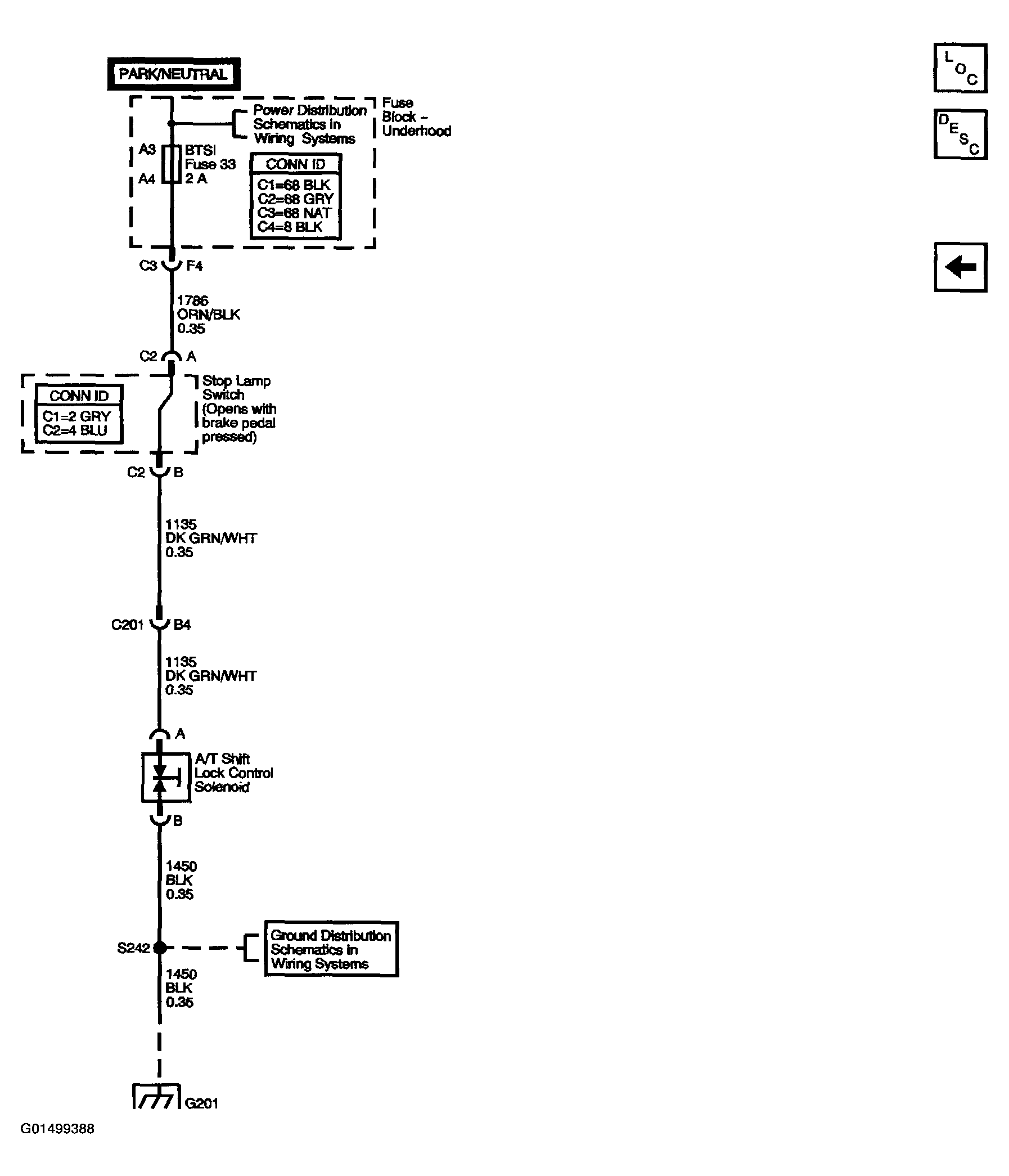

Fig 1: Column/Ignition Lock Schematics Diagram (Aztek)

Courtesy of GENERAL MOTORS CORP.

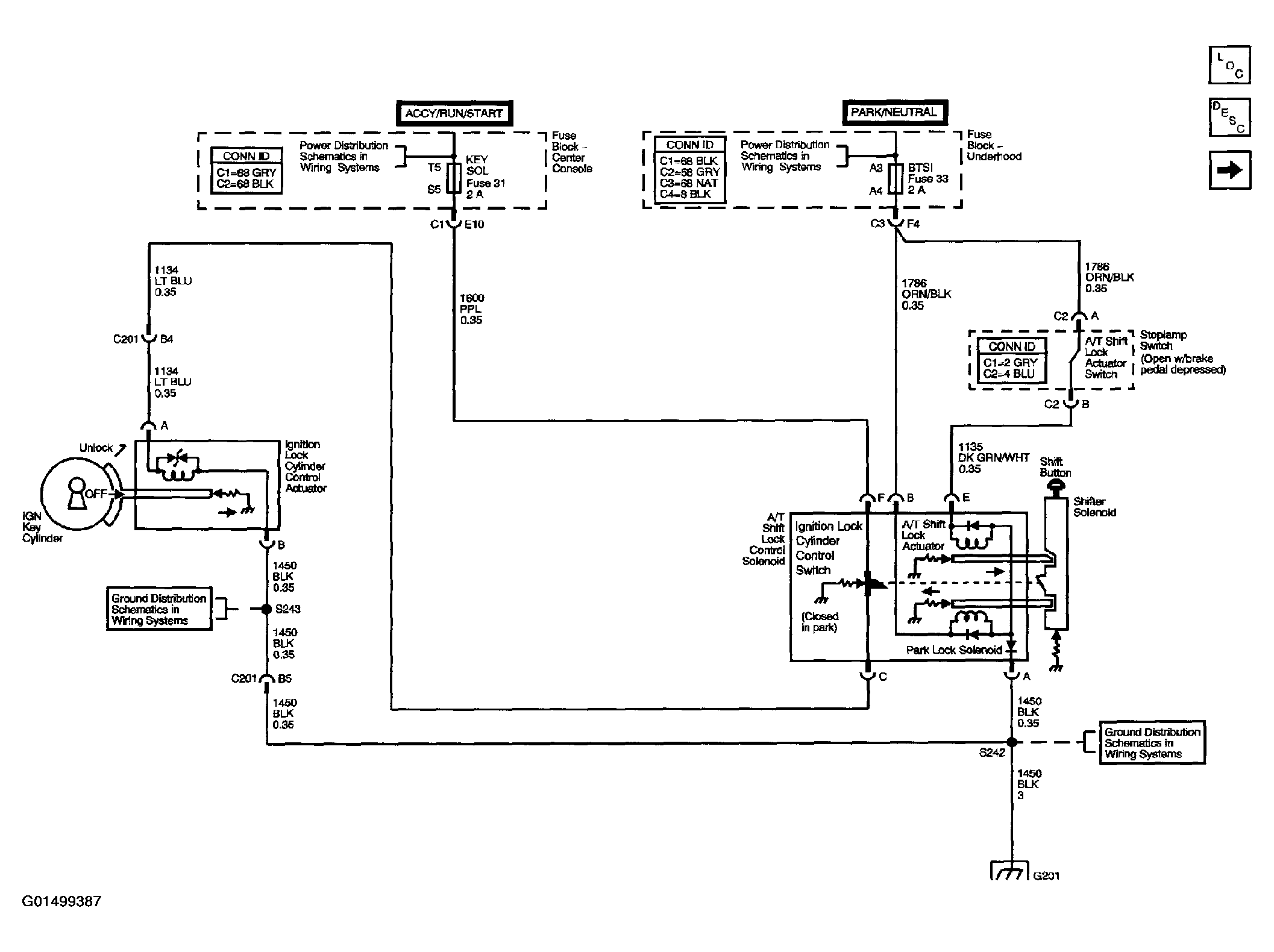

Fig 2: Column/Ignition Lock Schematics Diagram (Rendezvous)

Courtesy of GENERAL MOTORS CORP.
