Oil Pump Assembly: Disassembly

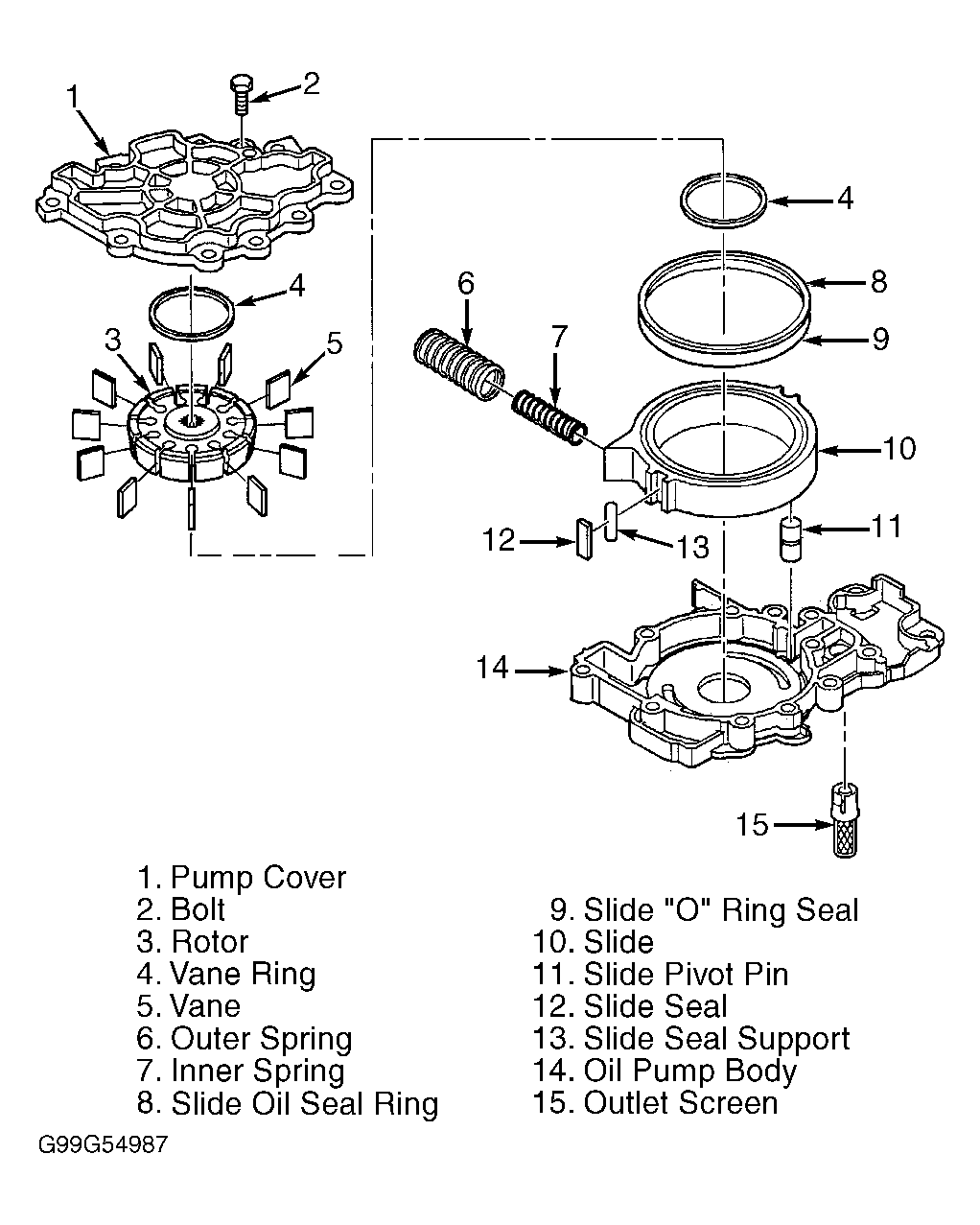

Remove oil pump cover bolt and oil pump cover. Remove pump rotor, vane rings, vanes, oil seal ring and slide "O" ring seal. Remove outer and inner oil pump prime springs, slide seal and slide seal support. Remove slide pivot pin. Remove outlet screen. See Figure.
