Automatic Transmission Shift Lock Control Component Views
›
Center Console - Pontiac
Center Console - Pontiac

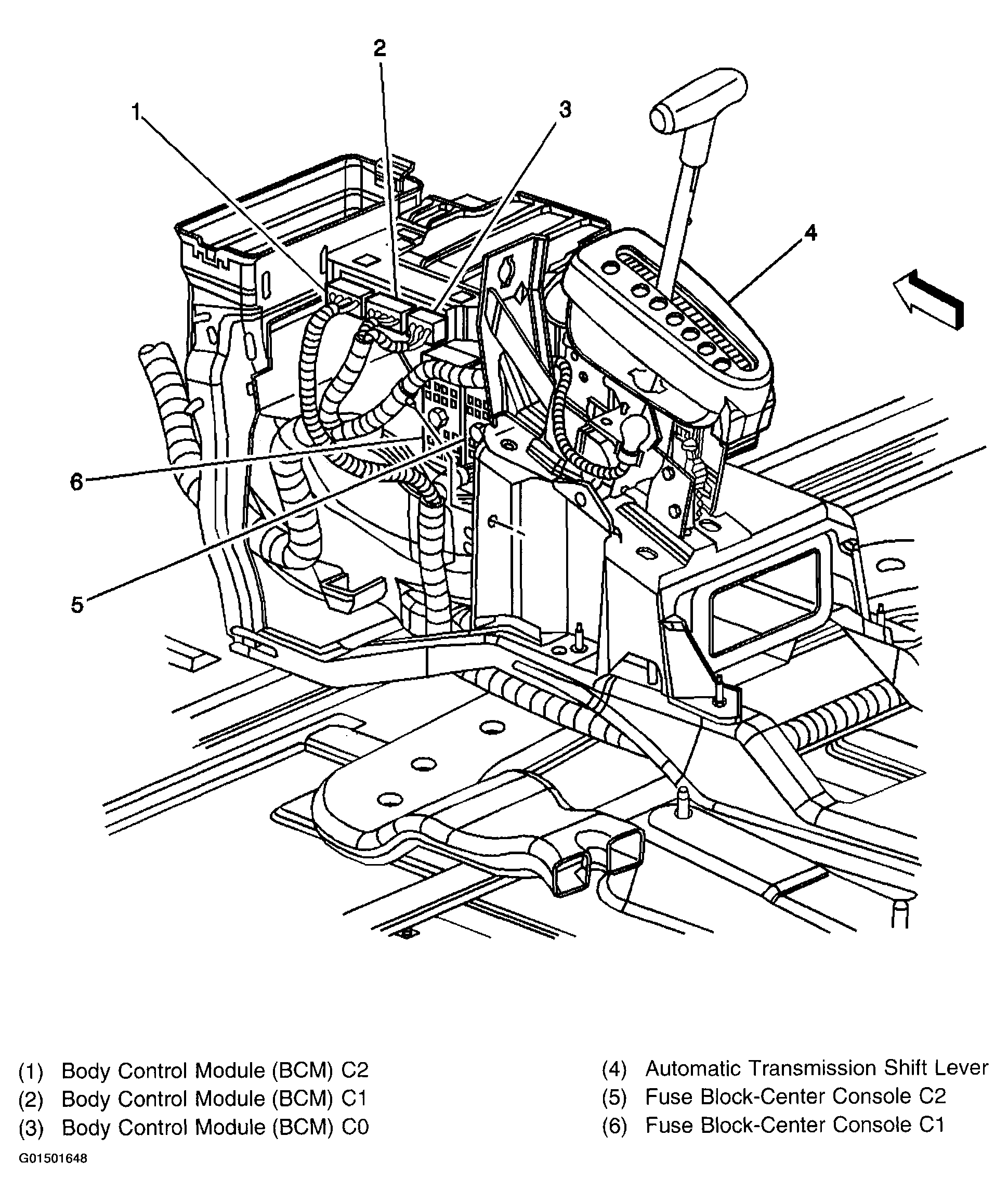

Fig 1: Locating Components On Center Console - Pontiac
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
