Pontiac
›
2003
›
Aztek FWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Shift Interlock System
›
Component Locator
›
Automatic Transmission Shift Lock Control Component Views
›
Steering Column - Buick
Steering Column - Buick

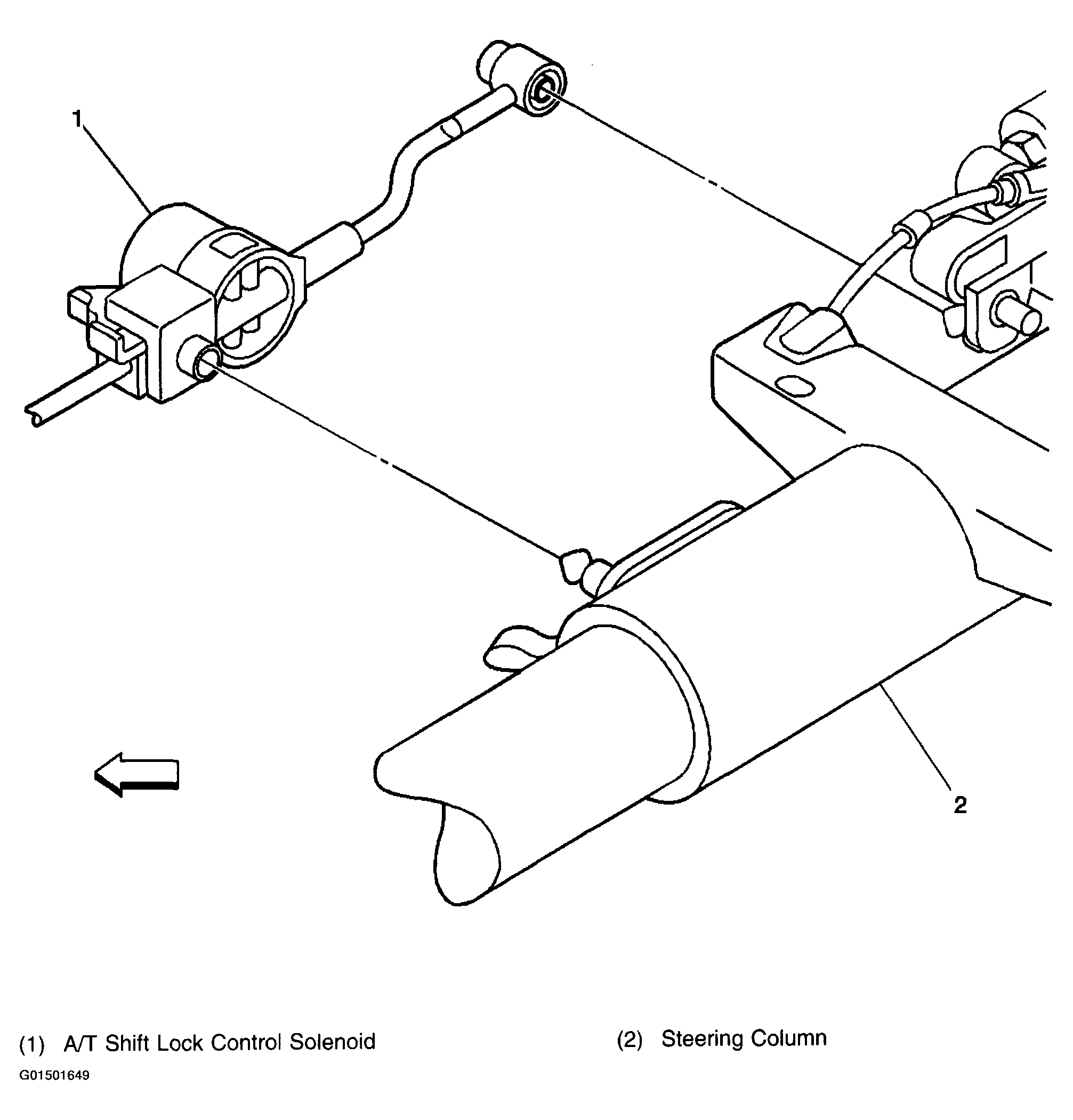

Fig 1: Locating Components On Steering Column - Buick
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
