Automatic Transmission Shift Lock Control Connector End Views
›
A/T Shift Lock Control Solenoid - Pontiac
A/T Shift Lock Control Solenoid - Pontiac

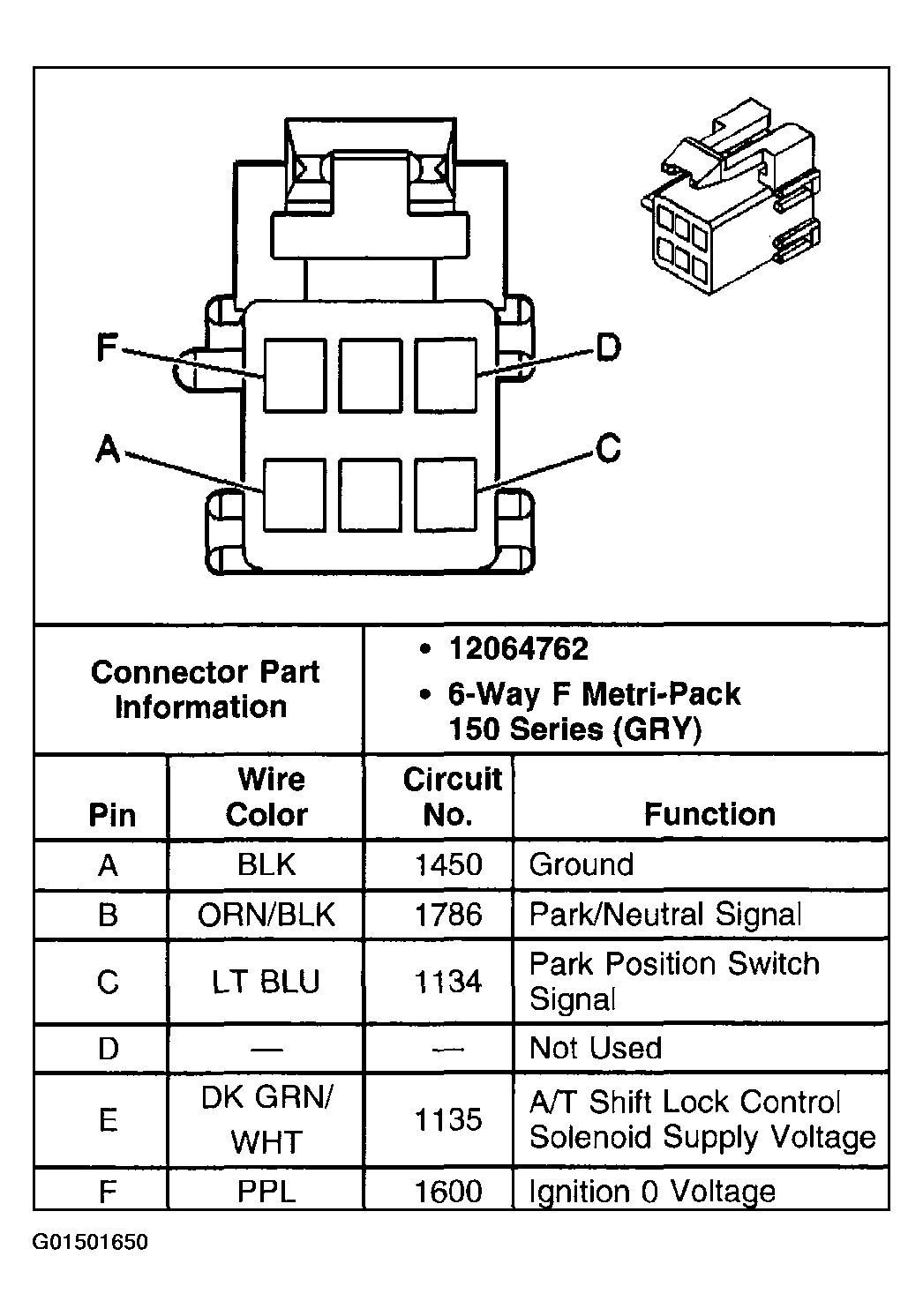

Fig 1: Identifying A/T Shift Lock Control Solenoid Connector - Pontiac
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
