Automatic Transmission Shift Lock Control Schematics (Pontiac)
Automatic Transmission Shift Lock Control Schematics (Pontiac)

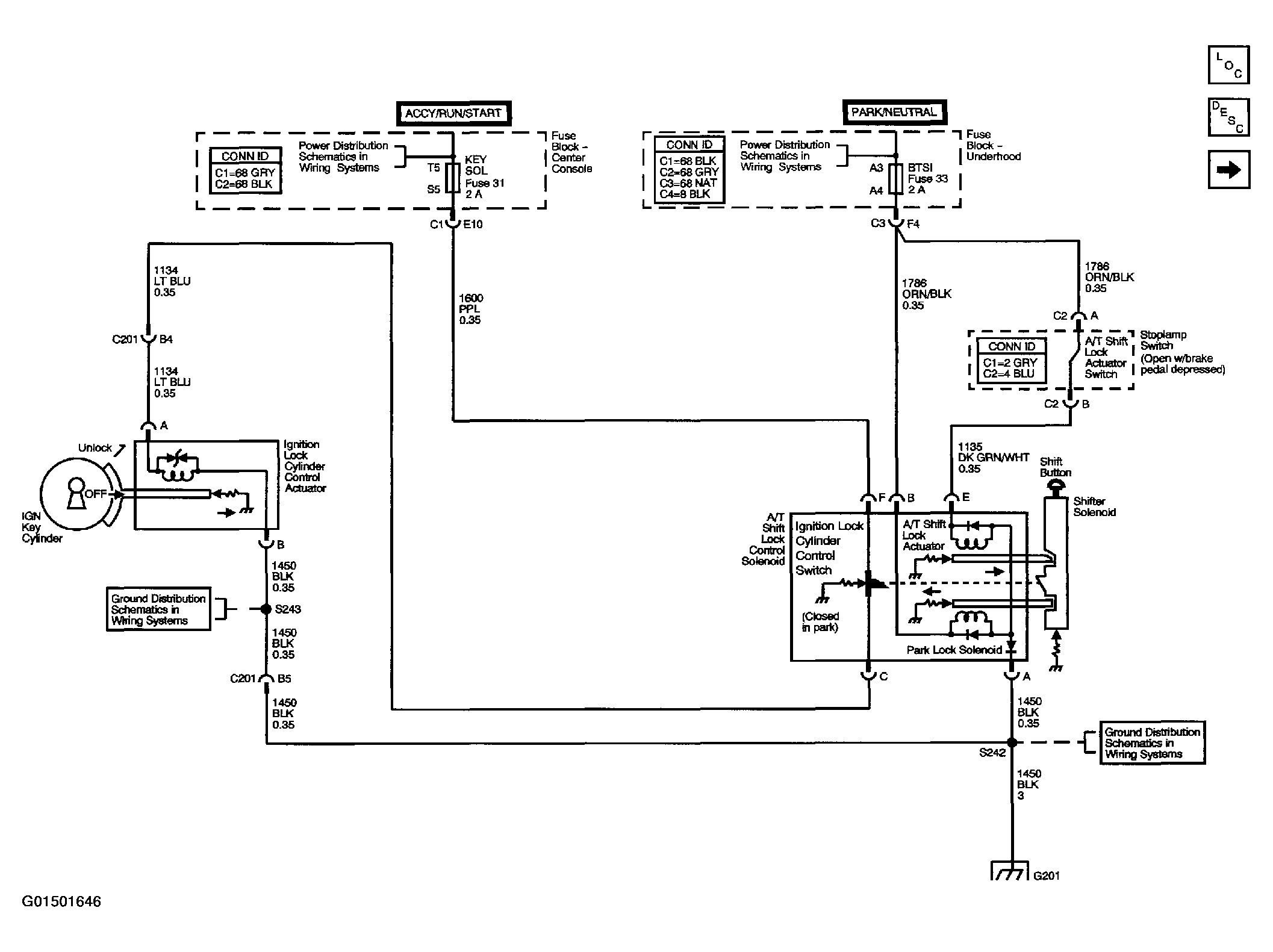

Fig 1: Automatic Transmission Shift Lock Control Schematics (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
