Installation Procedure
- Connect the electrical connector.

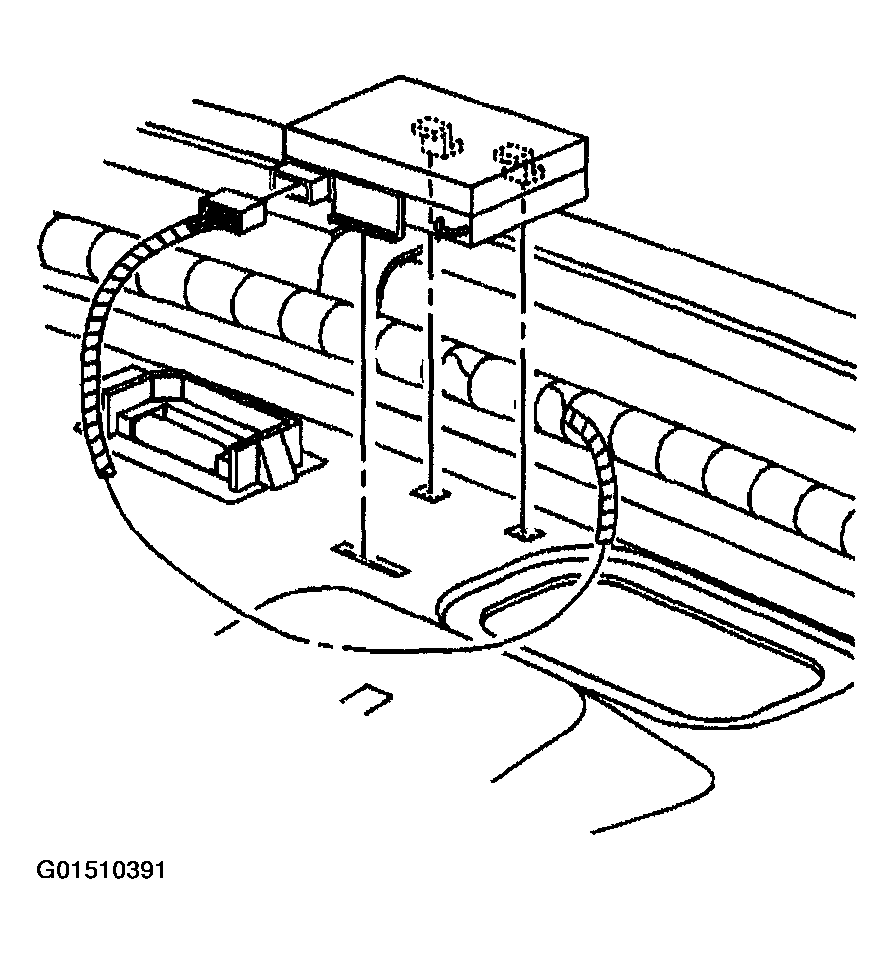

- Install the receiver through the access hole. Snap the mounting tabs into place.
- Install the rear compartment lamp housing. Refer to REAR COMPARTMENT LAMP REPLACEMENT in Lighting Systems.
- Reprogram the new receiver to transmitters. Refer to TRANSMITTER PROGRAMMING .
