Stationary Windows Connector End Views

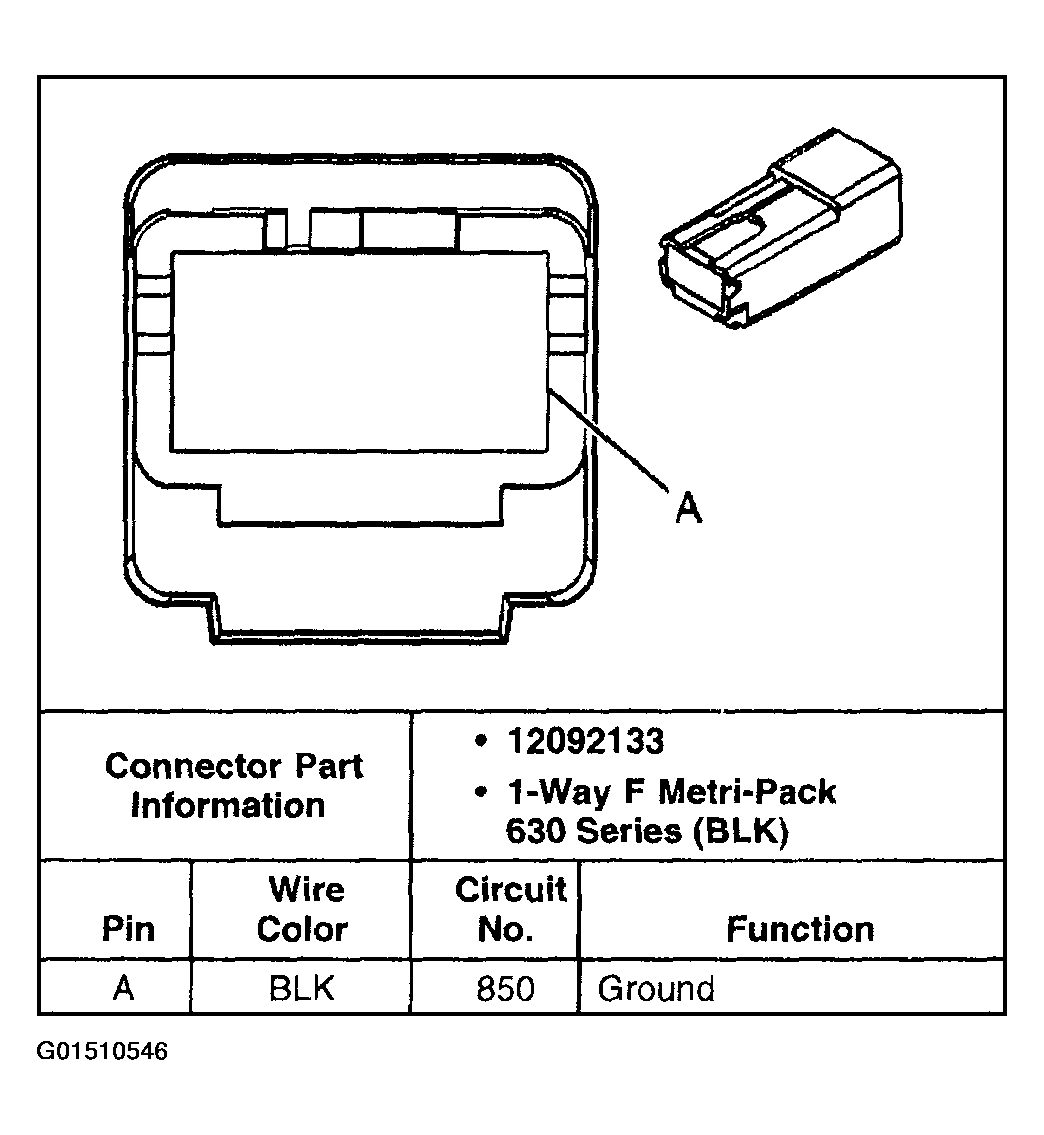

Fig 1: Identifying Connector Of Rear Window Defogger Grid, C1 - Pontiac

Courtesy of GENERAL MOTORS CORP.

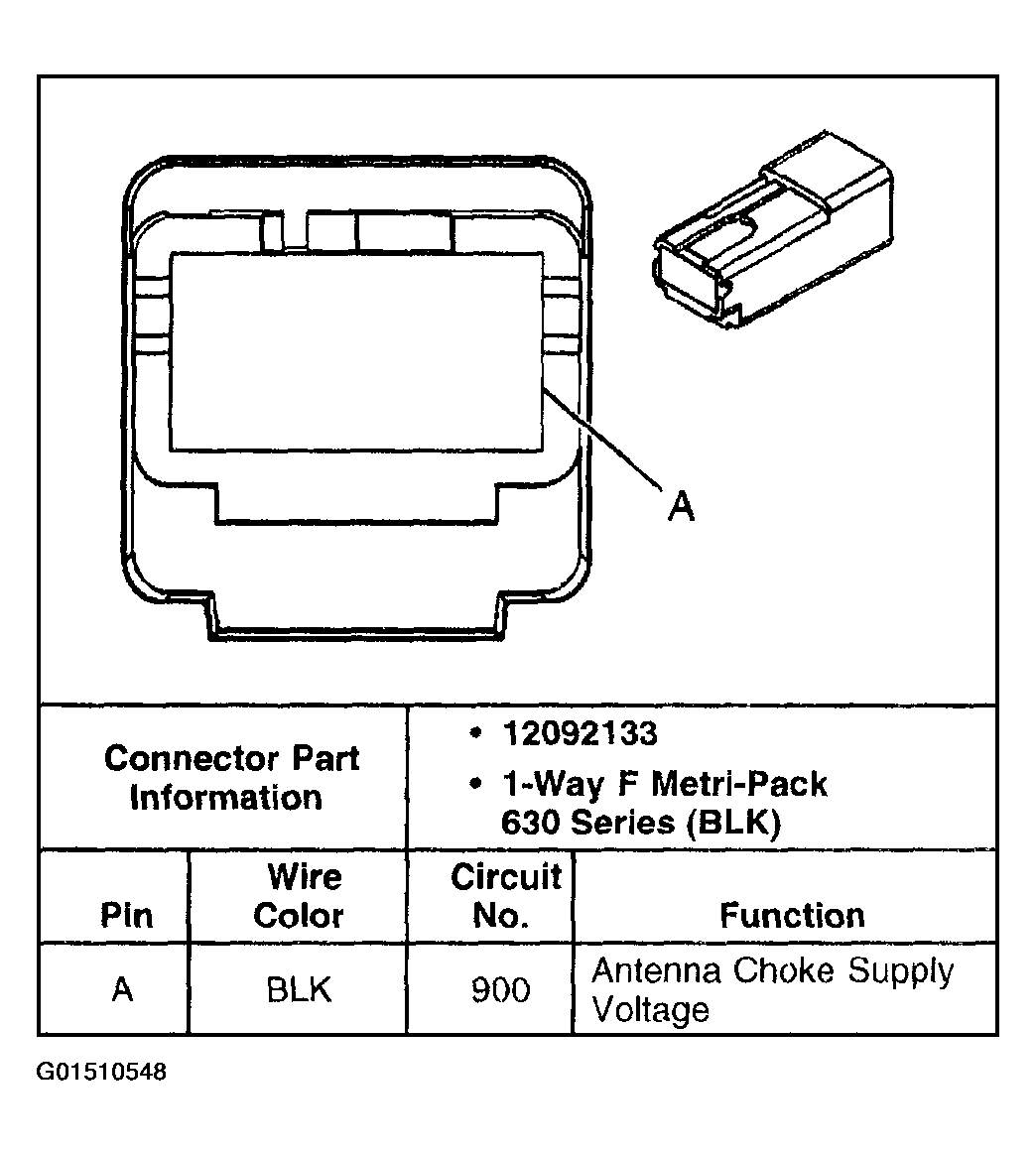

Fig 2: Identifying Connector Of Rear Window Defogger Grid, C2 - Pontiac

Courtesy of GENERAL MOTORS CORP.

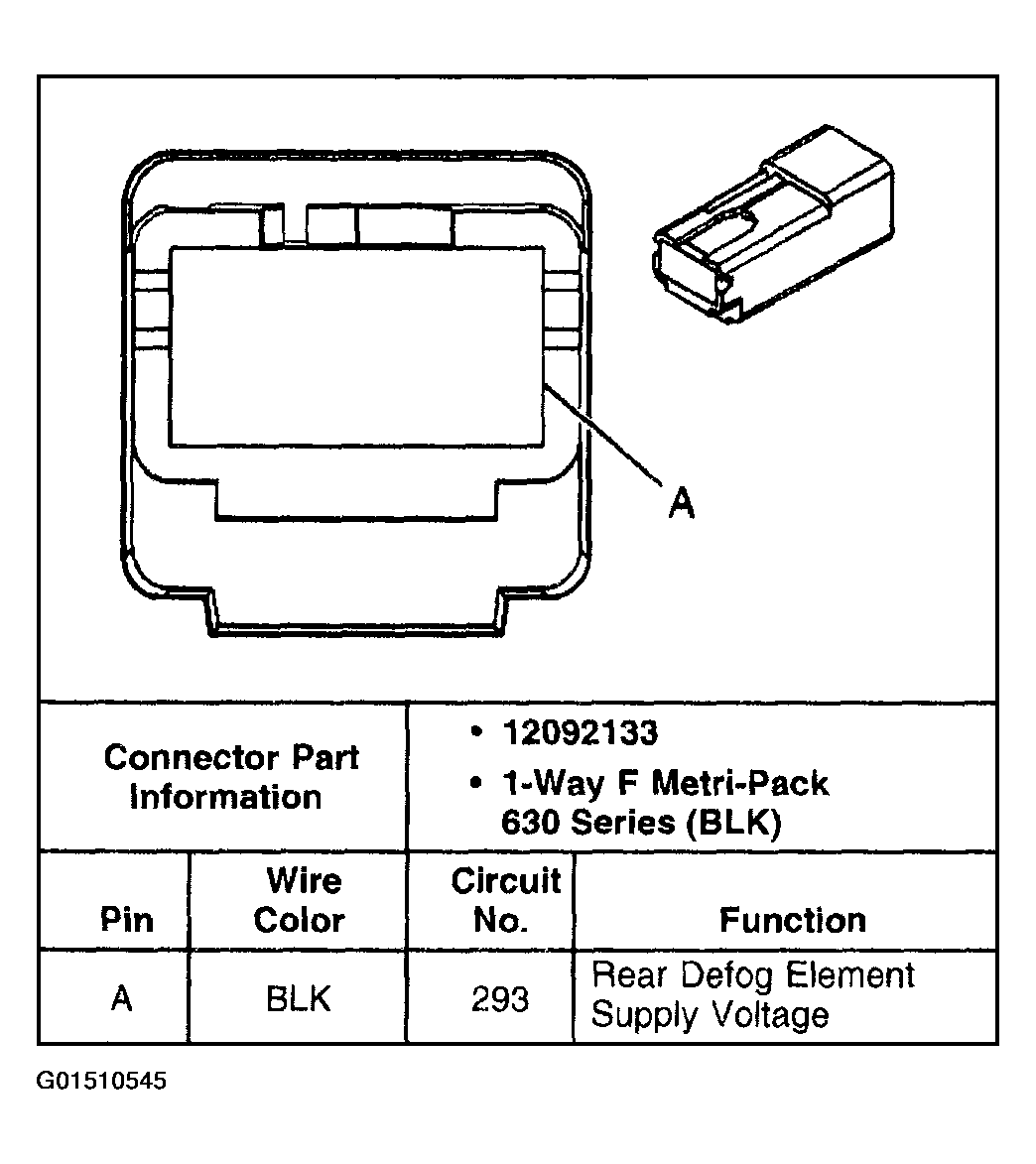

Fig 3: Identifying Connector Of Rear Window Defogger Grid, C2 - Oldsmobile

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Connector Of Rear Window Defogger Grid, C3 - Oldsmobile

Courtesy of GENERAL MOTORS CORP.
