Installation Procedure

  1. Install the rear window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS  .
  2. Connect the rear window defogger electrical connectors.

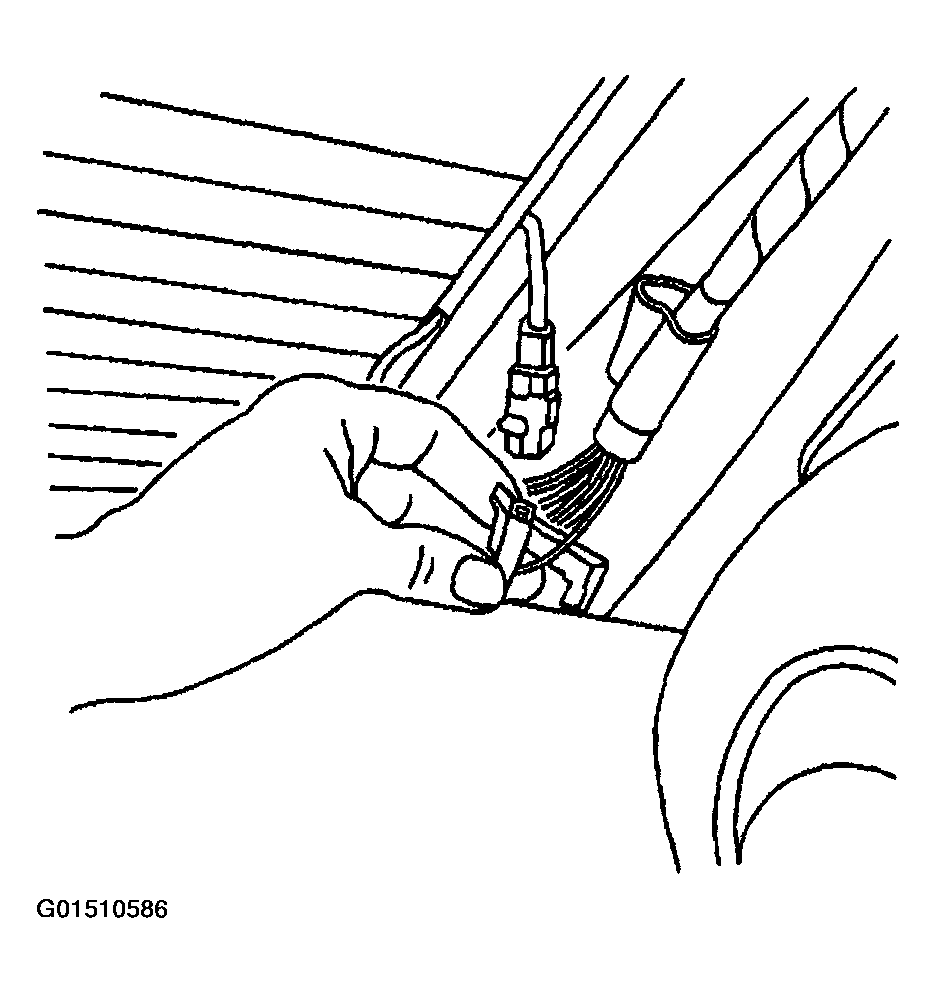

    Fig 1: Connecting Rear Window Defogger Electrical Connectors
    G01510586Courtesy of GENERAL MOTORS CORP.
  3. Install the rear window radio antenna connector.
  4. Close the rear compartment lid.
  5. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

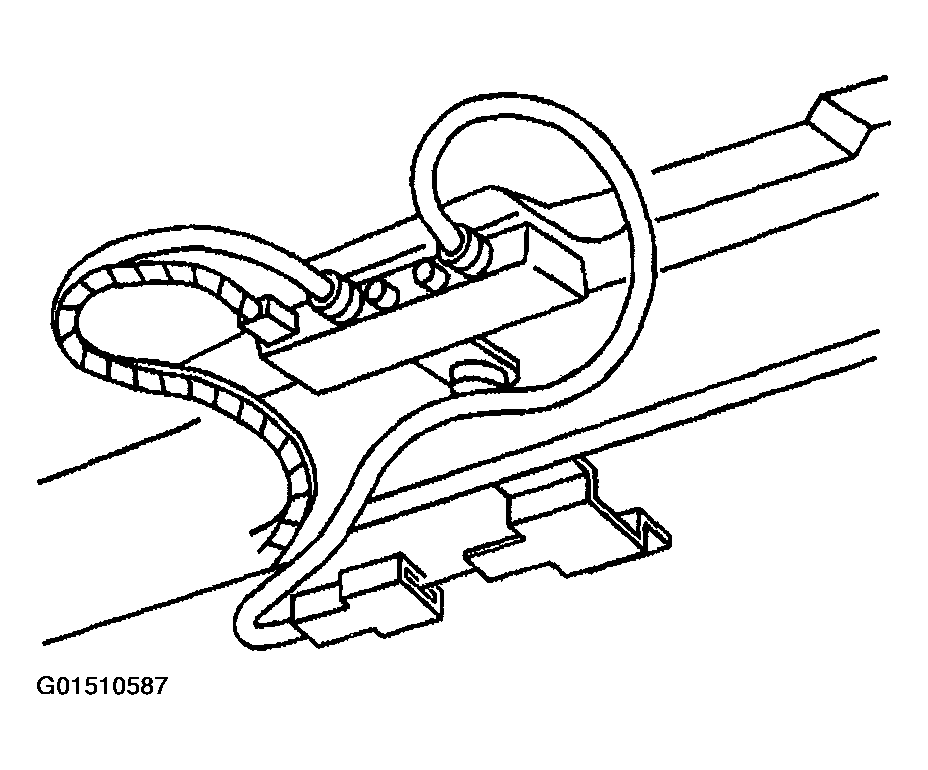

    Fig 2: Connecting Rear Window Radio Antenna Connector
    G01510587Courtesy of GENERAL MOTORS CORP.
