Body Control Module (BCM)

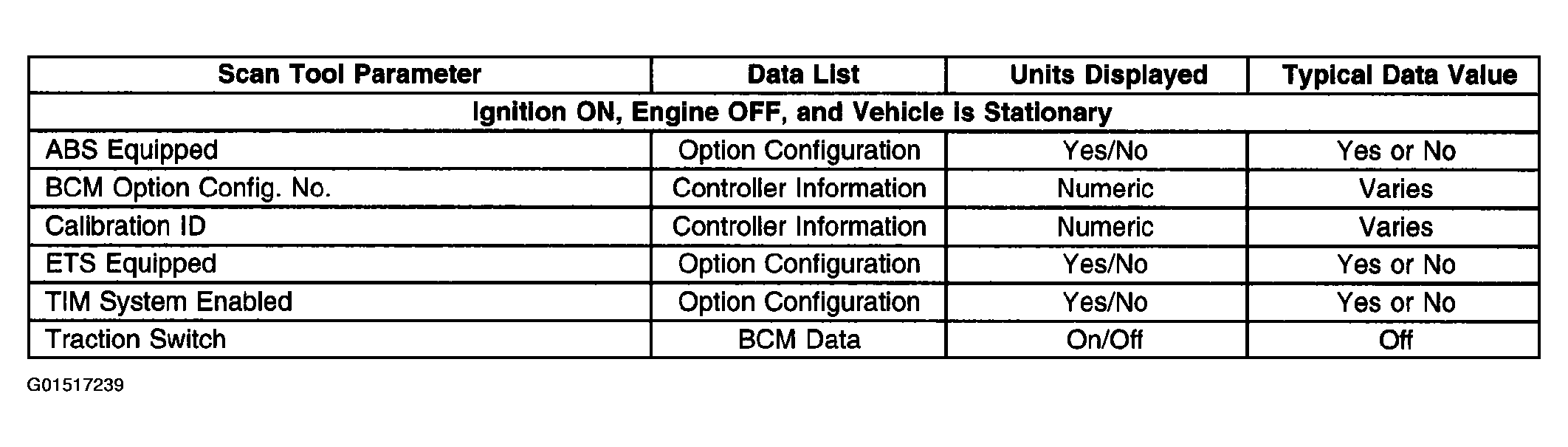

Fig 1: Body Control Module (BCM)

Courtesy of GENERAL MOTORS CORP.

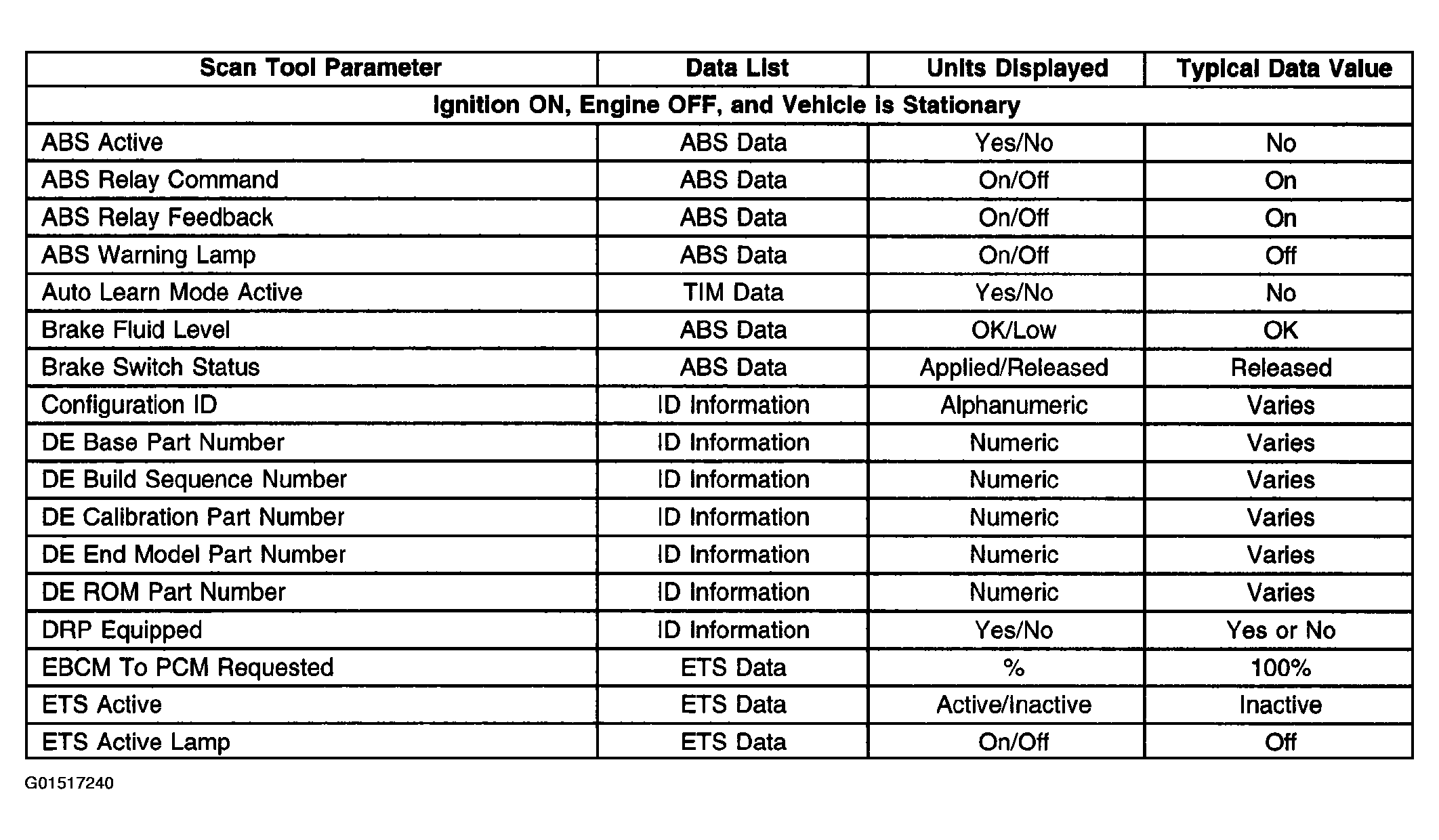

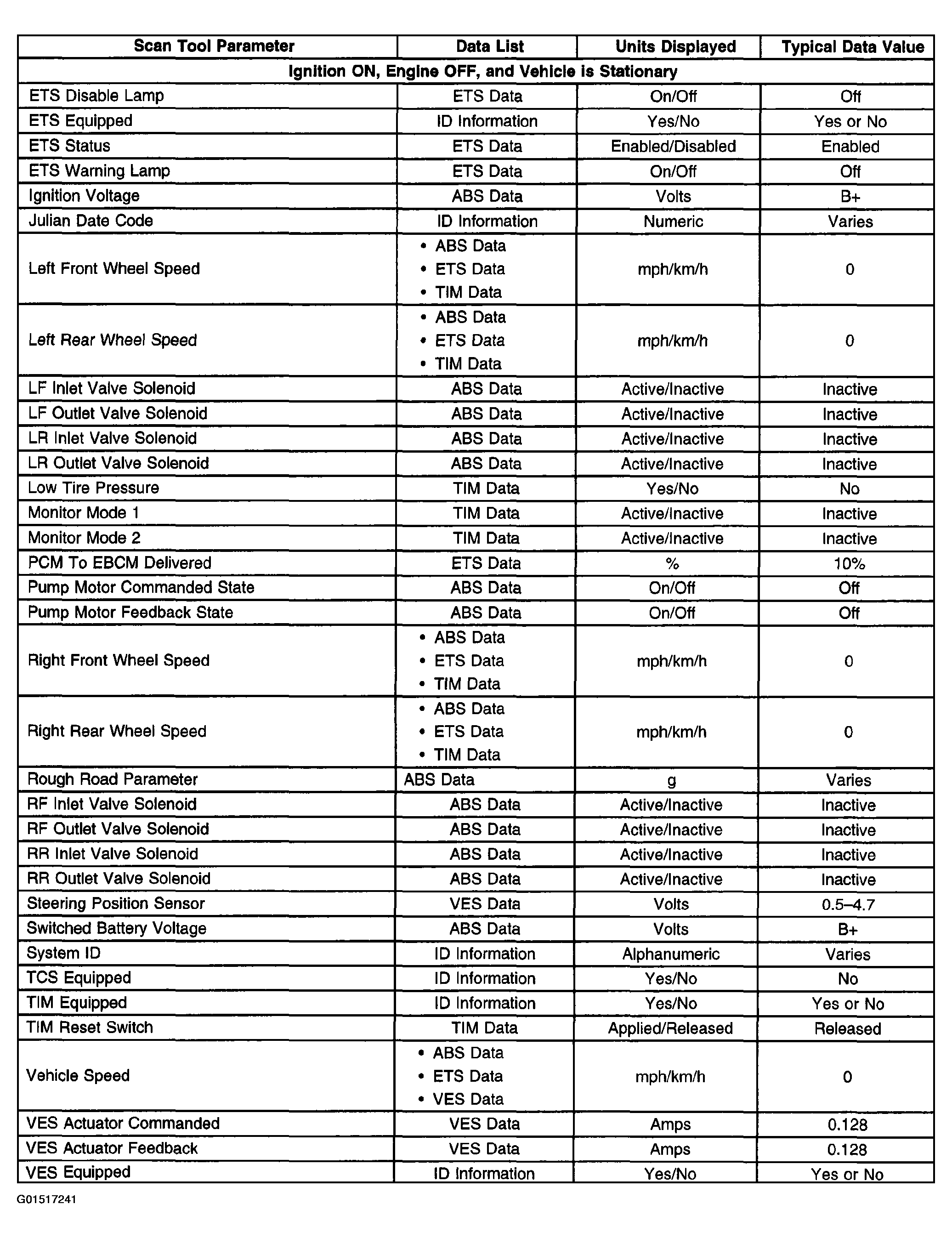

Fig 2: Electronic Brake Control Module (EBCM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

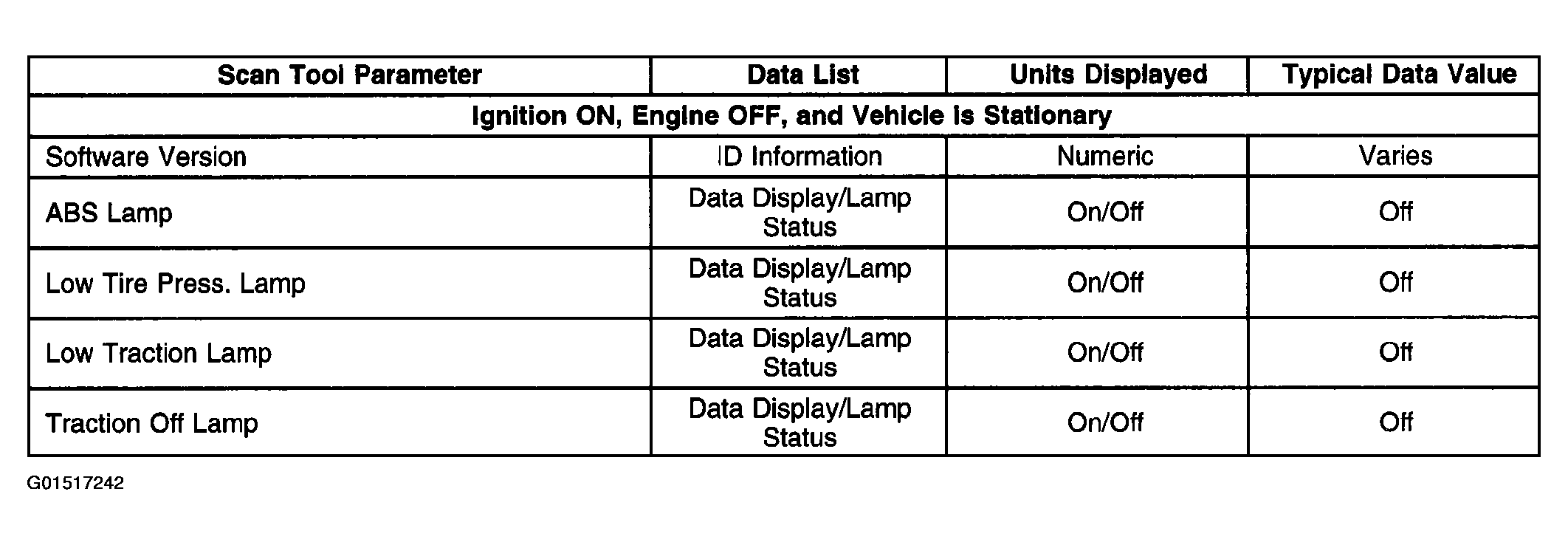

Fig 3: Electronic Brake Control Module (EBCM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

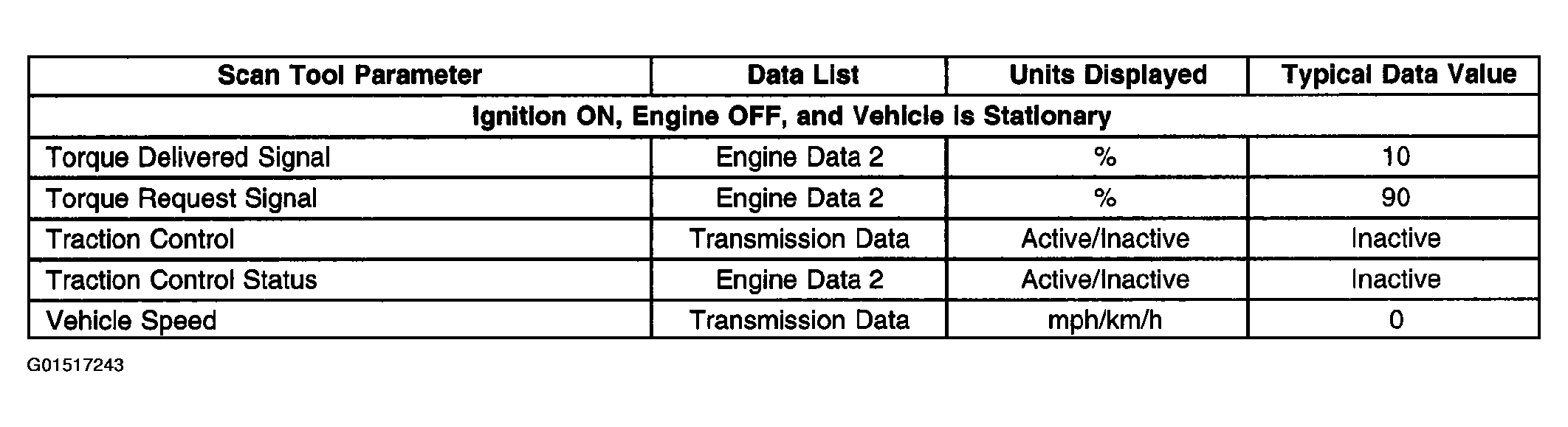

Fig 5: Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.
