Installation Procedure

  1. Install the traction control switch into front floor console trim plate by pressing into place until fully seated and retaining clips are fully engaged.
  2. Connect the traction control switch wiring harness connector to the traction control switch.
    Fig 1: Connecting Traction Control Switch Wiring Harness Connector To Traction Control Switch
    G01517293Courtesy of GENERAL MOTORS CORP.
  3. Align the front floor console trim plate to the front floor console and carefully press the retaining clips into the correct mounting holes in the front floor console.
  4. Close the front floor console cupholder.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the two screws that retain the front floor console trim plate to the front floor console.

    Tighten

    Tighten the two retaining screws to 2 N.m (18 lb in).

  6. Close the front floor center console armrest.
  7. Verify the repair. Refer to DIAGNOSTIC SYSTEM CHECK - ABS .

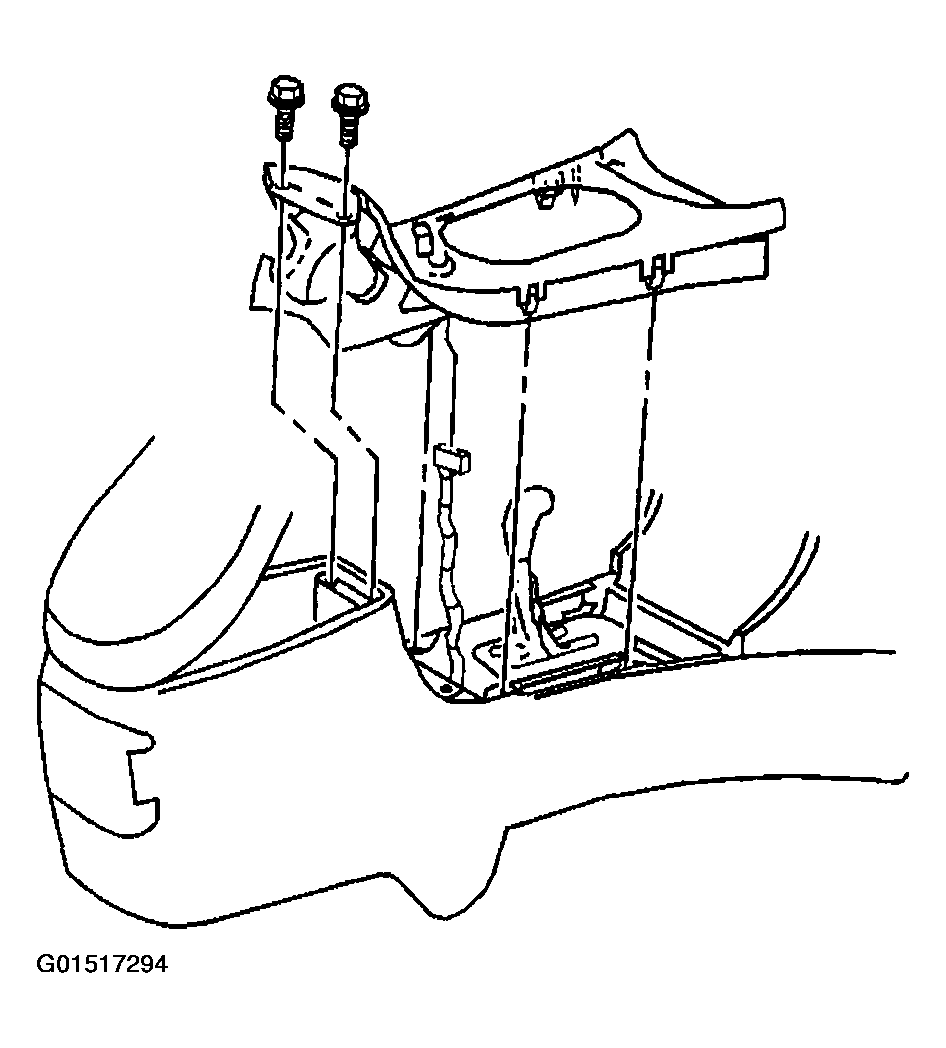

    Fig 2: Installing Screws That Retain Front Floor Console Trim Plate To Front Floor Console
    G01517294Courtesy of GENERAL MOTORS CORP.
