Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Compressor Clutch Diode | In underhood fuse block. |
| Fusible Links | At left side of engine, near starter. |
| Circuit Breaker (Power Seat) | In left I/P fuse block. |
| Circuit Breaker (Power Window) | In right I/P fuse block. |
| Left I/P Fuse Block | Behind left side of dash. |

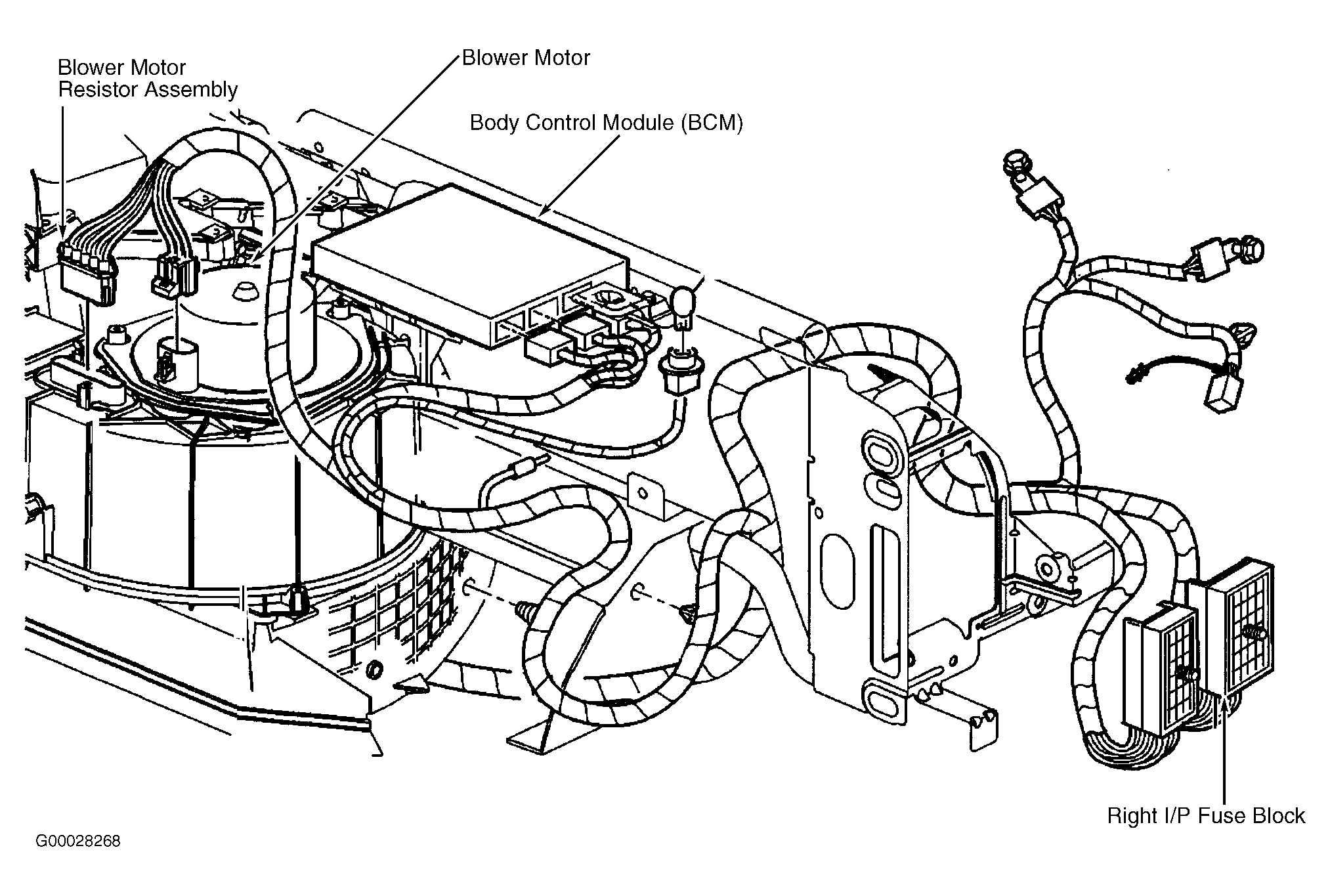

| Right I/P Fuse Block | Behind right side of dash. See Figure. |
| Underhood Fuse Block | In left rear side of engine compartment, on strut tower. |
