Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

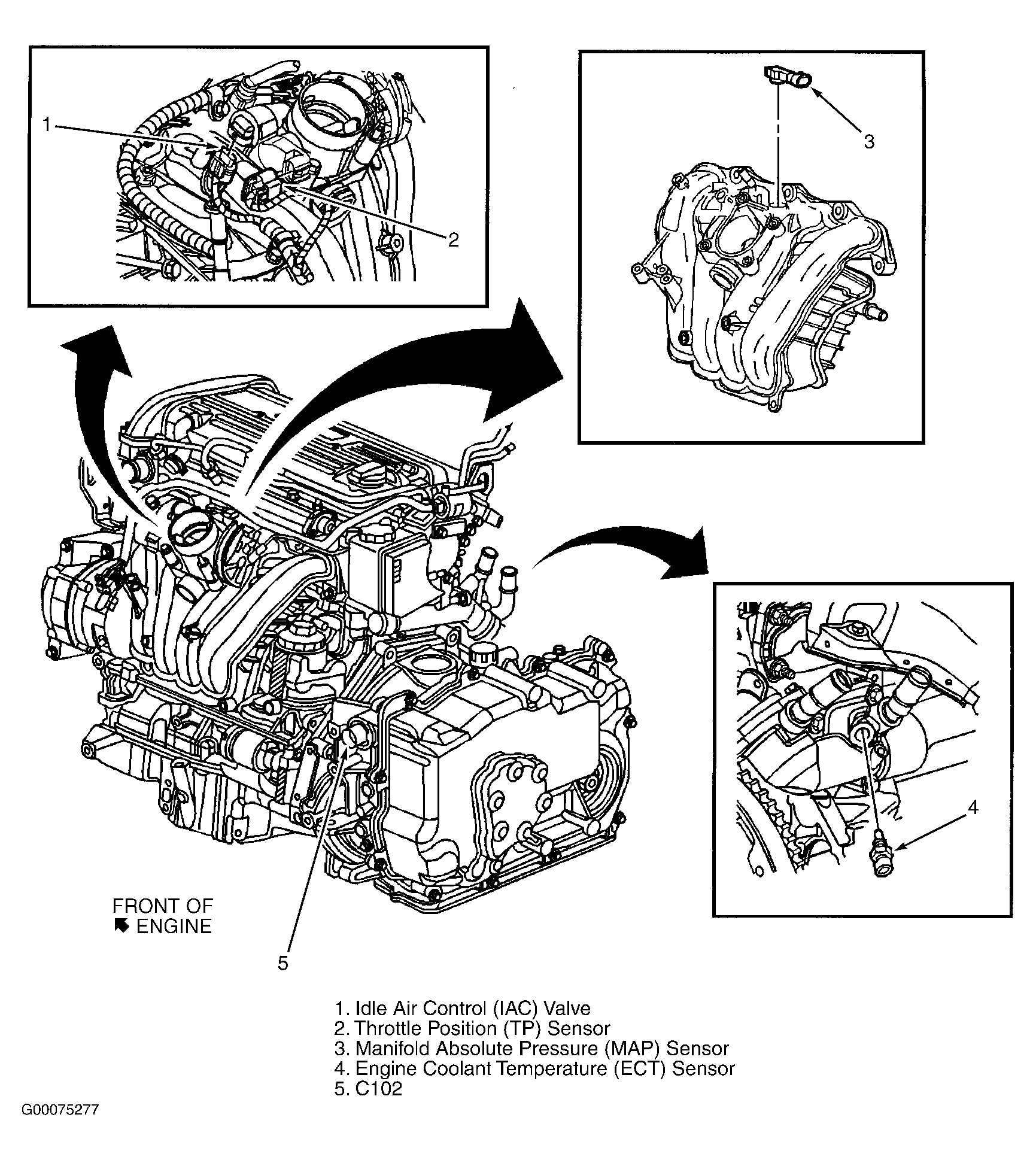

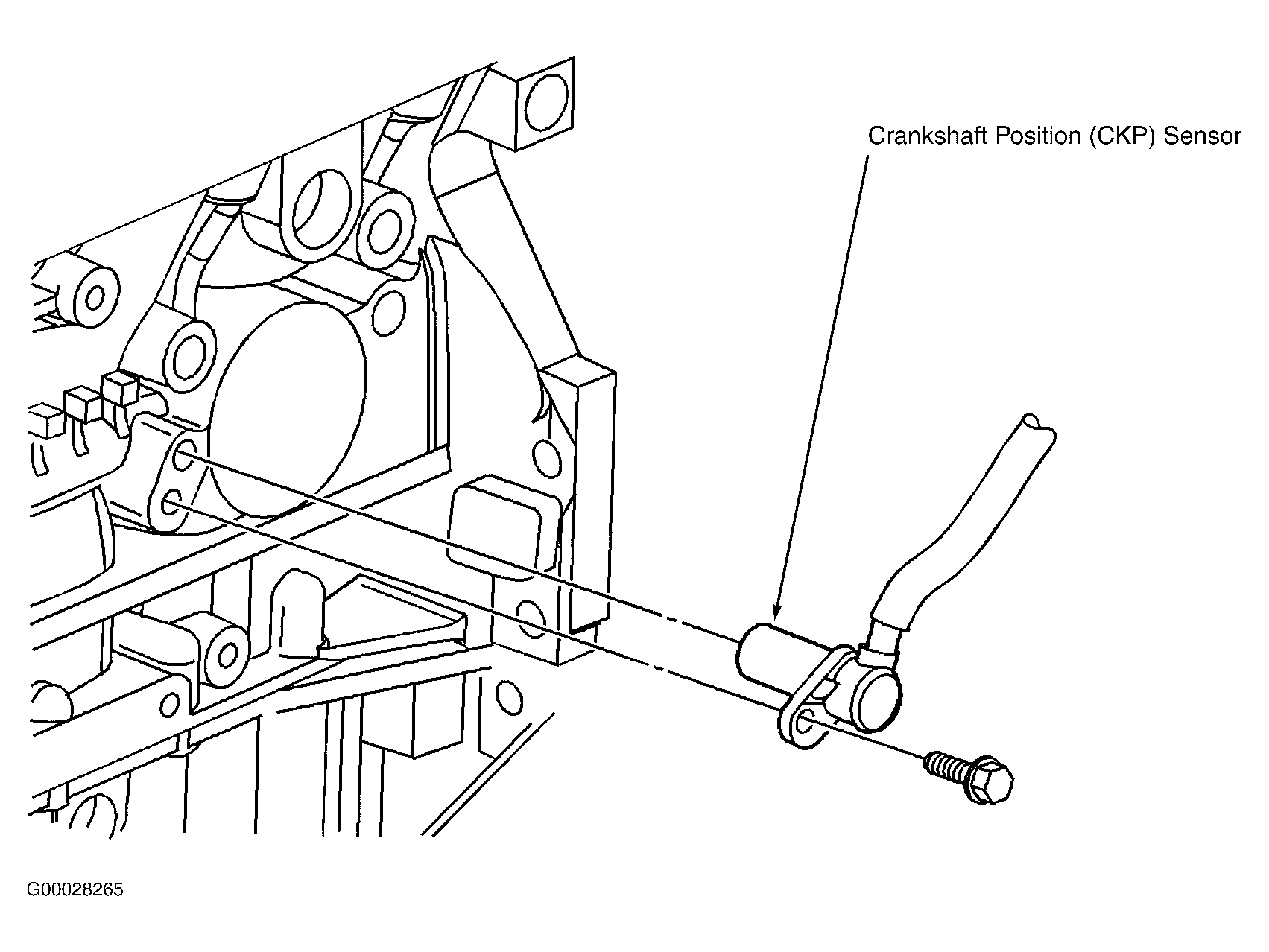

Fig 1: Left Side Of Engine (2.2L)

Courtesy of GENERAL MOTORS CORP.

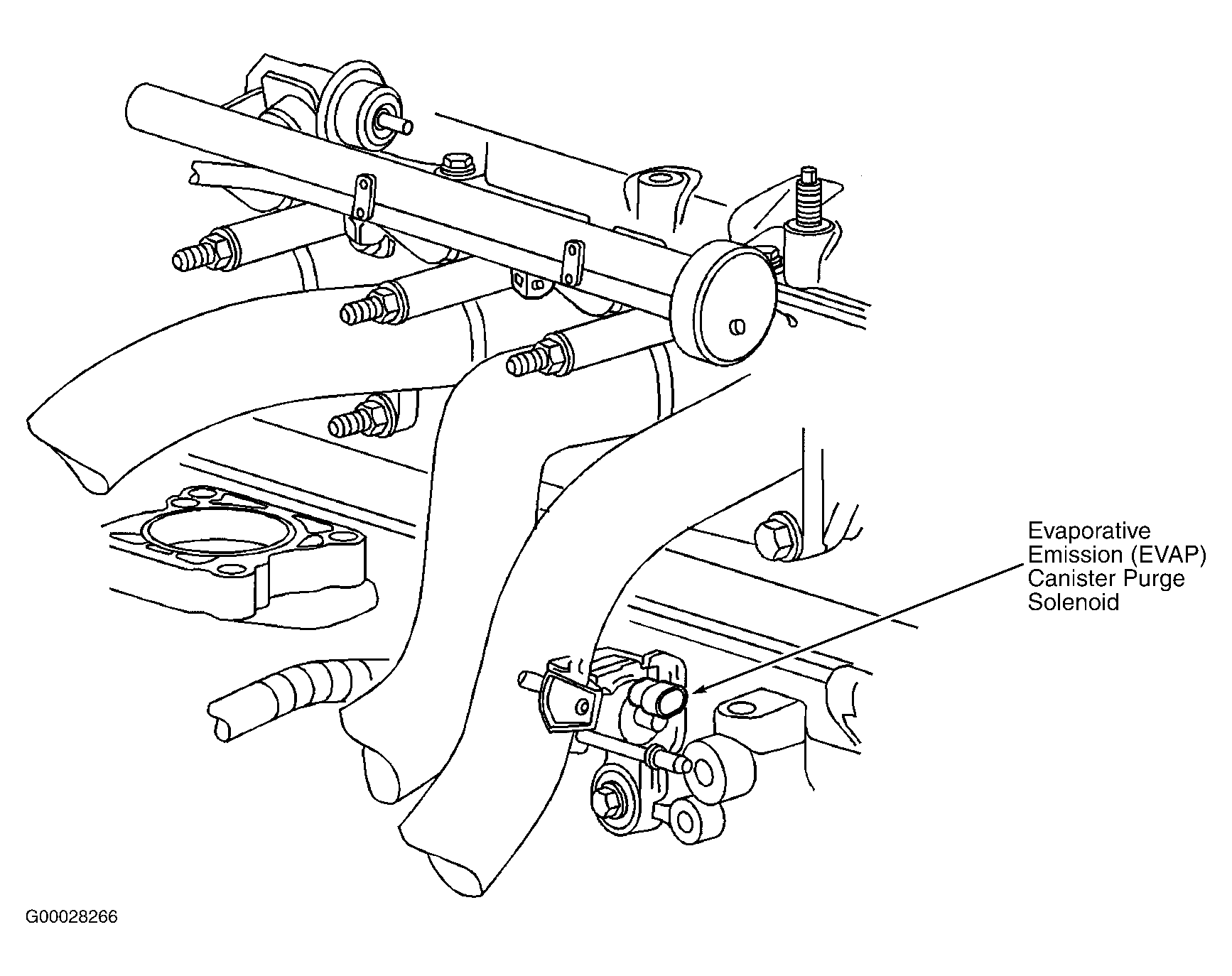

Fig 2: Left Side Of Engine (2.2L)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Right Side Of Engine (2.2L)

Courtesy of GENERAL MOTORS CORP.

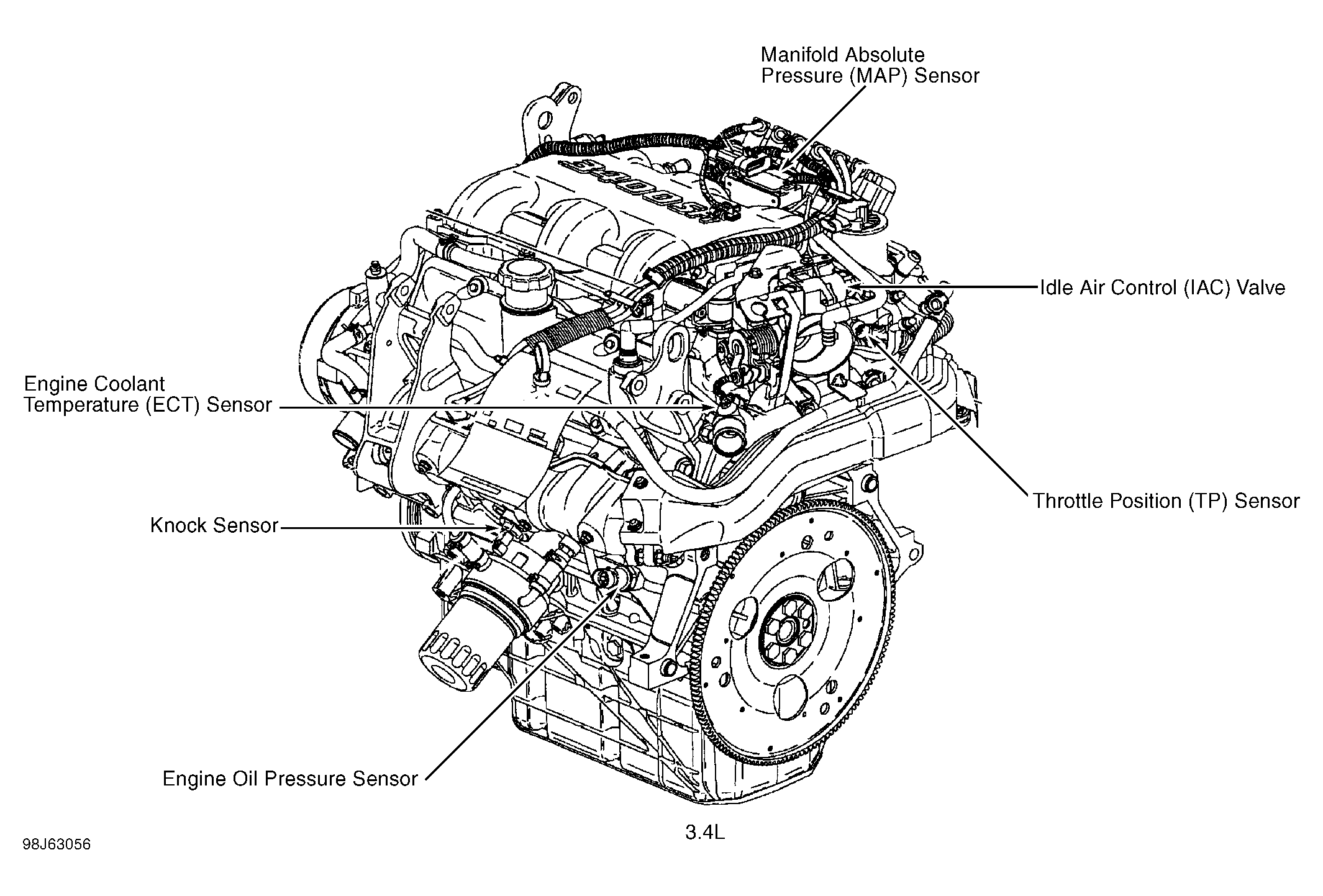

Fig 4: Right Front Of Engine (3.4L)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Left Rear Of Engine (3.4L)

Courtesy of GENERAL MOTORS CORP.

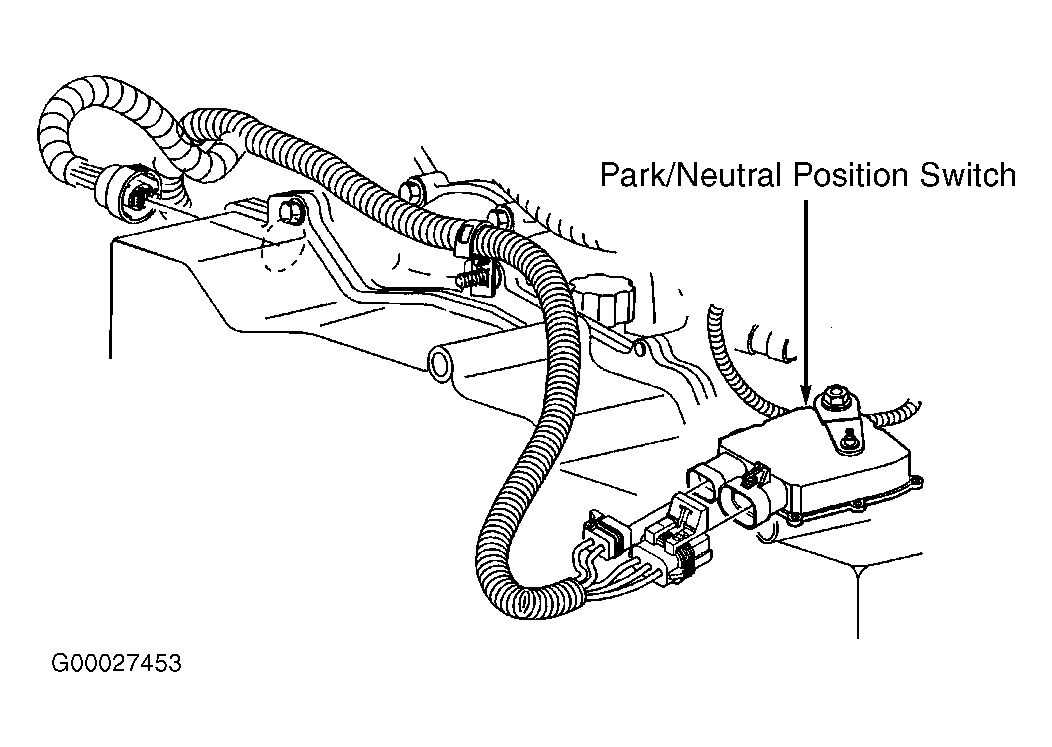

Fig 6: Rear Of Transaxle

Courtesy of GENERAL MOTORS CORP.

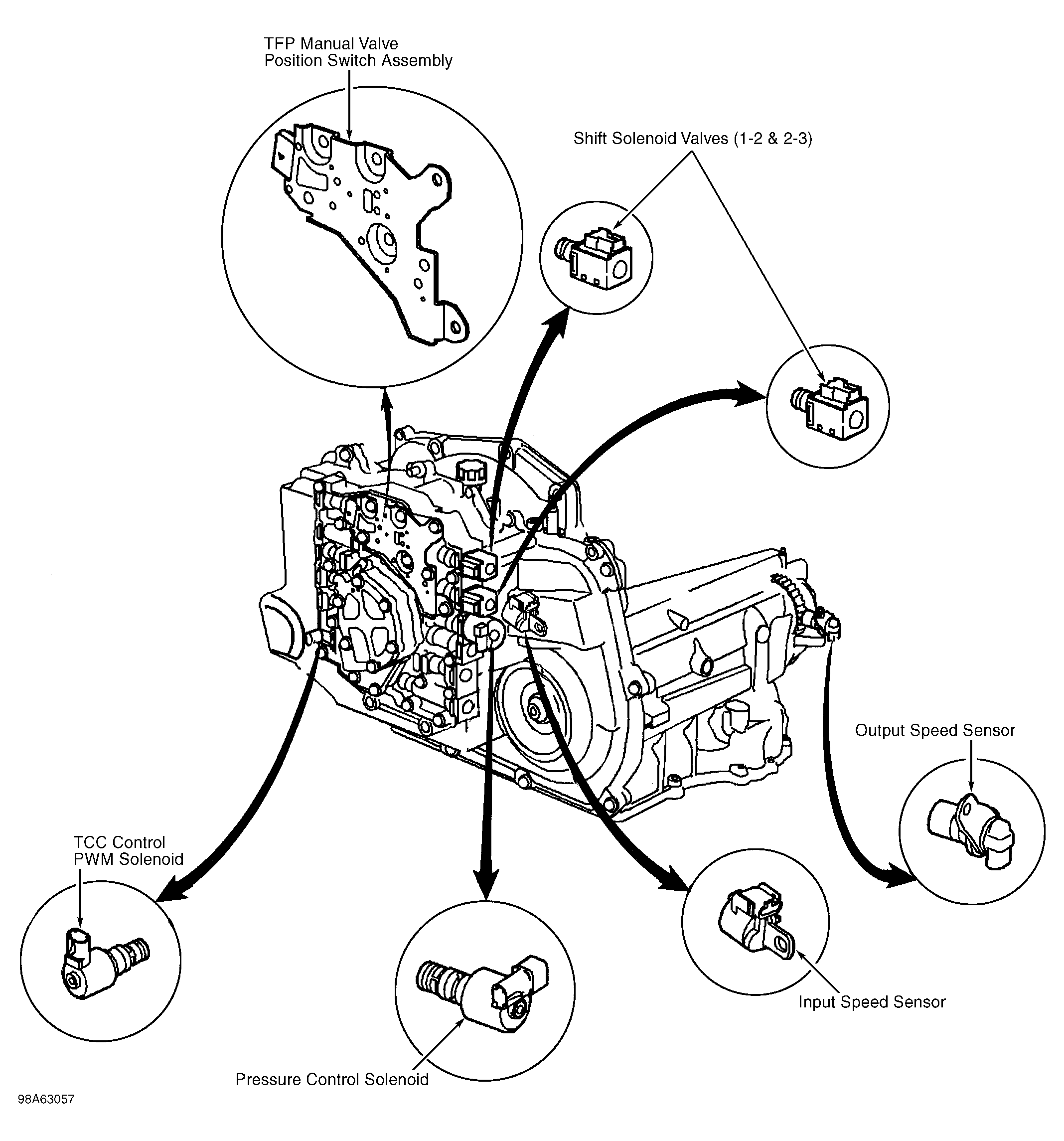

Fig 7: Transaxle

Courtesy of GENERAL MOTORS CORP.

Fig 8: Right Side Of Dash

Courtesy of GENERAL MOTORS CORP.

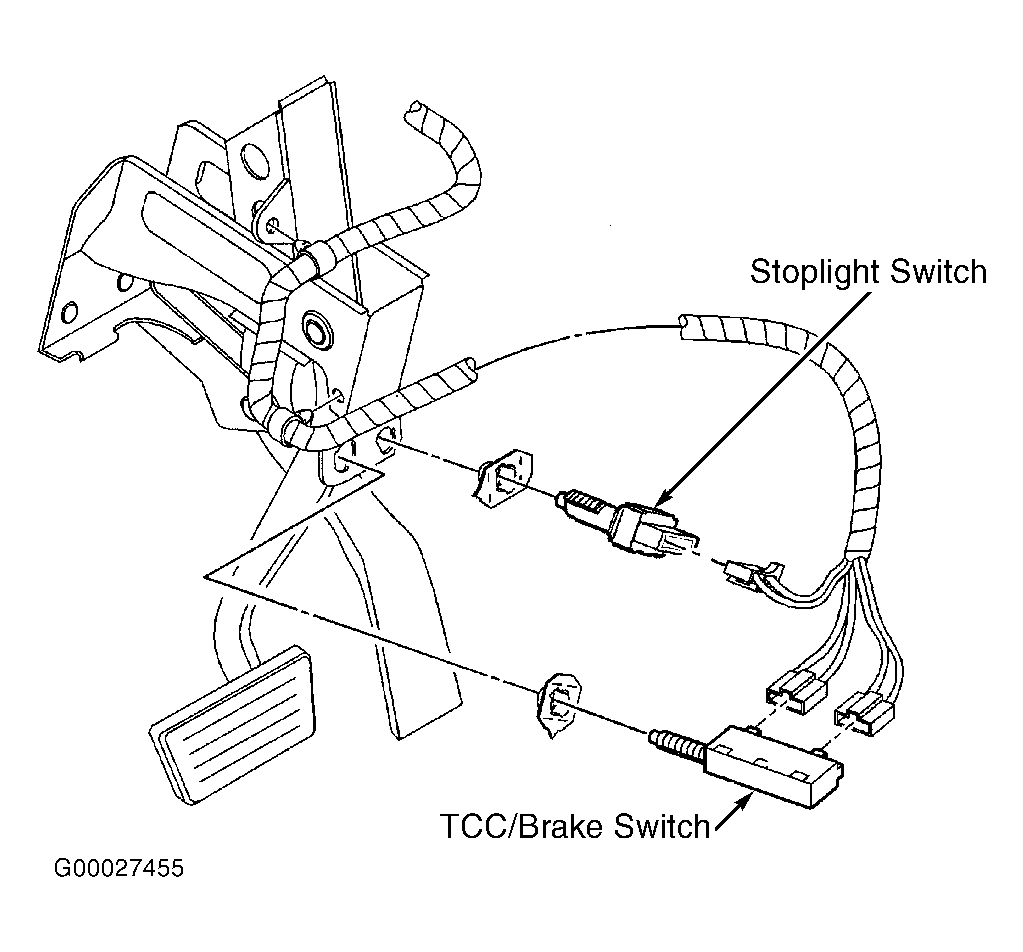

Fig 9: Left Side Of Dash

Courtesy of GENERAL MOTORS CORP.

Fig 10: Left Side Of Dash

Courtesy of GENERAL MOTORS CORP.

Fig 11: Vehicle Body

Courtesy of GENERAL MOTORS CORP.

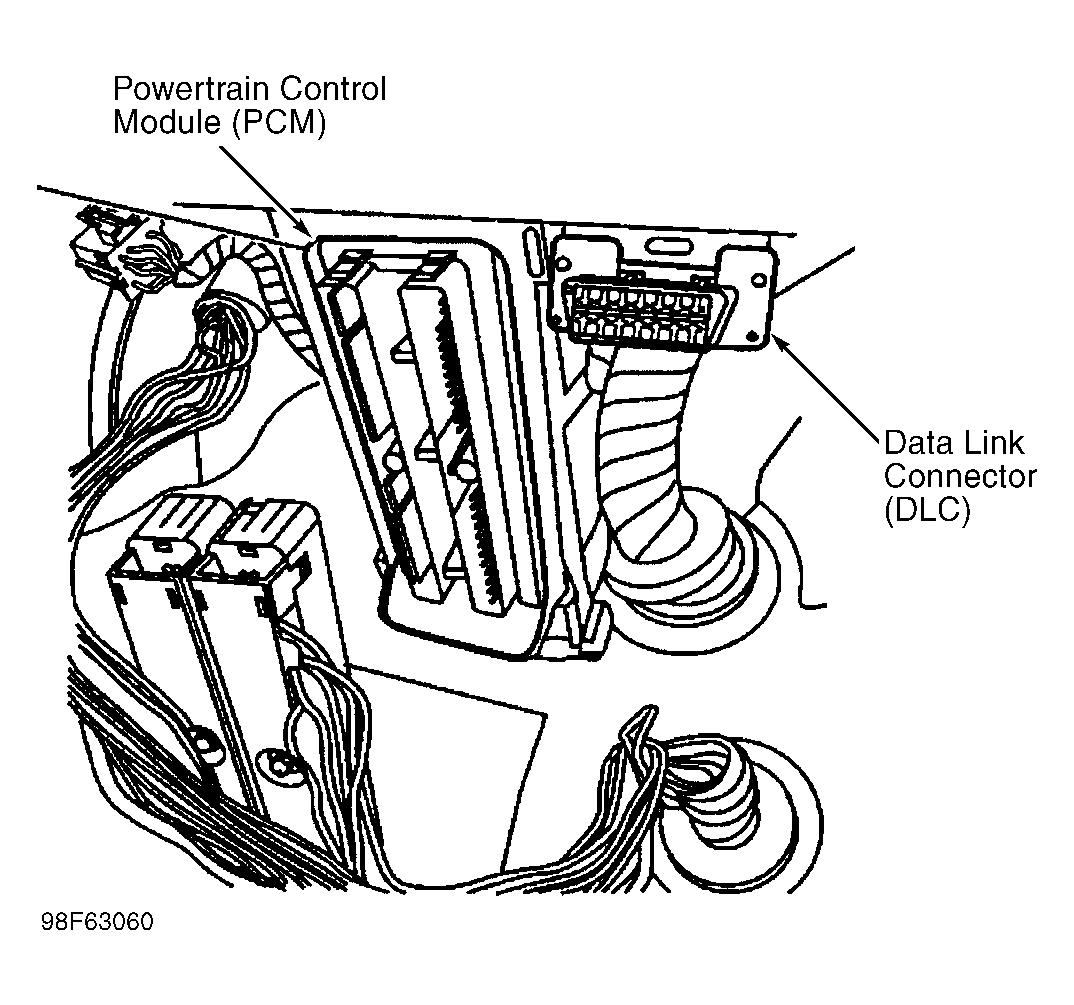

Fig 12: Locating PCM (Alero & Grand Am)

Courtesy of GENERAL MOTORS CORP.
