Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Antenna Amplifier Module | At left "C" pillar. |
| Body Control Module (BCM) | Behind right side of dash. See Figure. |
| Cruise Control Module | In right side of engine compartment. |

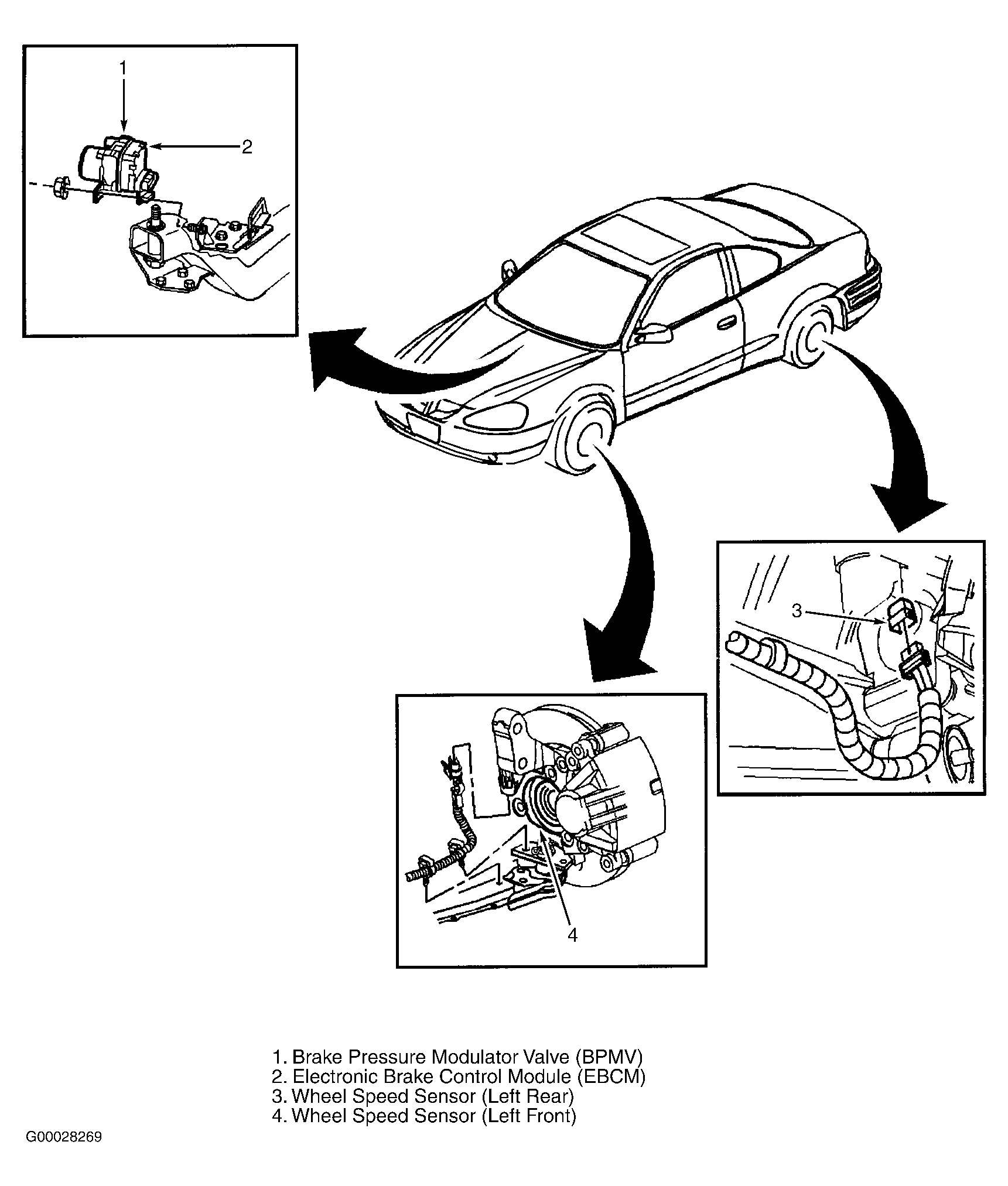

| Electronic Brake Control Module (EBCM) | Inside left front fender. See Figure. |
| Ignition Control Module (ICM) (2.2L) | On top rear of engine. |

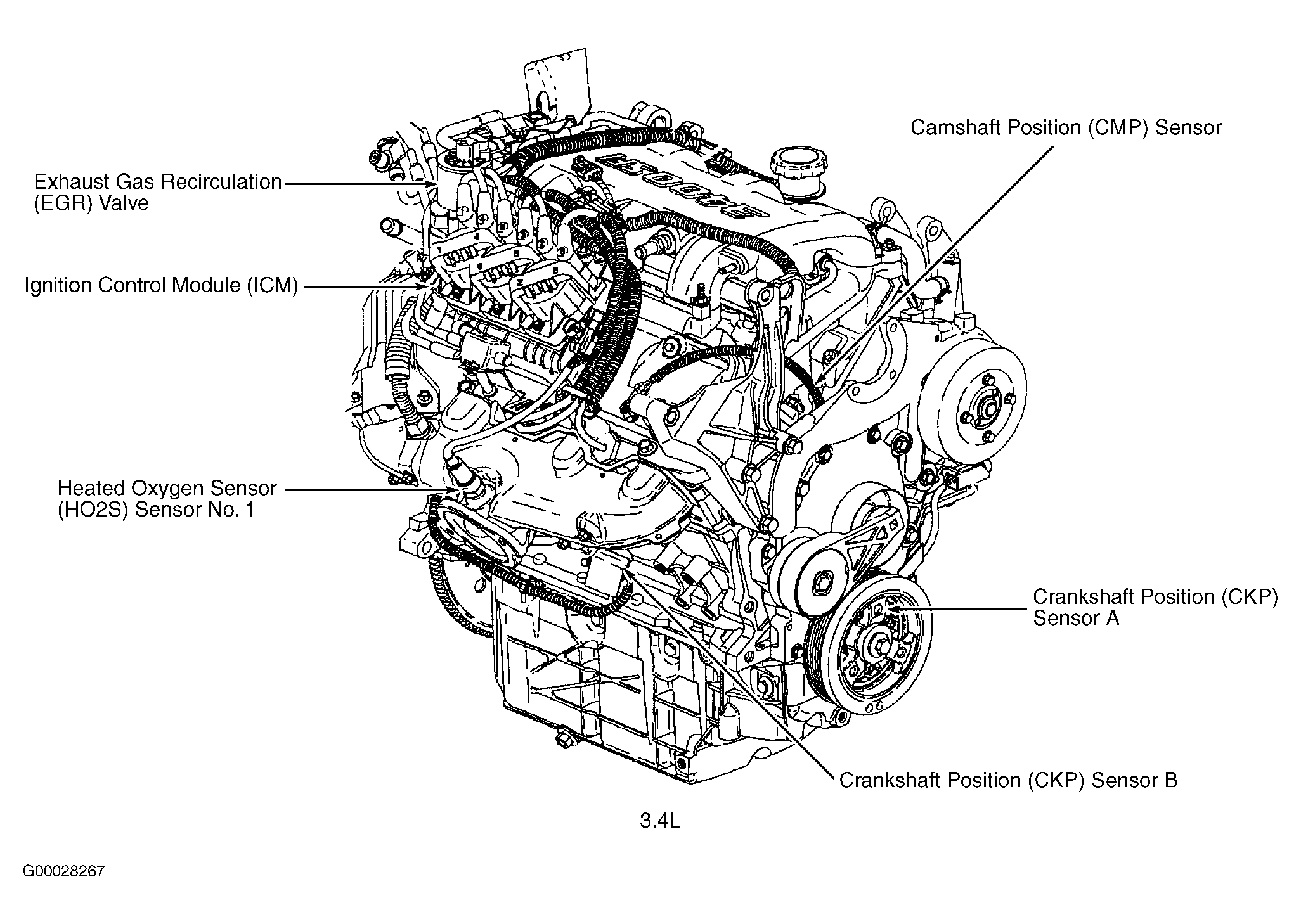

| Ignition Control Module (ICM) (3.4L) | Top right rear of engine. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under right front seat, below carpet. |
| I/P Dimming Module | Behind left side of dash. |
| Powertrain Control Module (PCM) | Below left side of dash. See Figure. |
| Sun Roof Module | Above roof headliner, integral to sun roof assembly. |
