Component Locations
Component Locations

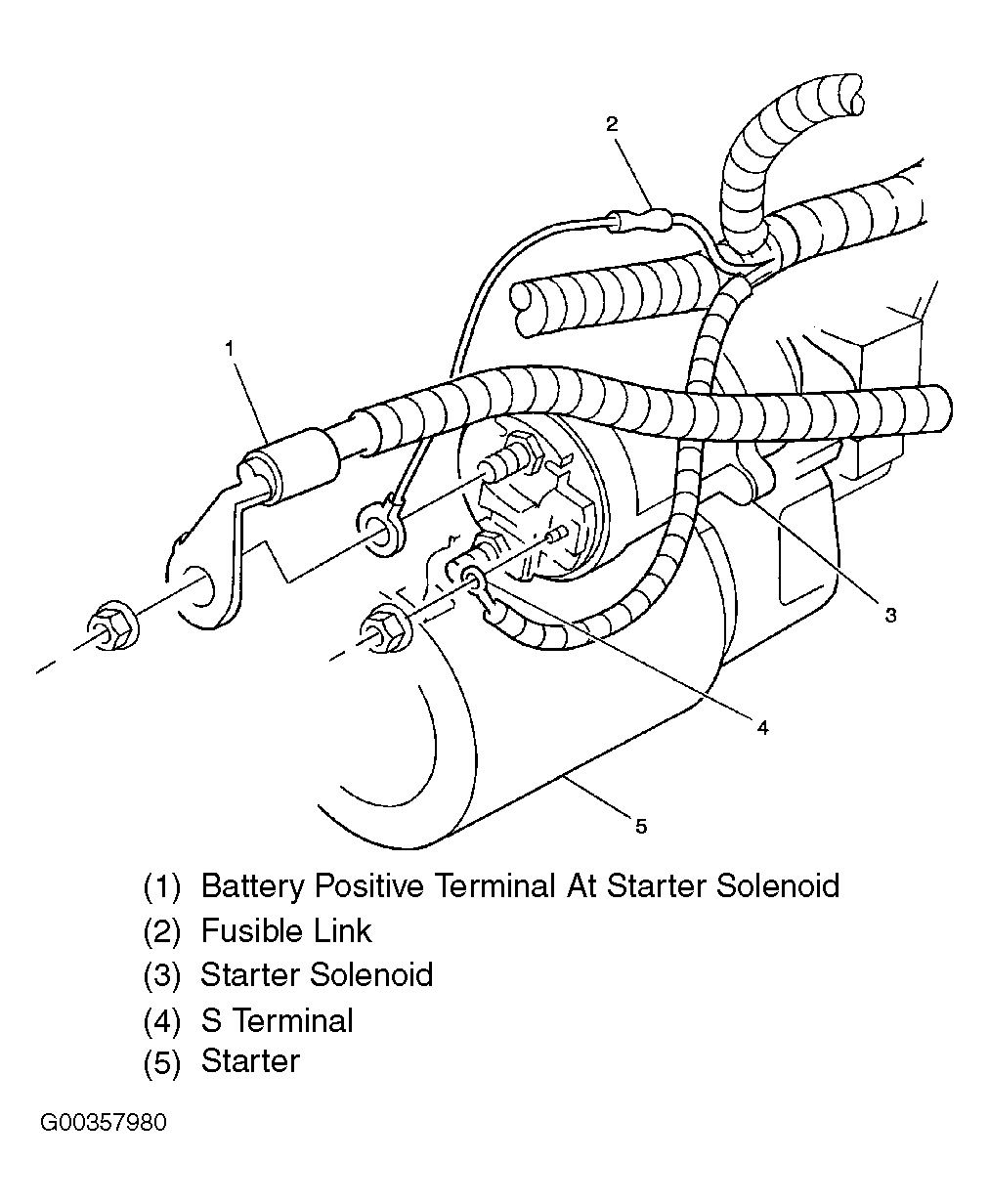

Fig 1: Identifying Starter Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
