HVAC Control Module, C1 Connector End View

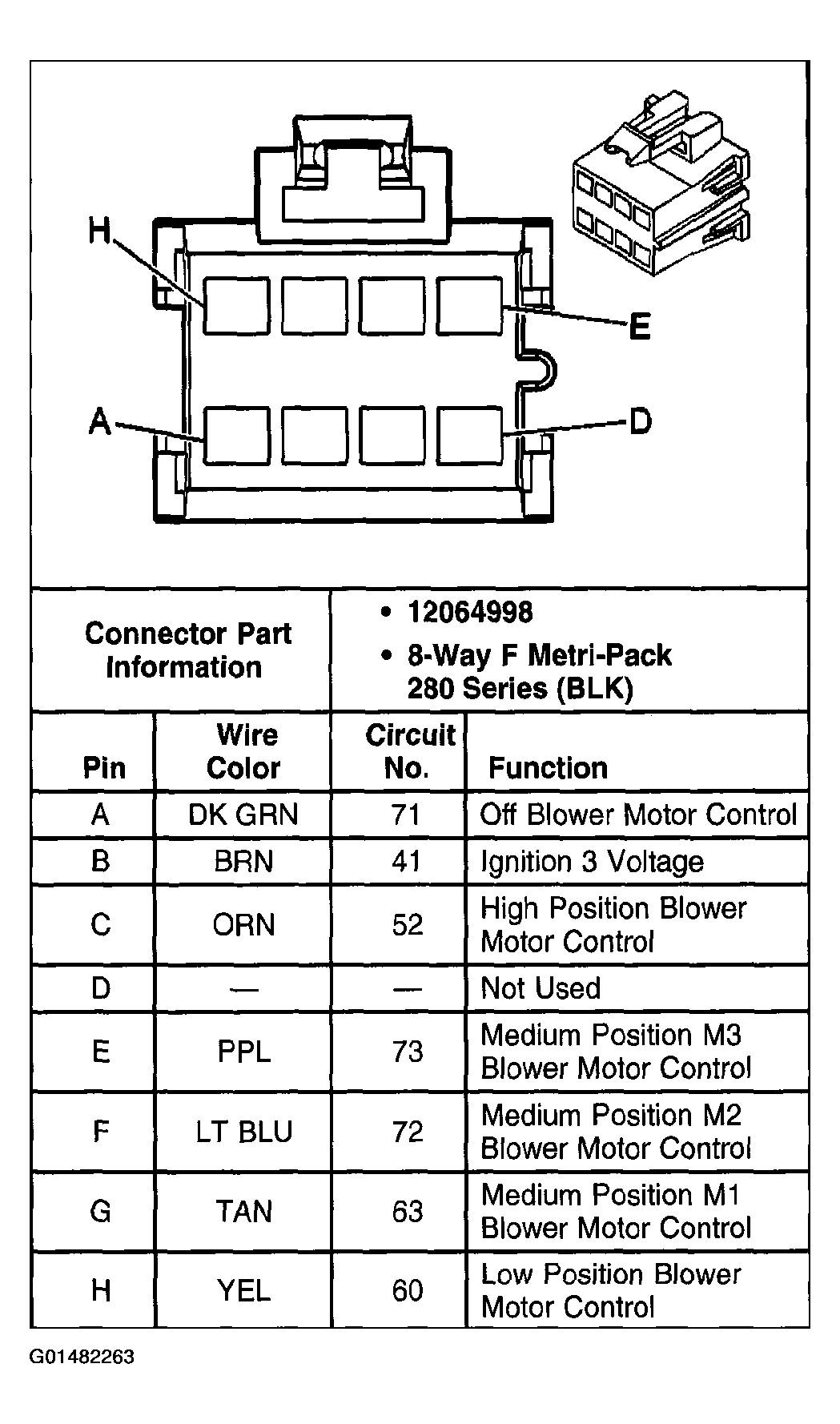

Fig 1: HVAC Control Module, C1 Connector End View
G01482263Courtesy of GENERAL MOTORS CORP.
