HVAC Control Module, C2 Connector End View (2 Of 2)

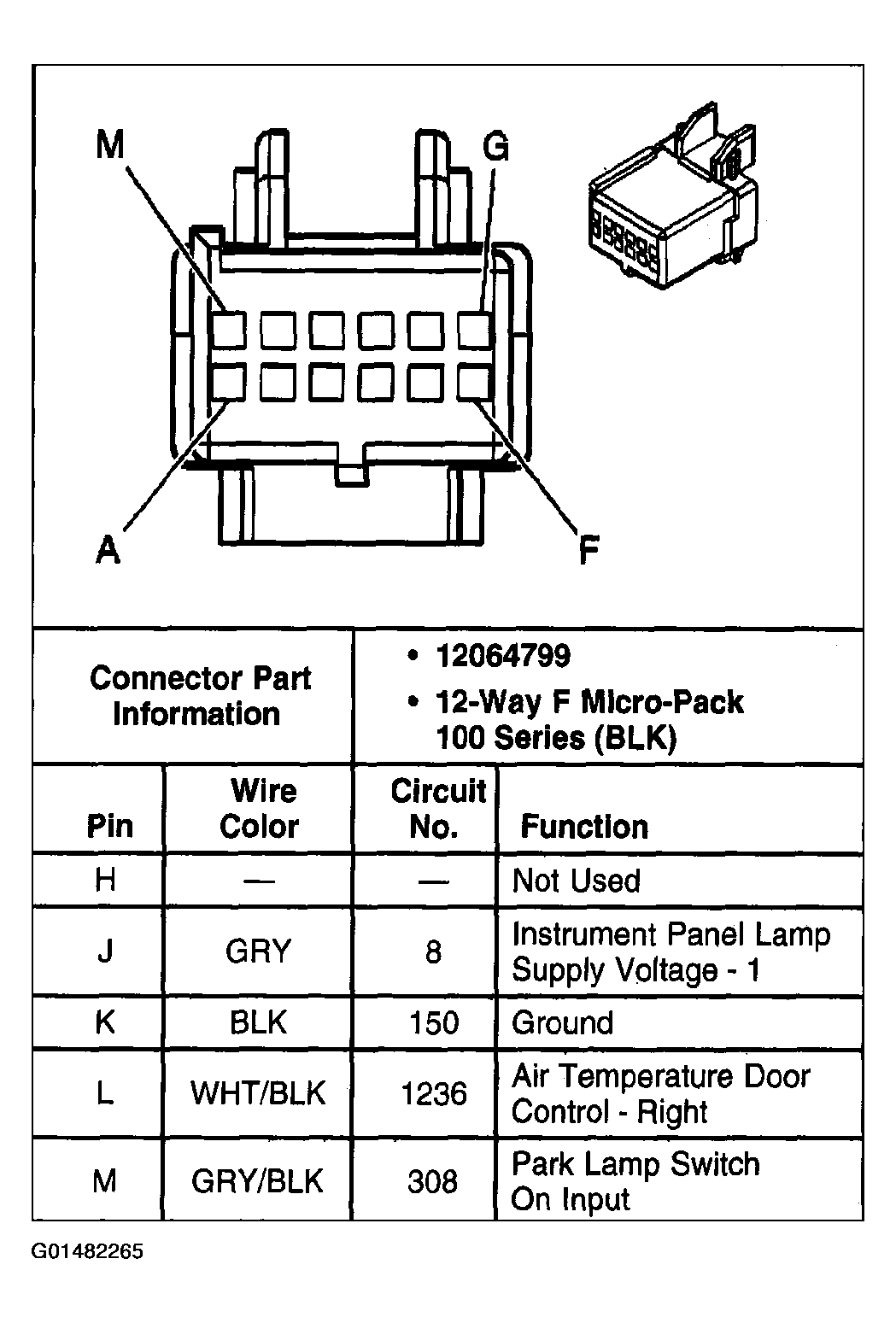

Fig 1: HVAC Control Module, C2 Connector End View (2 Of 2)
G01482265Courtesy of GENERAL MOTORS CORP.
