Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

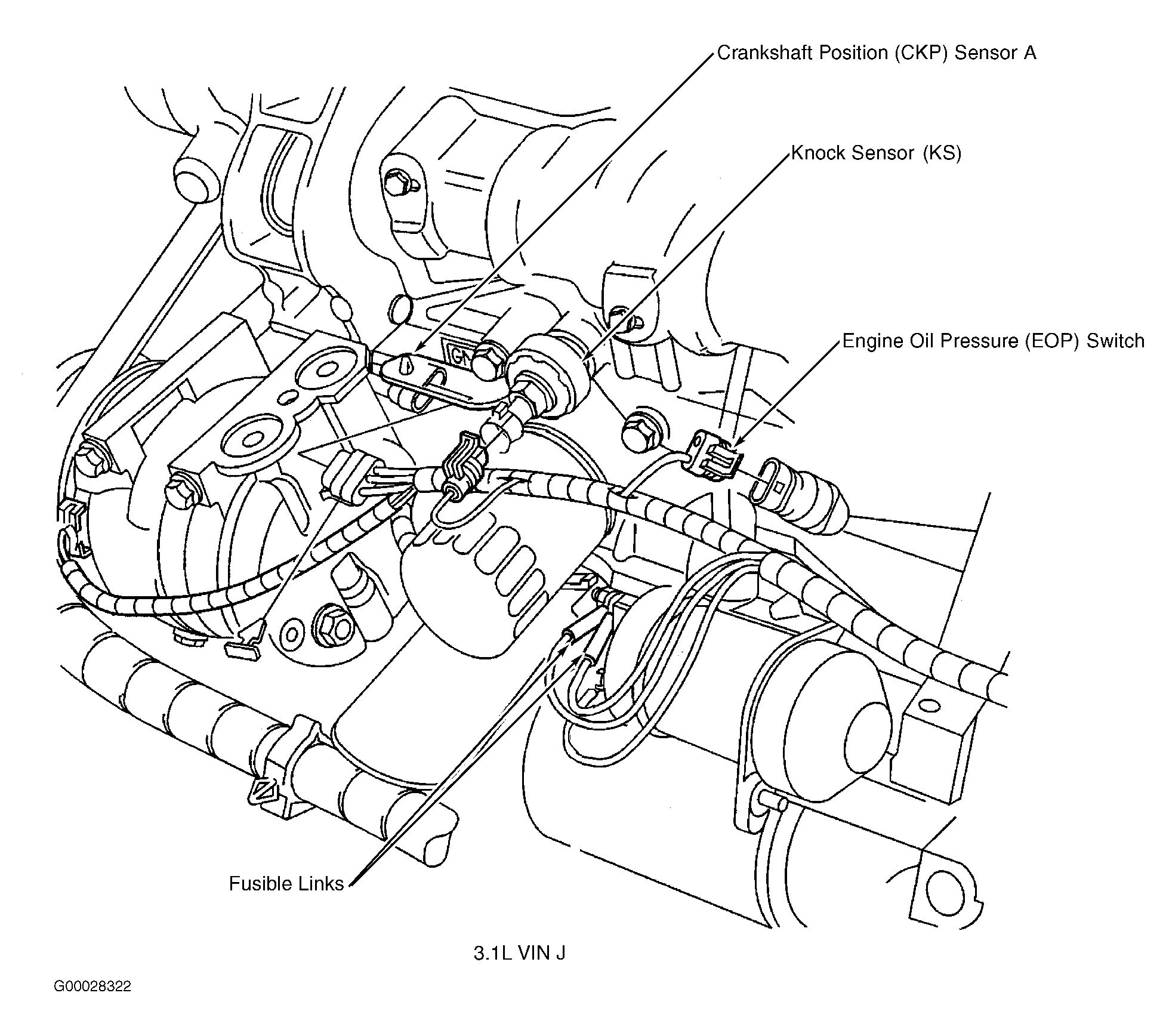

| Fusible Links (3.1L VIN J) | Left side of engine, on starter assembly. See Figure . |
| Fusible Links (3.8L VIN K) | Left side of engine, on starter assembly. |
| Fusible Links (3.8L VIN 1) | Left side of engine, on starter assembly. |

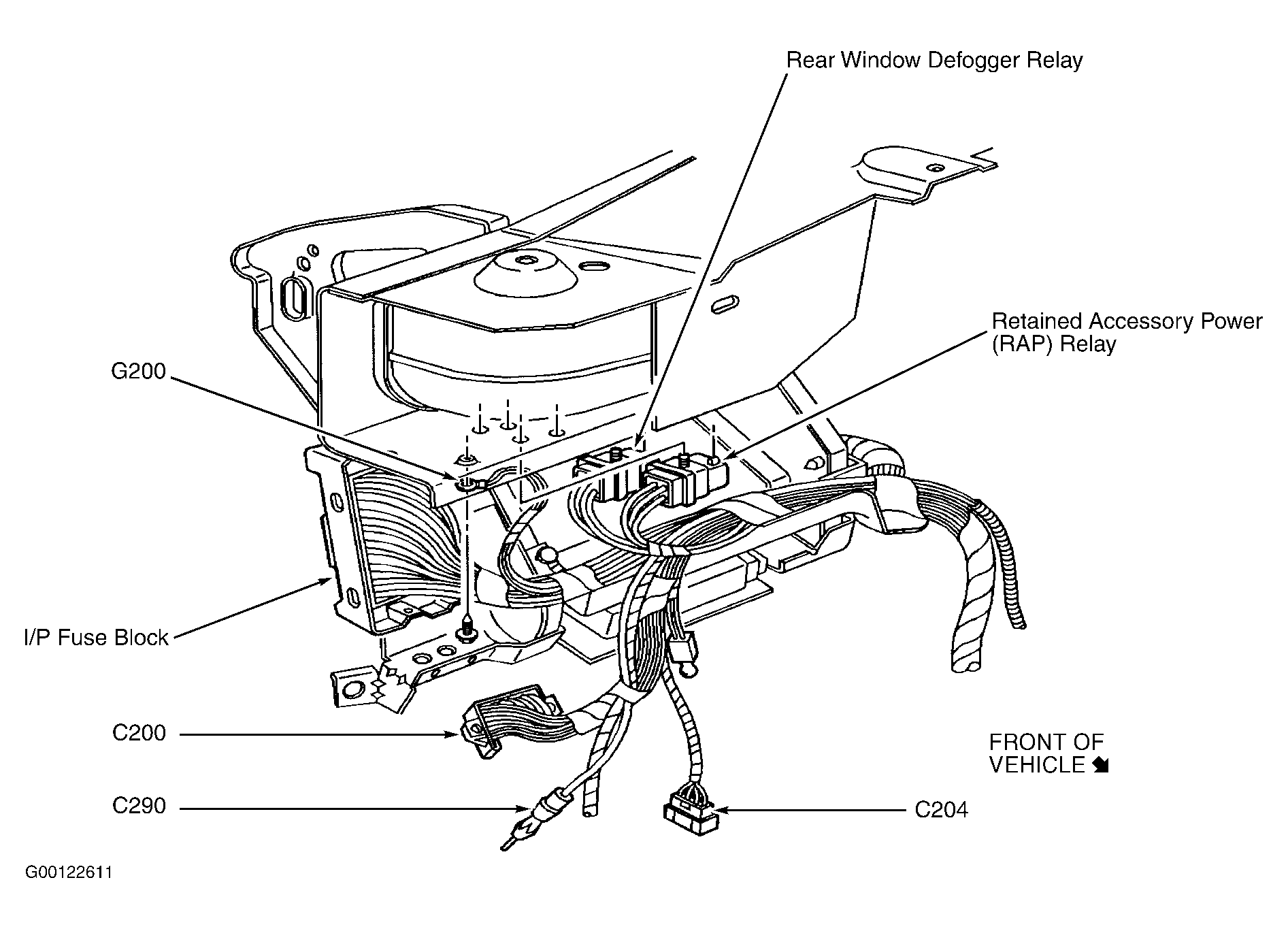

| I/P Fuse Block | Behind right side of dash, in glove box opening. See Figure . |
| Underhood Fuse Block | Mounted to right strut tower. |
