Horns Connector End Views

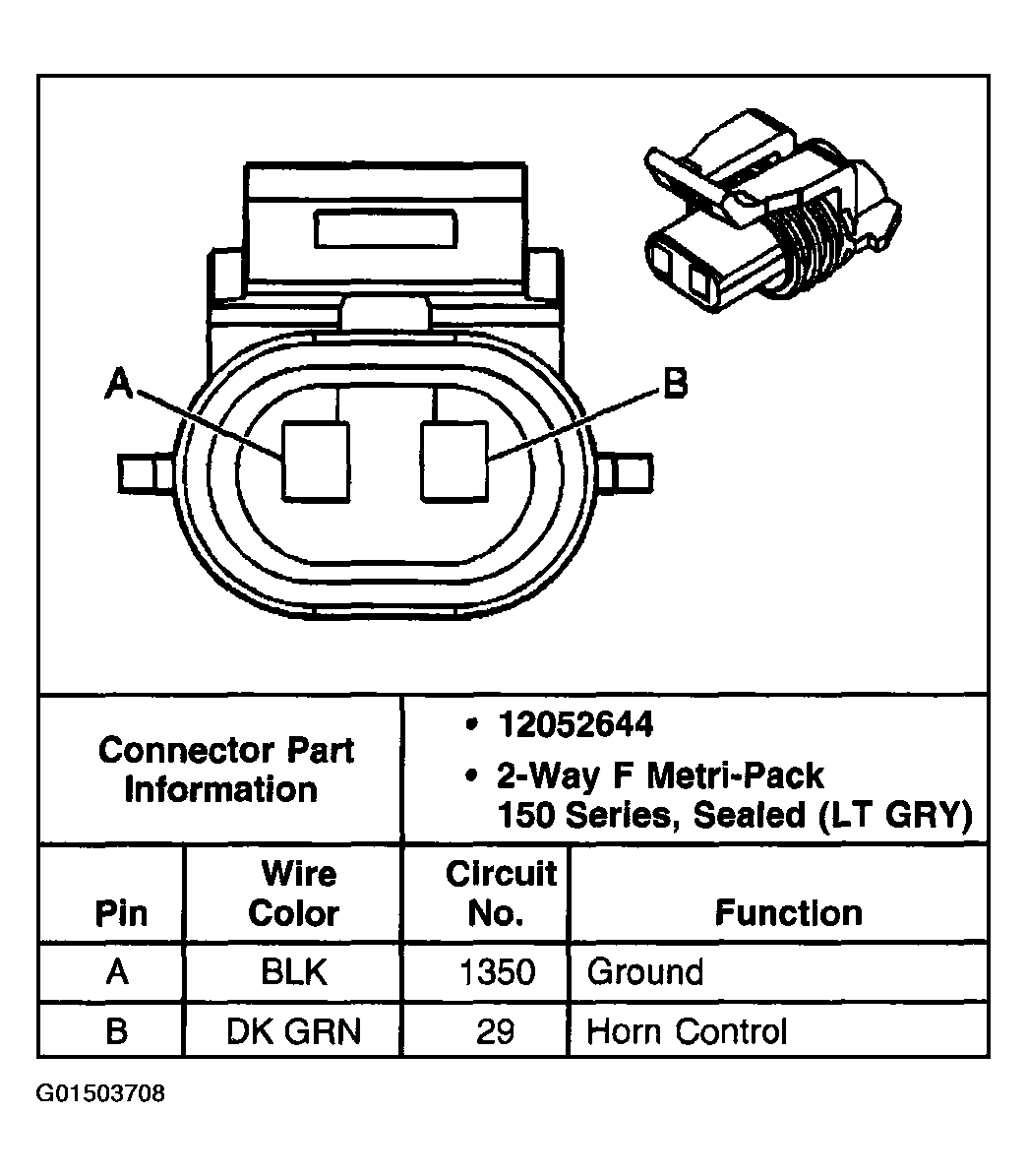

Fig 1: Horn Assembly Connector End View
G01503708Courtesy of GENERAL MOTORS CORP.
