Component Locations

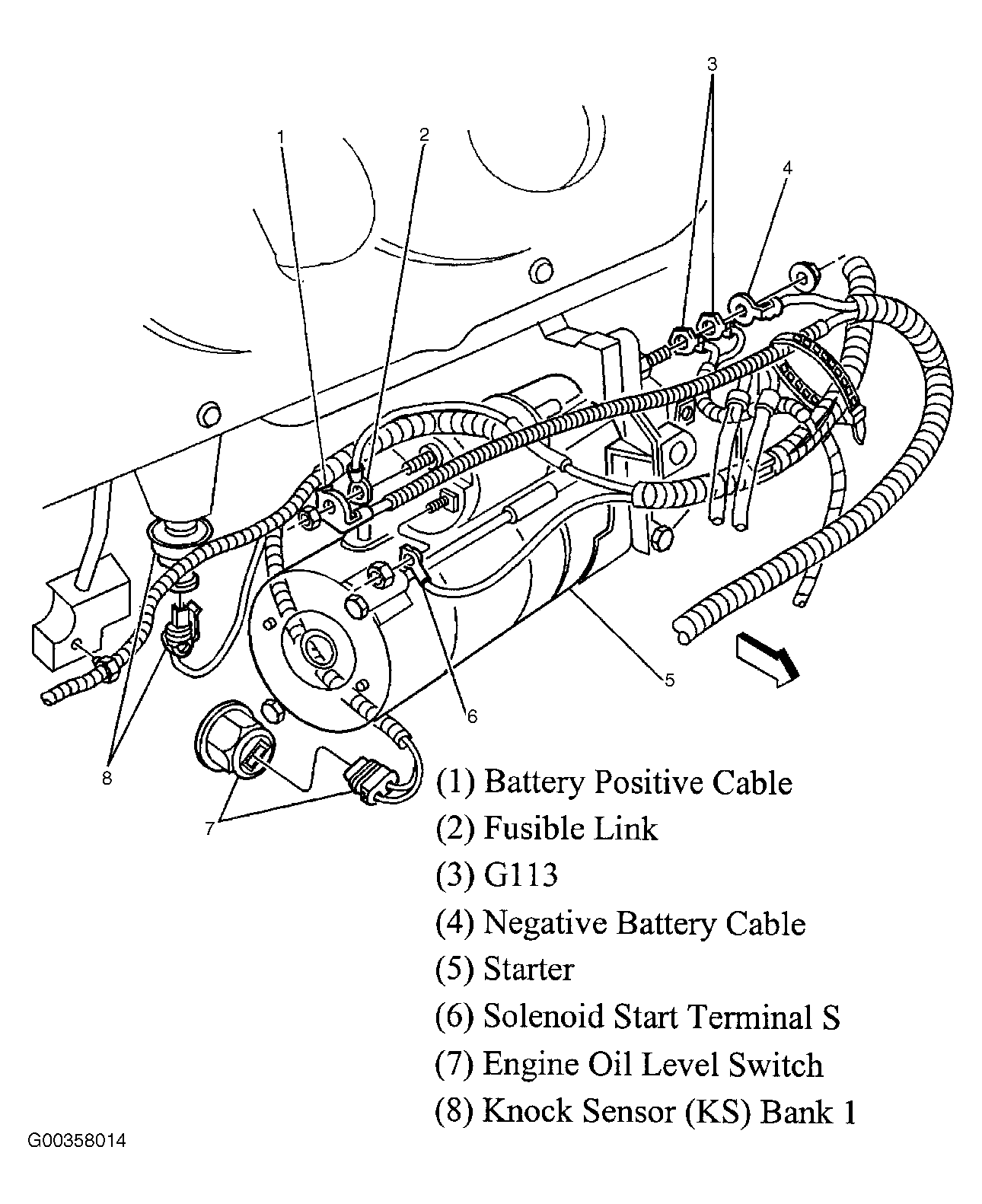

Fig 1: Identifying Starter Motor Electrical Connectors
G00358014Courtesy of GENERAL MOTORS CORP.
