A/T Shift Lock Control Solenoid Connector End View

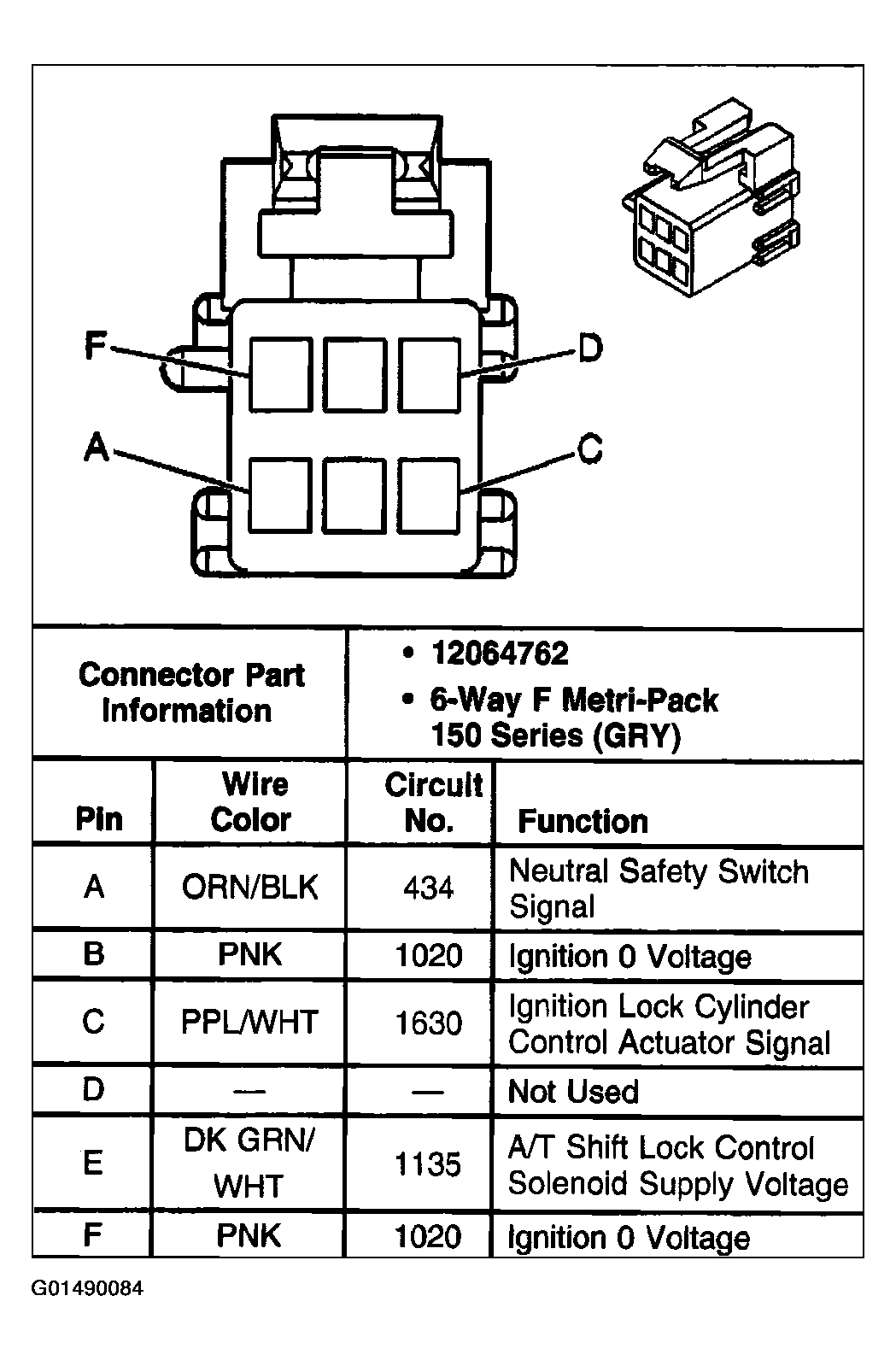

Fig 1: A/T Shift Lock Control Solenoid Connector End View
G01490084Courtesy of GENERAL MOTORS CORP.


Fig 1: A/T Shift Lock Control Solenoid Connector End View
G02080760Courtesy of GENERAL MOTORS CORP.
