Removal Procedure

  1. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Remove the screws from the child seat tether brackets.
  3. Remove the child seat tether brackets from the rear shelf.

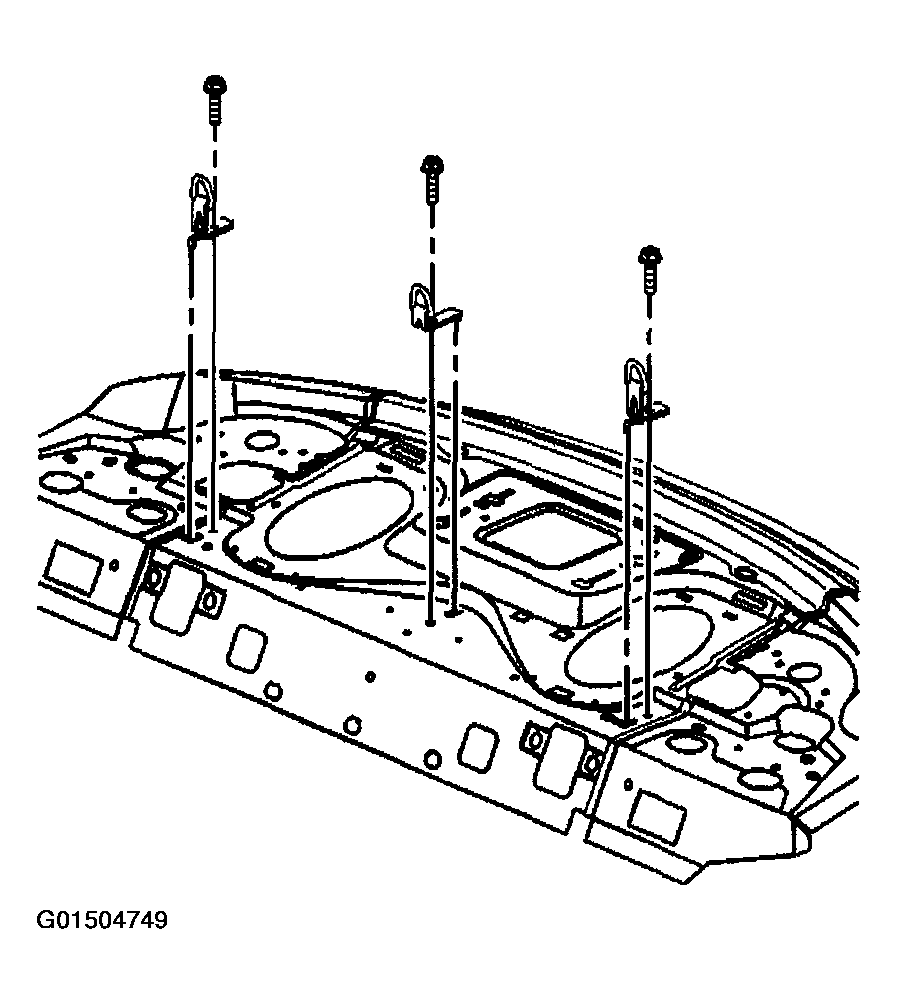

    Fig 1: Removing Procedure Child Restraint Tether Anchor
    G01504749Courtesy of GENERAL MOTORS CORP.
