Removal Procedure

  1. Remove the upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN) in Interior Trim.
  2. Remove the shoulder belt guide adjuster bracket bolts.
  3. Remove the shoulder belt guide belt adjuster bracket from the upper center pillar.

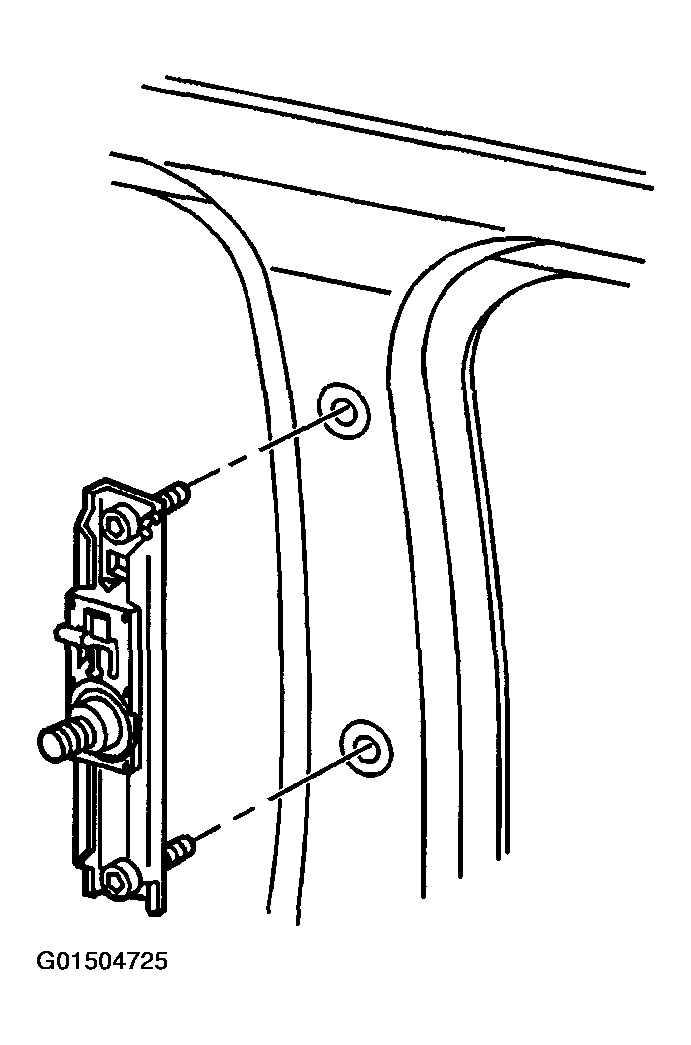

    Fig 1: Removing Shoulder Belt Guide Adjuster Bracket
    G01504725Courtesy of GENERAL MOTORS CORP.
