Installation Procedure

  1. Install the ignition lock cylinder by performing the following procedure:
    1. 1.1. Align the positioning locking tab slot on the lock module to the positioning tab on the ignition lock cylinder.
    2. 1.2. Push the lock cylinder in until the tab locks in the lock module.
  2. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement  .
  3. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  4. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  5. Perform the Passlock learn procedure. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS .

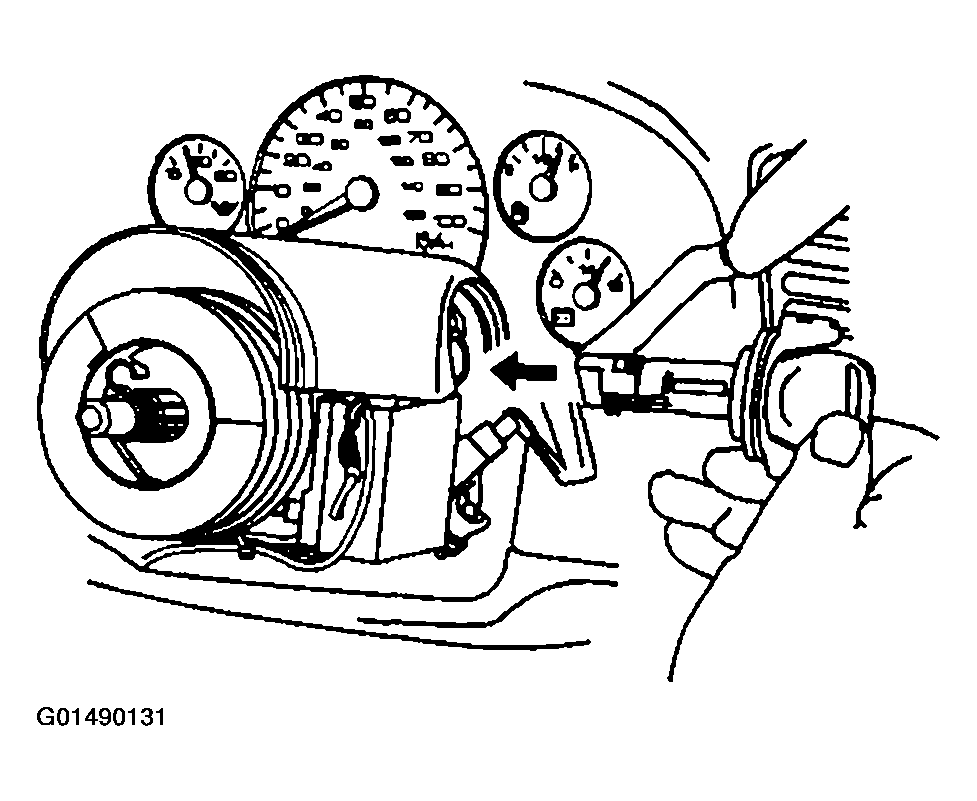

    Fig 1: Installing Ignition Lock Cylinder
    G01490131Courtesy of GENERAL MOTORS CORP.
