Installation Procedure

  1. Connect the electrical connectors.

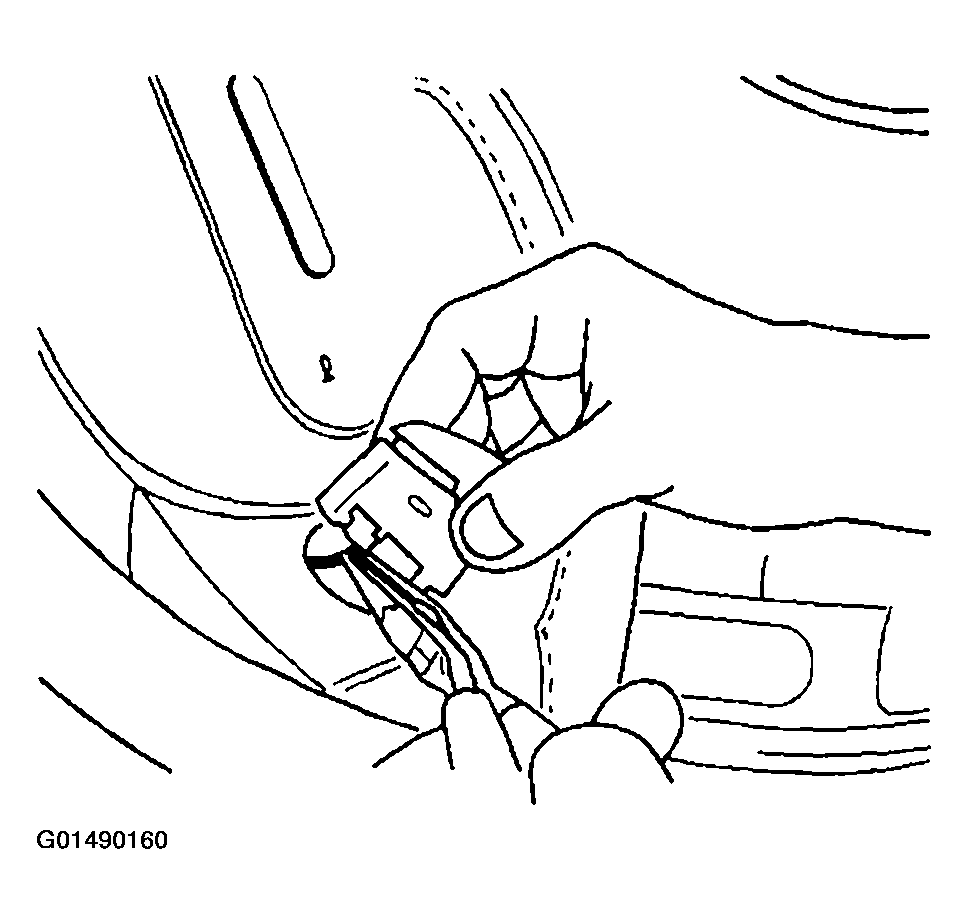

    Fig 1: Connecting Electrical Connectors
    G01490160Courtesy of GENERAL MOTORS CORP.
  2. Position the steering wheel control switches to the steering wheel.
    Fig 2: Positioning Steering Wheel Control Switches To Steering Wheel
    G01490161Courtesy of GENERAL MOTORS CORP.
  3. Install the steering wheel control switches by pressing into place until fully seated.
    Fig 3: Installing Steering Wheel Control Switches
    G01490162Courtesy of GENERAL MOTORS CORP.
