Installation Procedure

  1. Route the SIR connector through the steering wheel.
  2. Align the scribe mark on the steering wheel with the slash mark on the steering shaft.
  3. Install the steering wheel.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the steering shaft nut.

    Tighten

    1. Tighten the nut to 45 N.m (33 lb ft).
  5. Install the Inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .

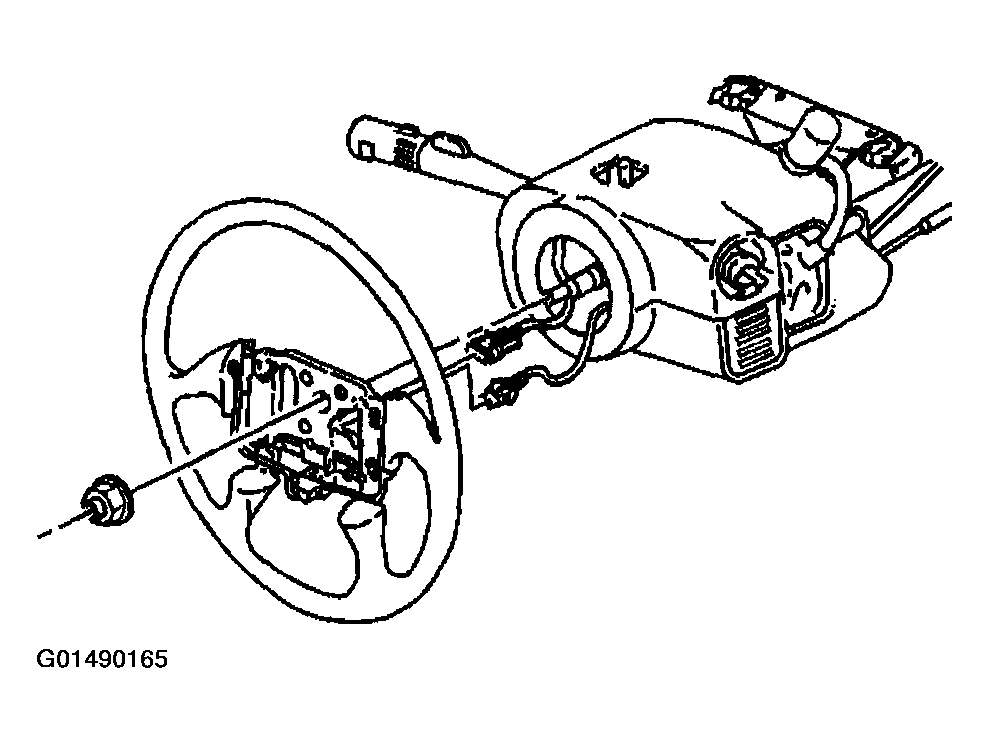

    Fig 1: Installing Steering Wheel & Steering Shaft Nut
    G01490165Courtesy of GENERAL MOTORS CORP.
  6. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  7. Inspect the operation of the following components:
    • The horn
    • The steering wheel
    • The steering wheel controls
