Installation Procedure

  1. Connect the wire harness connectors to the power sunroof control module (2).
  2. Engage the power sunroof control module retainers by sliding the control module (2) towards the left side of the vehicle.
  3. Install the tie wraps to secure the power sunroof control module wire harness to the drive and return tubes.
  4. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.

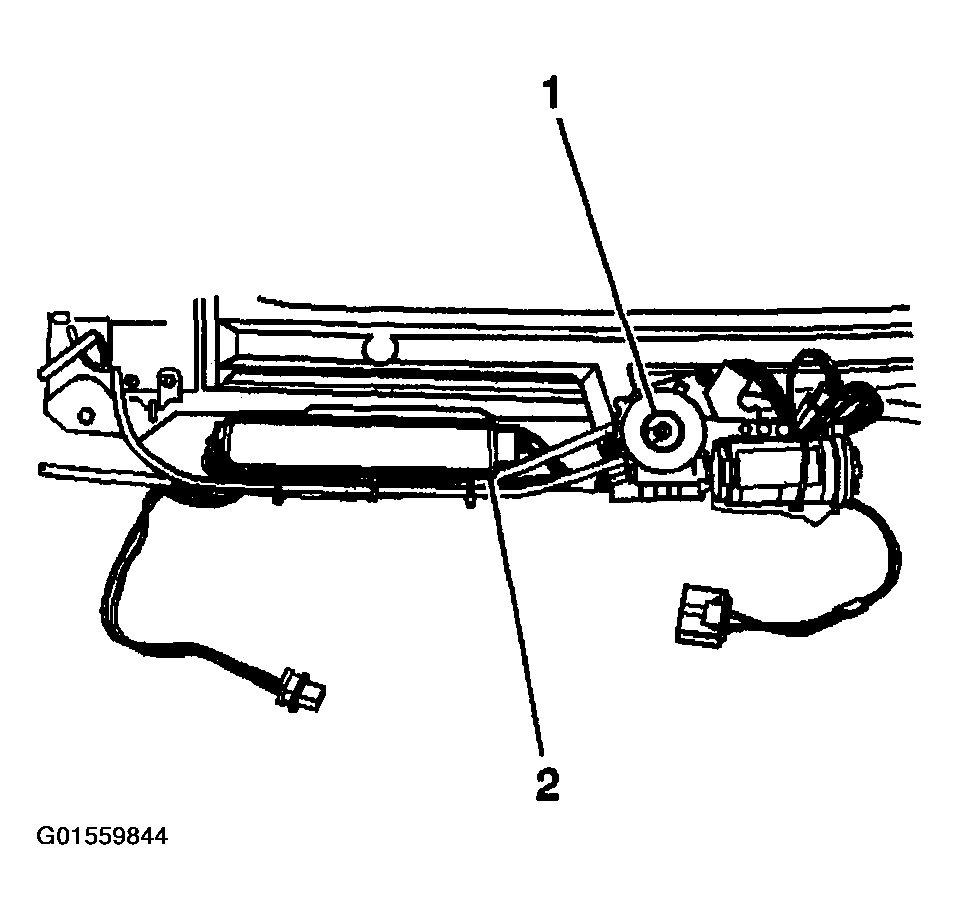

    Fig 1: Connecting Wire Harness Connectors
    G01559844Courtesy of GENERAL MOTORS CORP.
