Body Control System Component Views

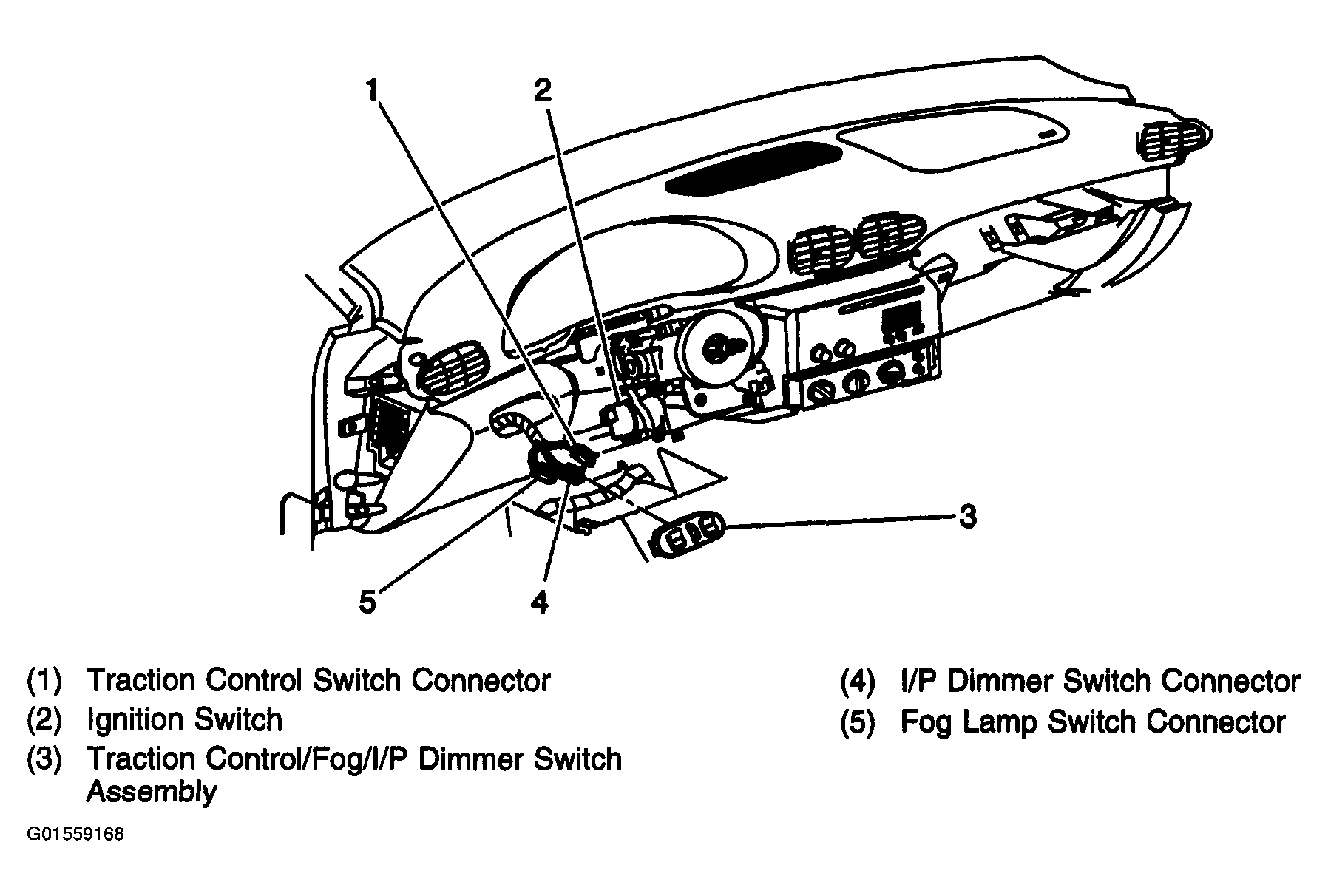

Fig 1: Identifying Under Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

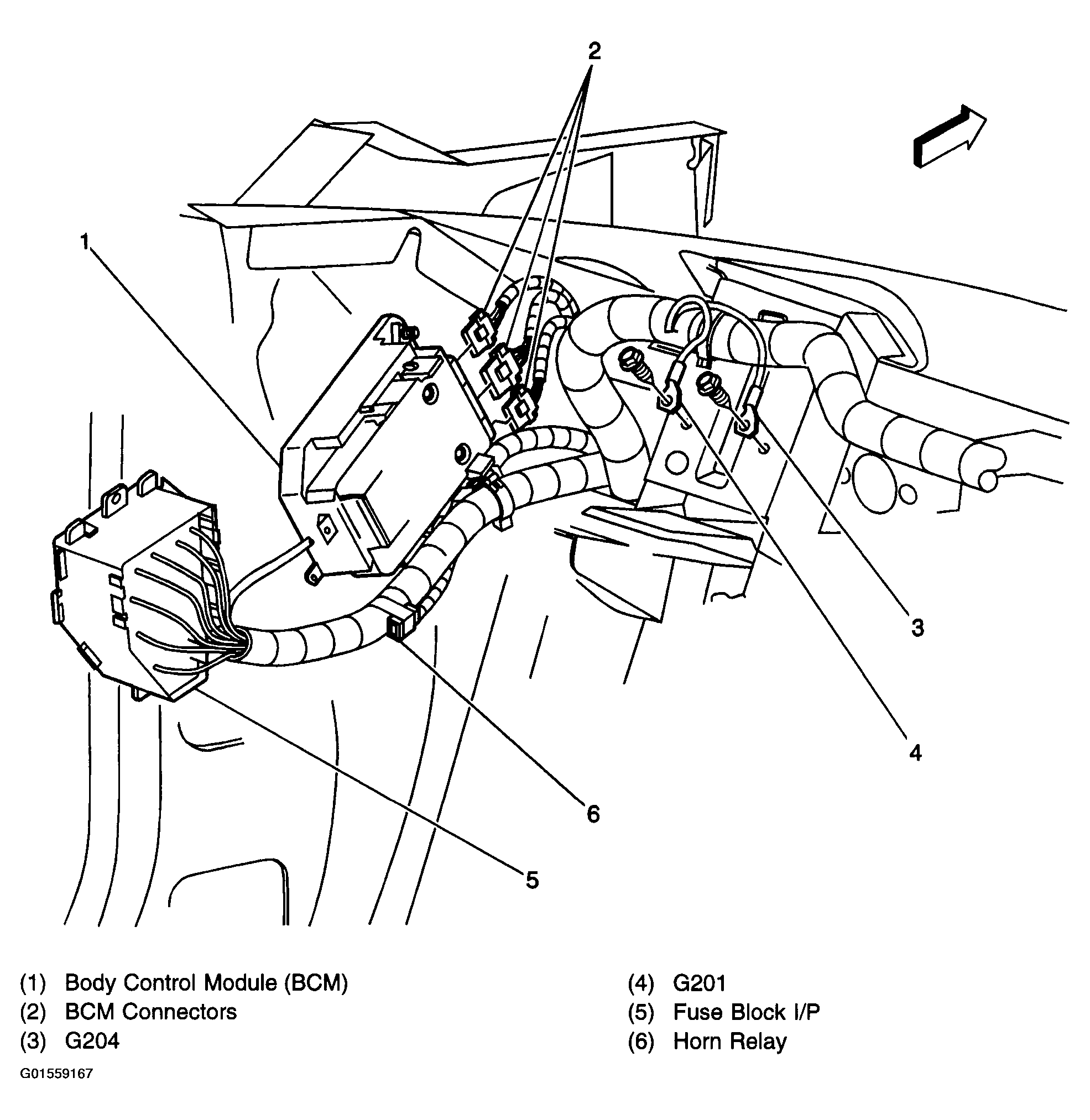

Fig 2: Identifying Behind Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.
