Data Link Communications Connector End Views
Data Link Communications Connector End Views

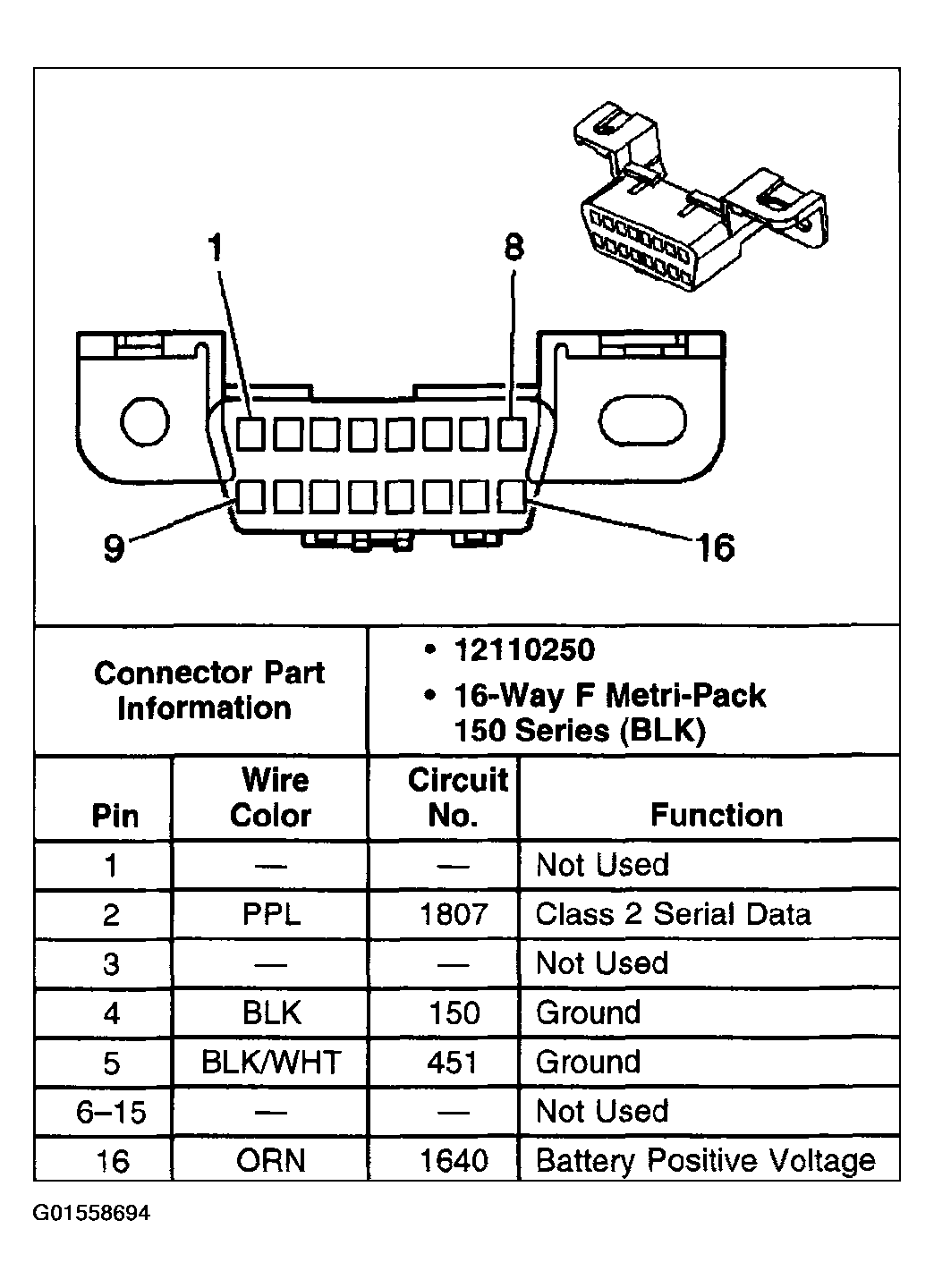

Fig 1: Identifying Data Link Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
