Cruise Control Component Views

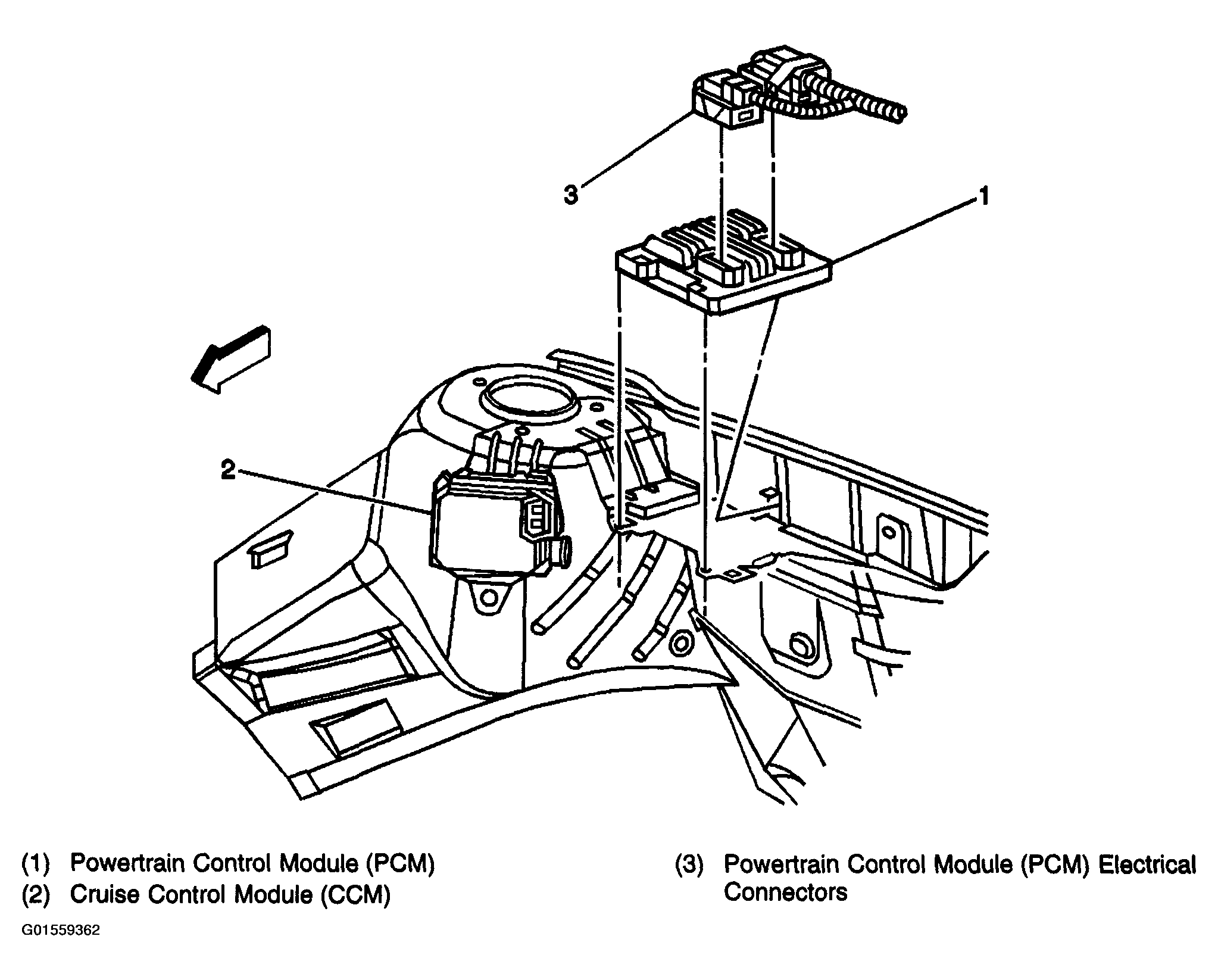

Fig 1: Locating Cruise Control Components (Powertrain Control Module)

Courtesy of GENERAL MOTORS CORP.

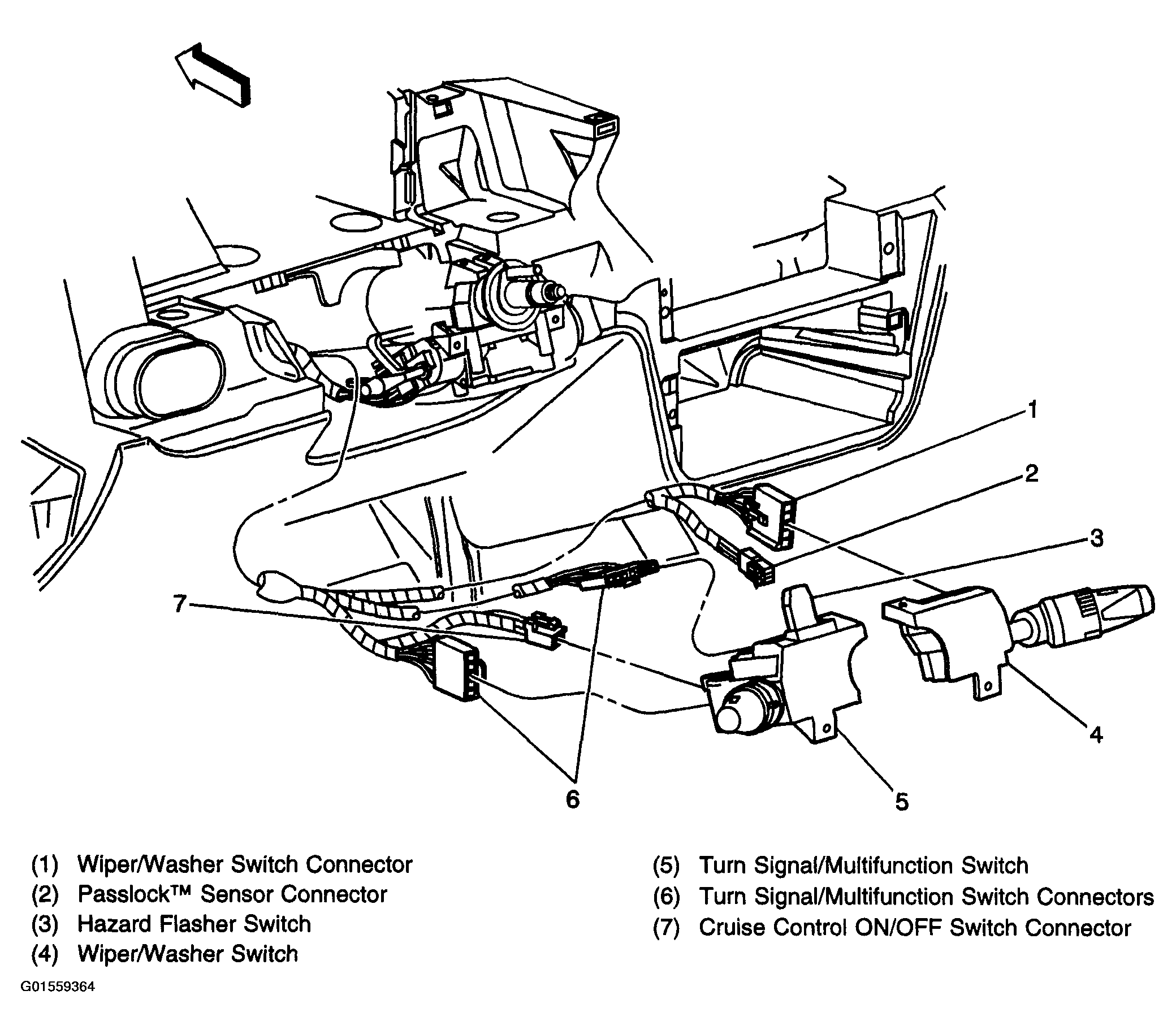

Fig 2: Locating Cruise Control Components (Below Left Side Of IP, Near Steering Column)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating Cruise Control Components (Steering Column)

Courtesy of GENERAL MOTORS CORP.
