Pontiac
›
2003
›
Sunfire Automatic
›
Repair and Diagnosis
›
Accessories & Equipment
›
Cruise Control Systems
›
Diagnostic Information and Procedures
›
Scan Tool Output Controls
Scan Tool Output Controls

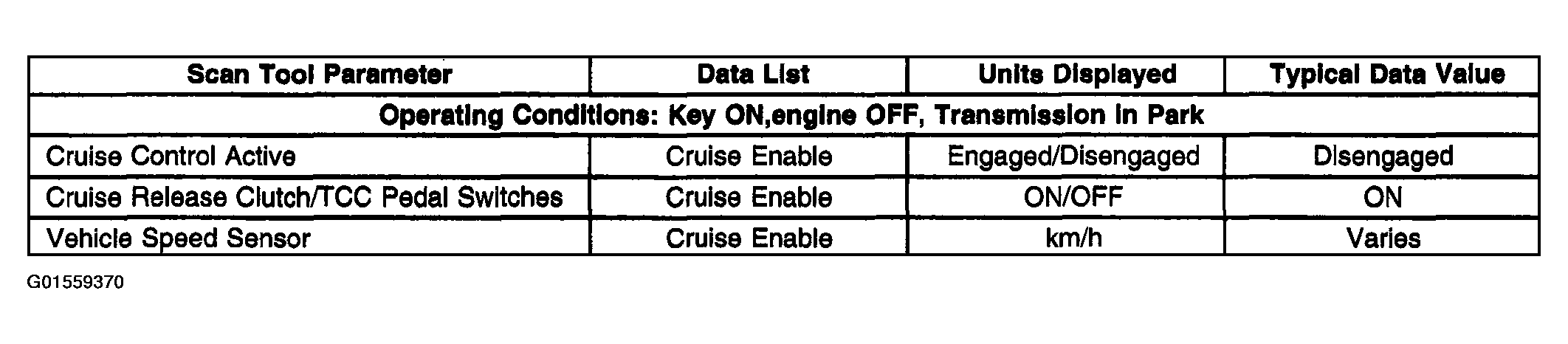

Fig 1: Cruise Control System - Scan Tool Output Controls
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
