Cruise Control Schematics

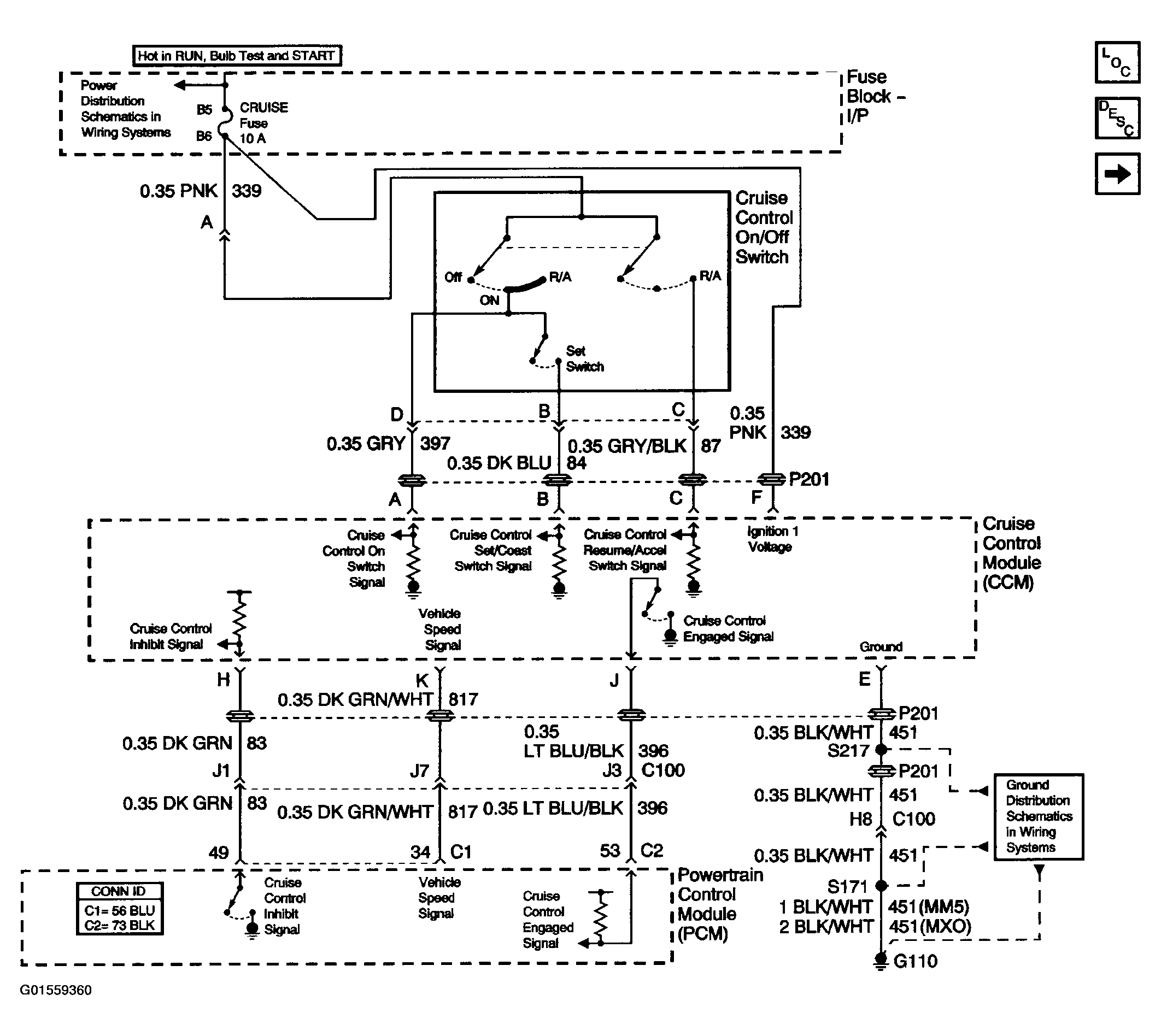

Fig 1: Cruise Control Schematic (Power, Ground And Controls)

Courtesy of GENERAL MOTORS CORP.

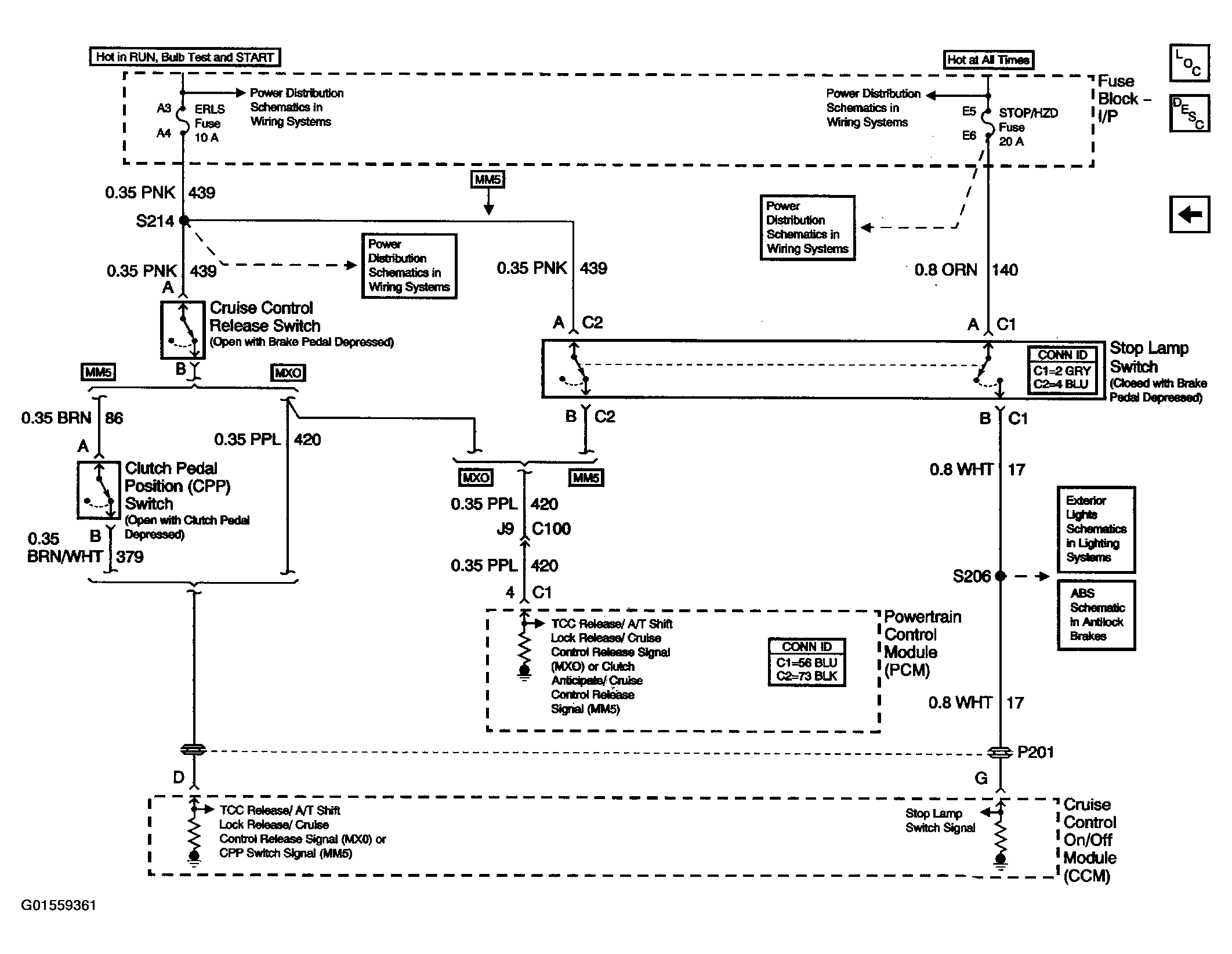

Fig 2: Cruise Control Schematic (Release Signals)

Courtesy of GENERAL MOTORS CORP.
