Cellular Communication Connector End Views

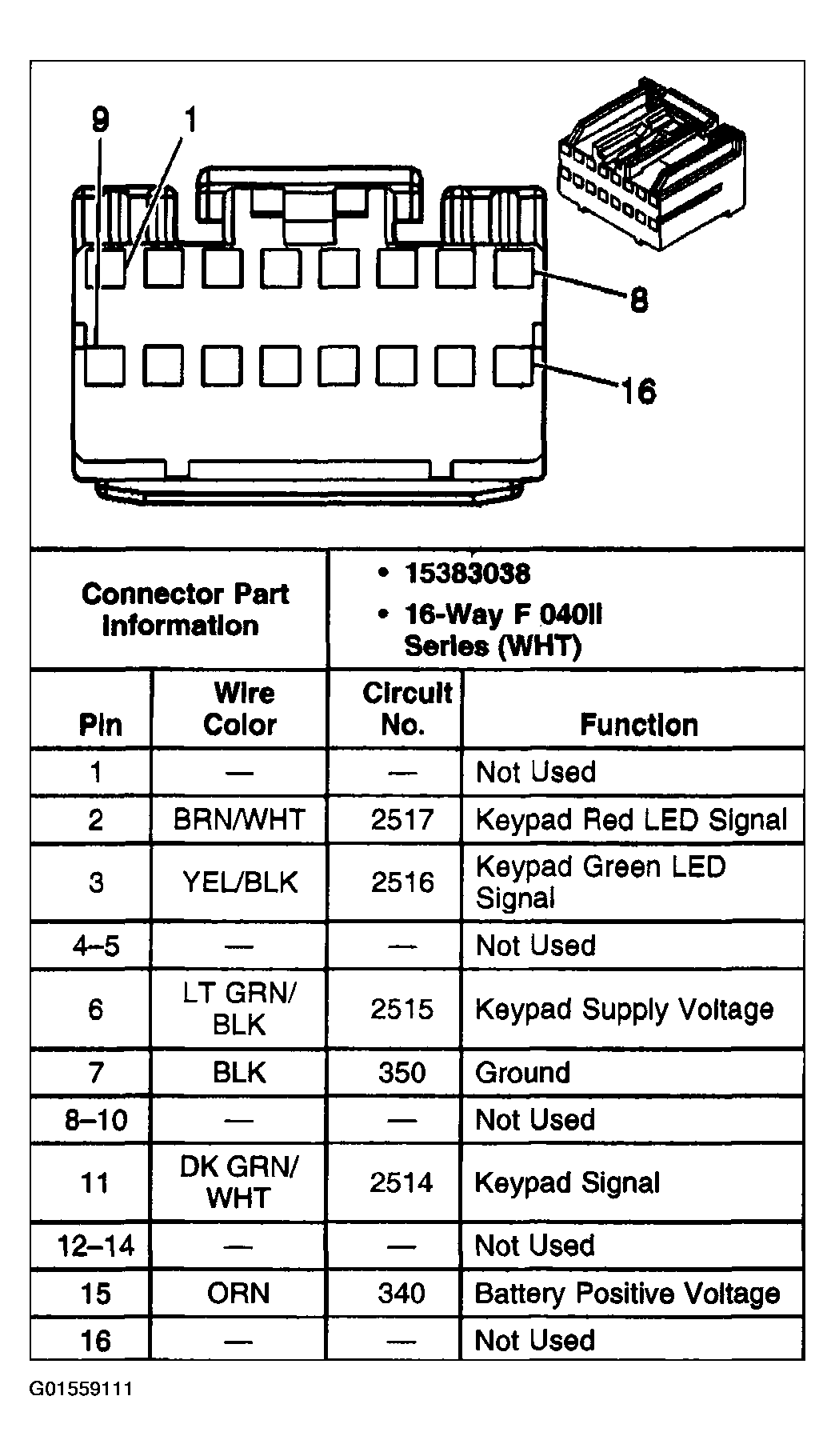

Fig 1: Identifying Vehicle Communications Interface Module (VCIM) C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

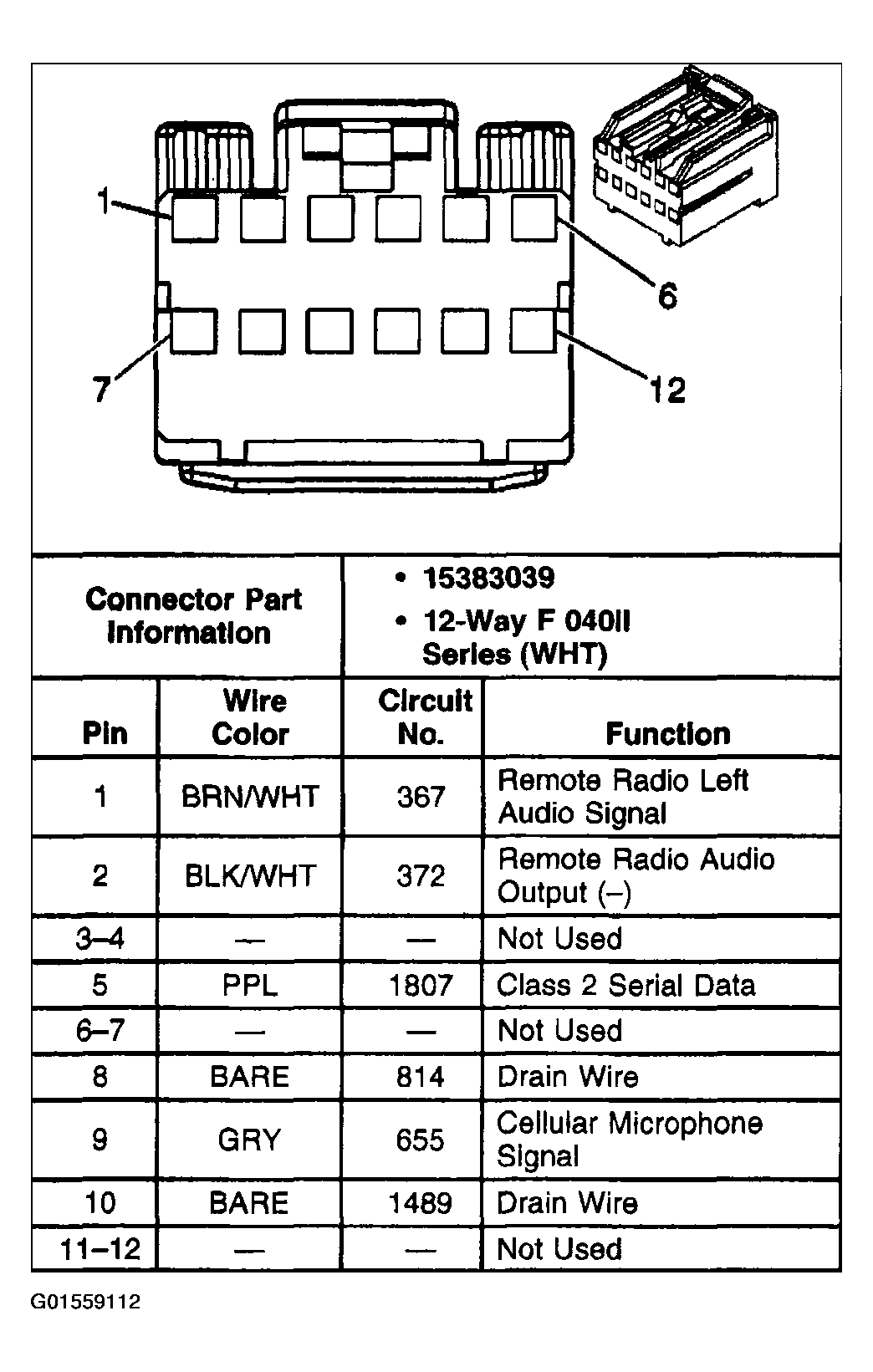

Fig 2: Identifying Vehicle Communications Interface Module (VCIM) C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

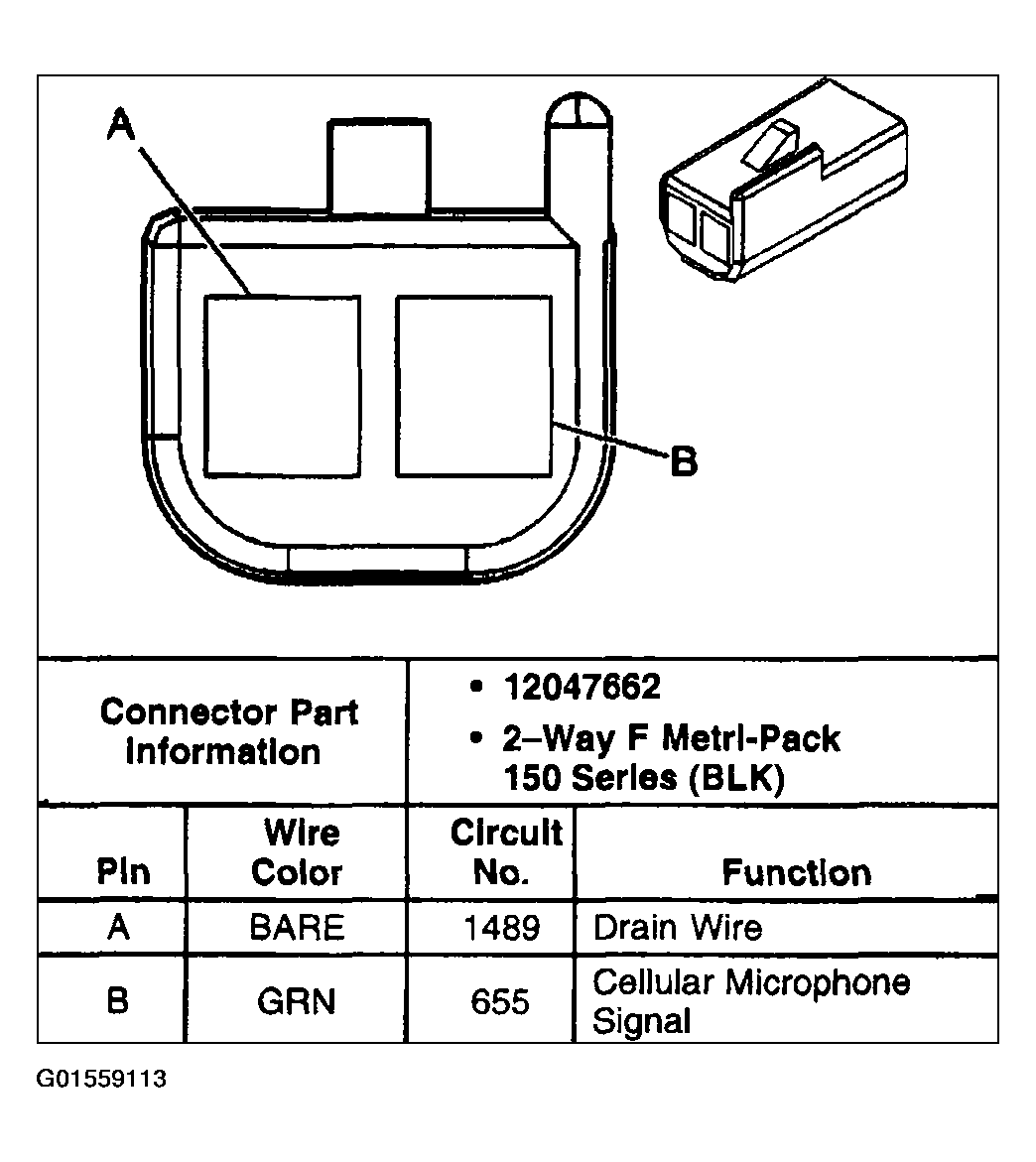

Fig 3: Identifying Cellular Microphone Connector Terminals

Courtesy of GENERAL MOTORS CORP.
