Keyless Entry System Inoperative
Keyless Entry System Inoperative

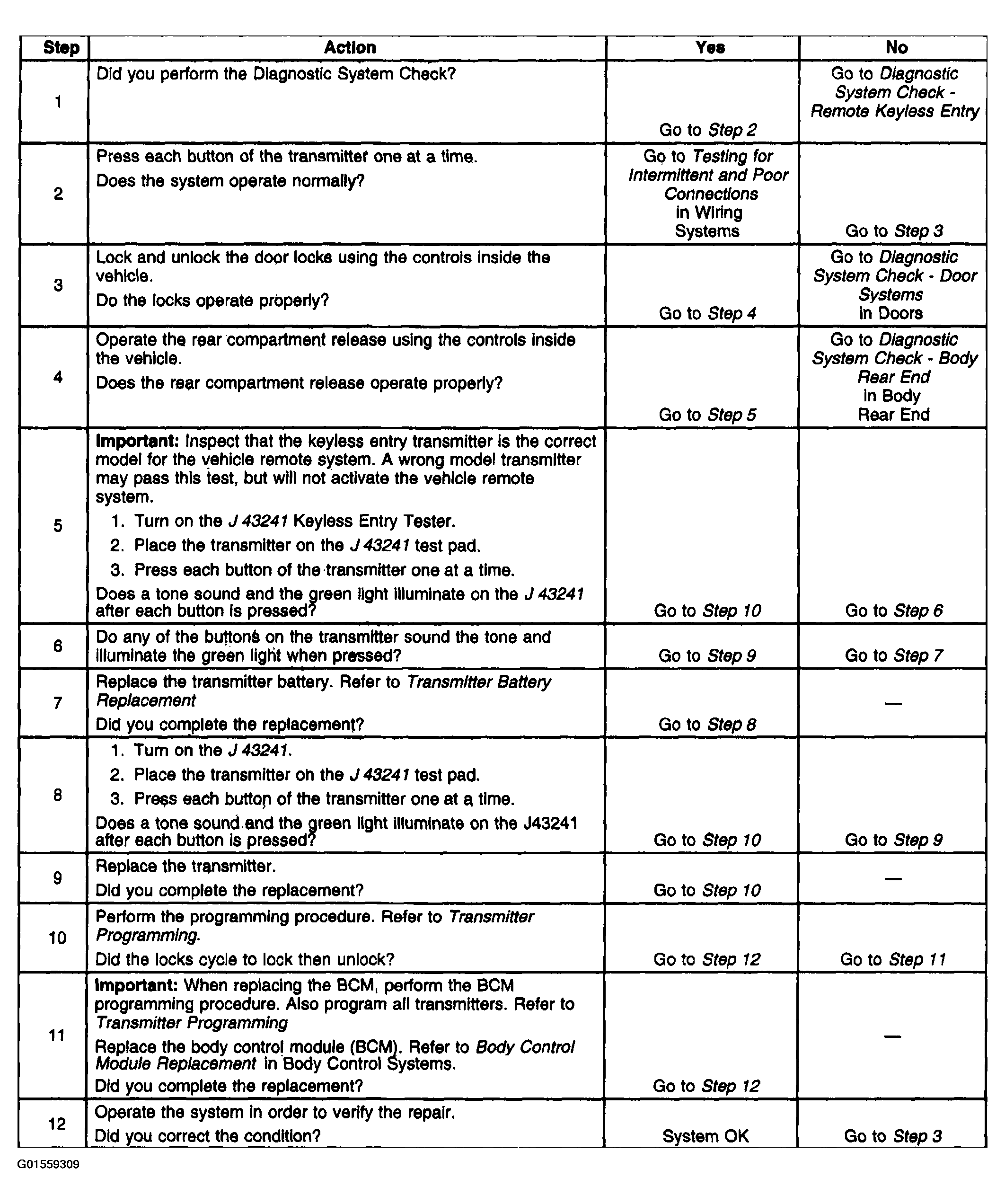

Fig 1: Diagnostic System Check - Keyless Entry System Inoperative
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
