Installation Procedure

  1. Position the lumbar support knob to the splines and retainer tabs.
  2. Install the lumbar support knob, pressing into place until fully seated.

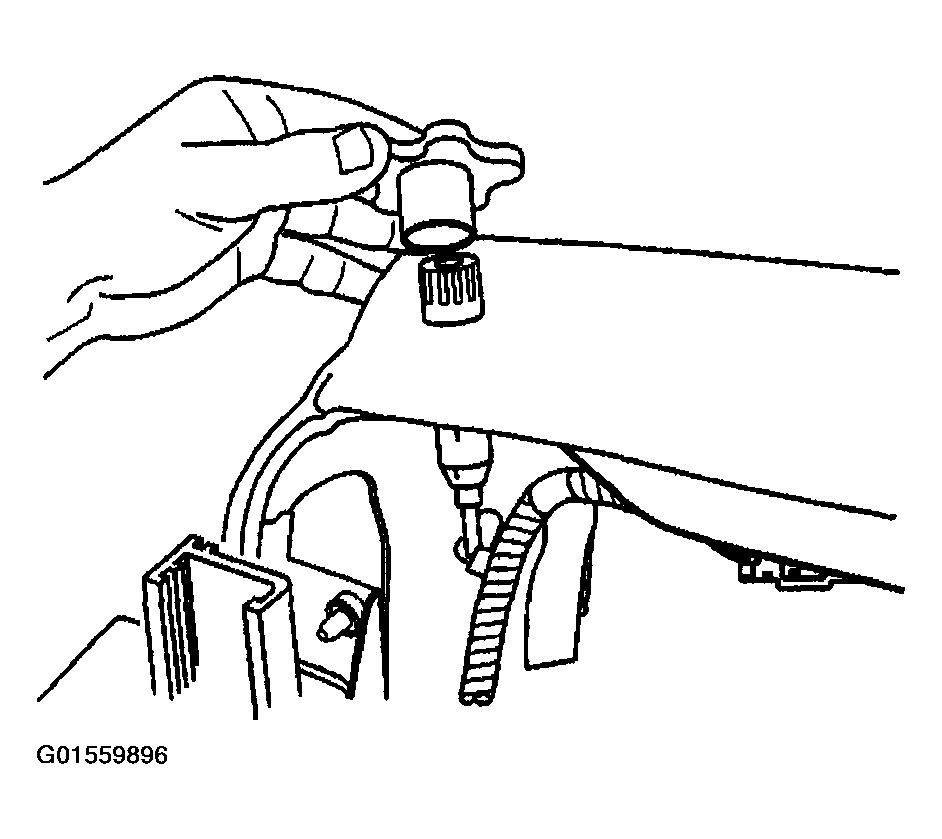

    Fig 1: Installing Lumbar Support Knob
    G01559896Courtesy of GENERAL MOTORS CORP.
