Installation Procedure

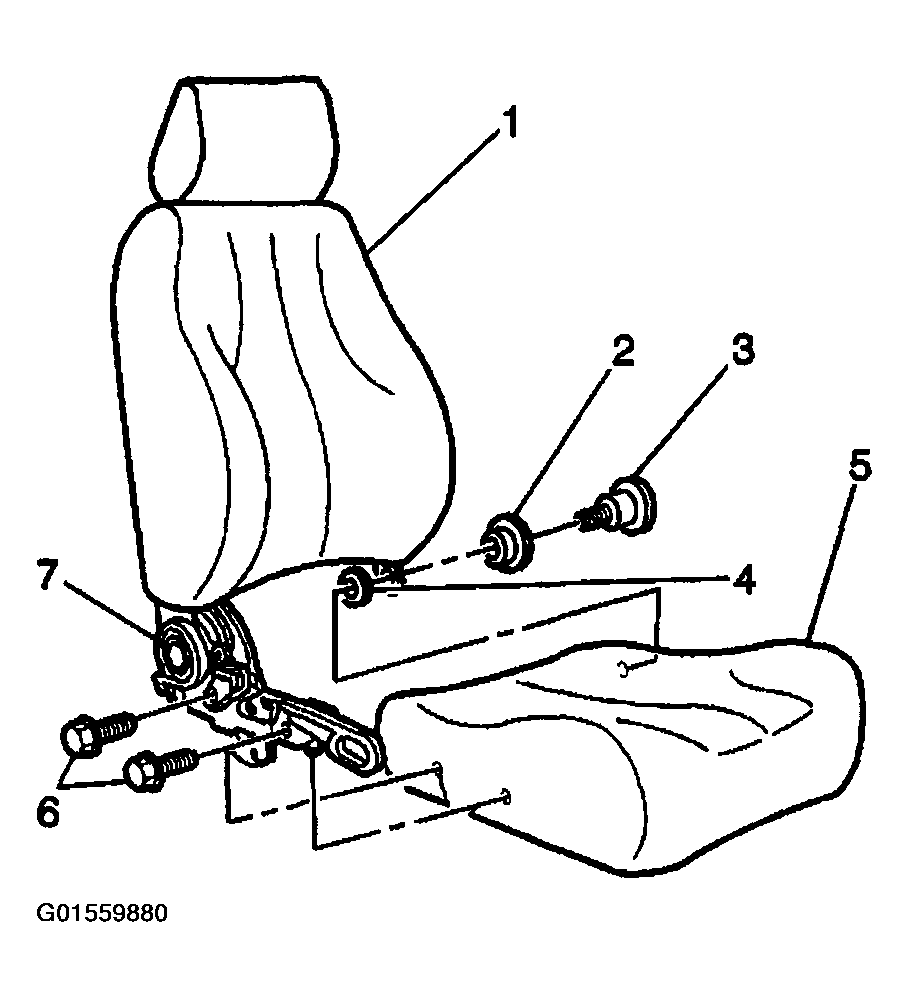

- Install the front seat back (1) to the front seat cushion (5).NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the front bucket seat back pivot bolt (3).
Tighten
Tighten the pivot bolt to 20 N.m (15 lb ft).
- Install the front bucket seat recliner bolts.
Tighten
Tighten the bolts to 20 N.m (15 lb ft).
- Install the outer trim panel on the seat cushion. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT .
- Fasten the wire harness to the cushion frame for the SIAB, if equipped.
- Fasten the lumbar cable to the cushion frame, if equipped.
- Install the lumbar actuator to the cushion frame, if equipped. Refer to LUMBAR REPLACEMENT - FRONT SEAT (PONTIAC) .
- Align the lumbar knob to the splines on the actuator, if equipped.
Press the knob onto the actuator until fully engaged.
- Install the front seat. Refer to SEAT REPLACEMENT .
- Enable the SIR system, if equipped with SIAB. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM or to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
