Power Door Systems Component Views

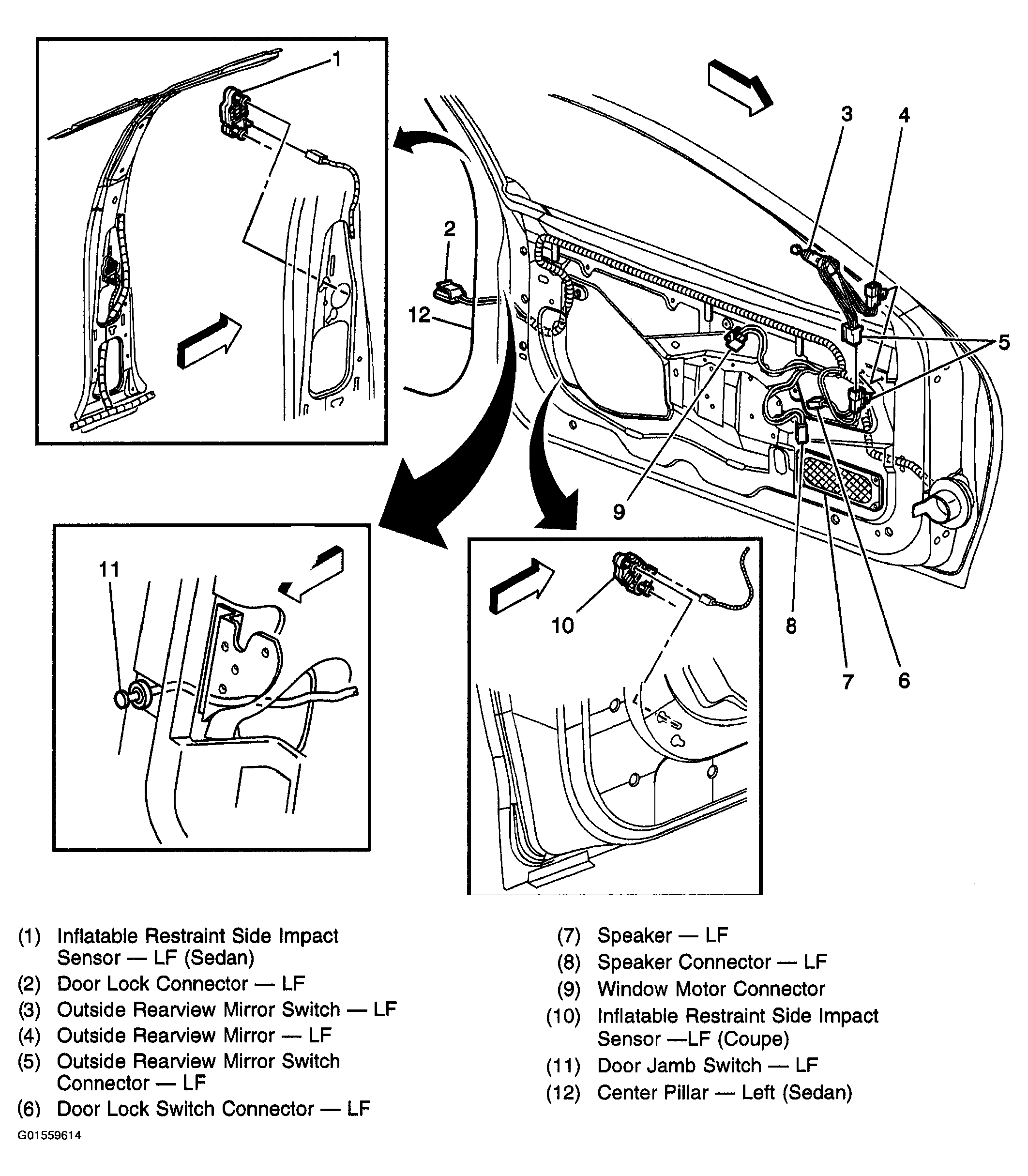

Fig 1: Identifying LF Power Driver Door Sensor And Connector

Courtesy of GENERAL MOTORS CORP.

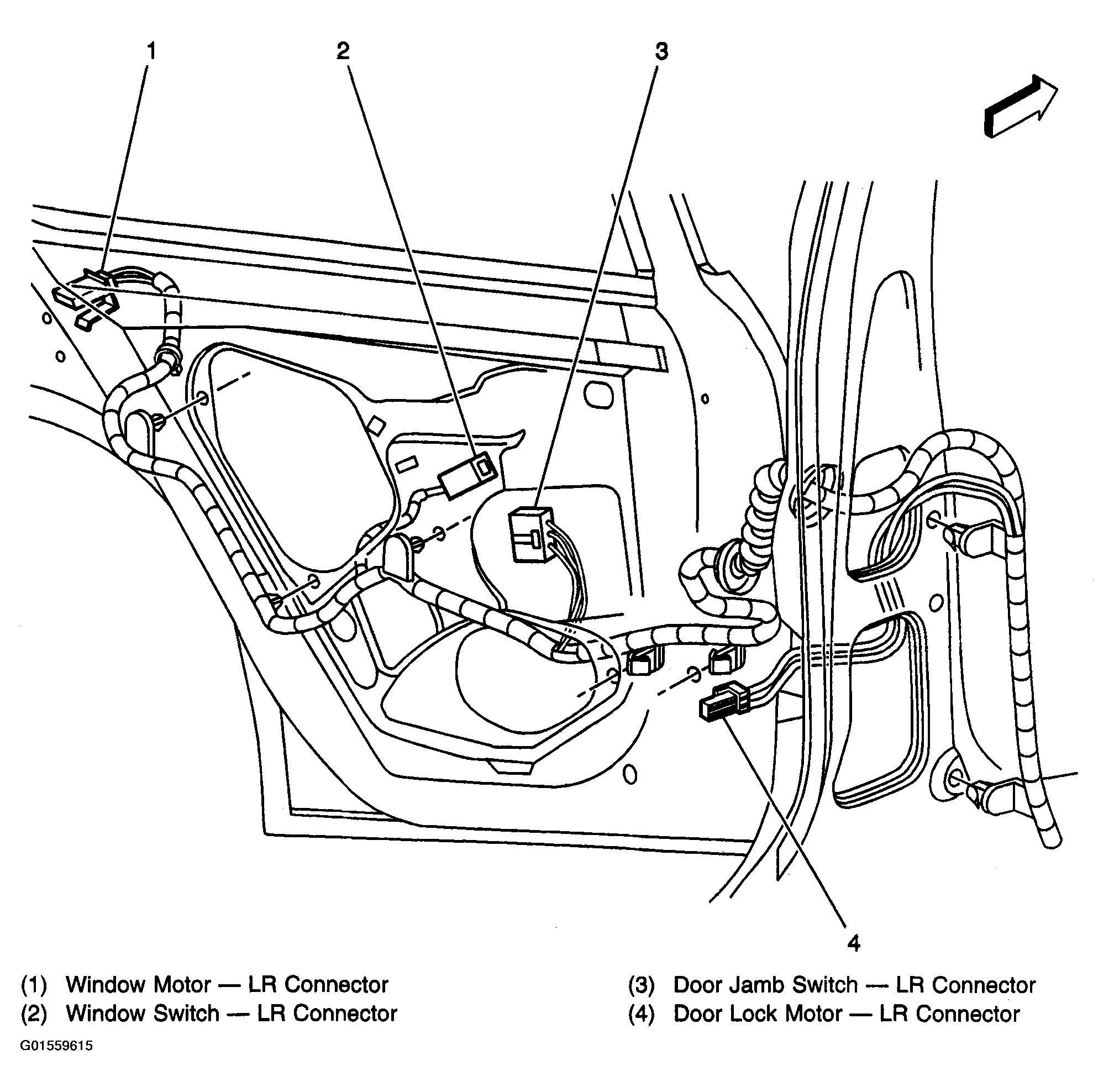

Fig 2: Identifying LR Power Driver Door Connector

Courtesy of GENERAL MOTORS CORP.

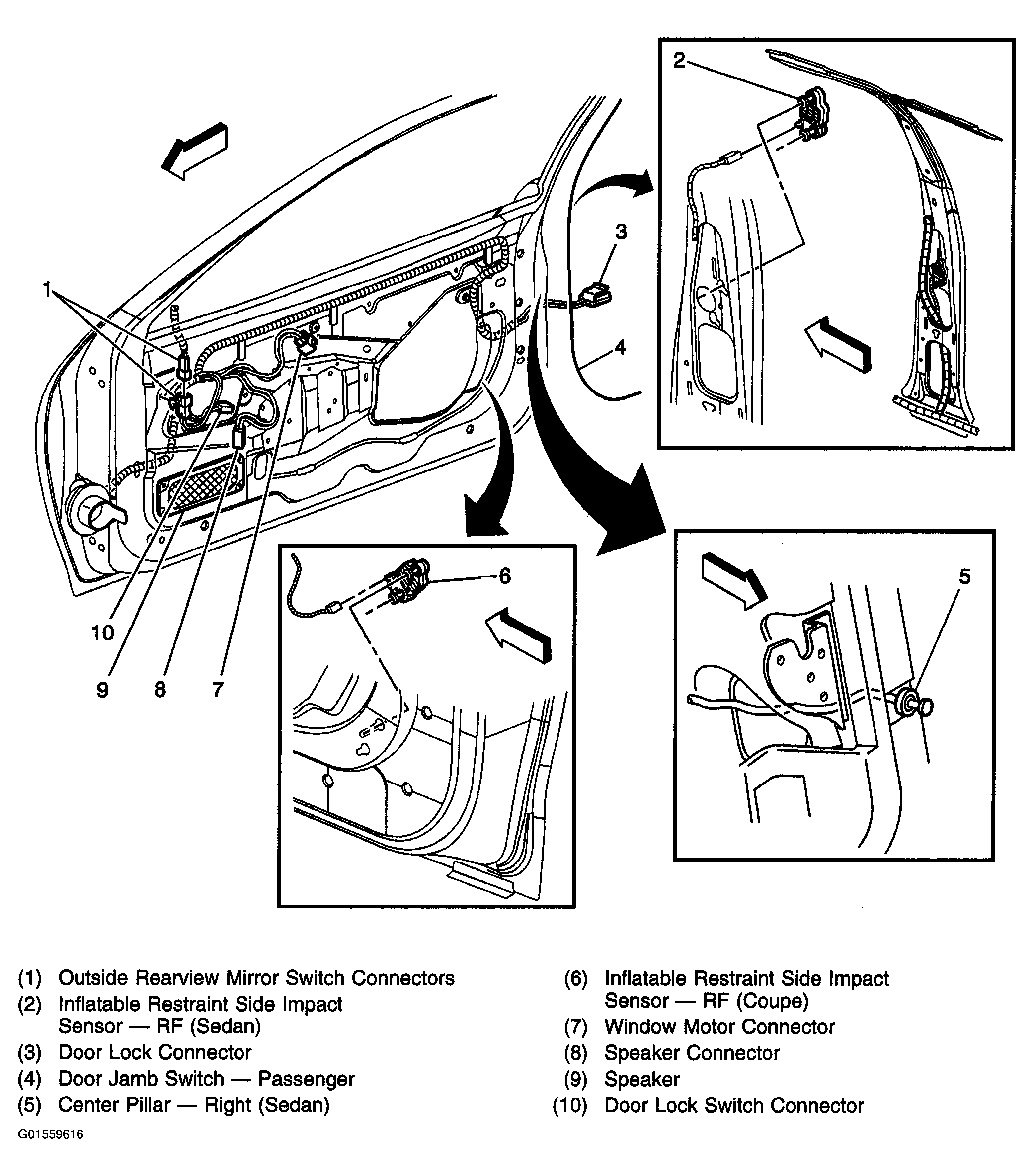

Fig 3: Identifying LF Passenger Driver Door Sensor And Connector

Courtesy of GENERAL MOTORS CORP.

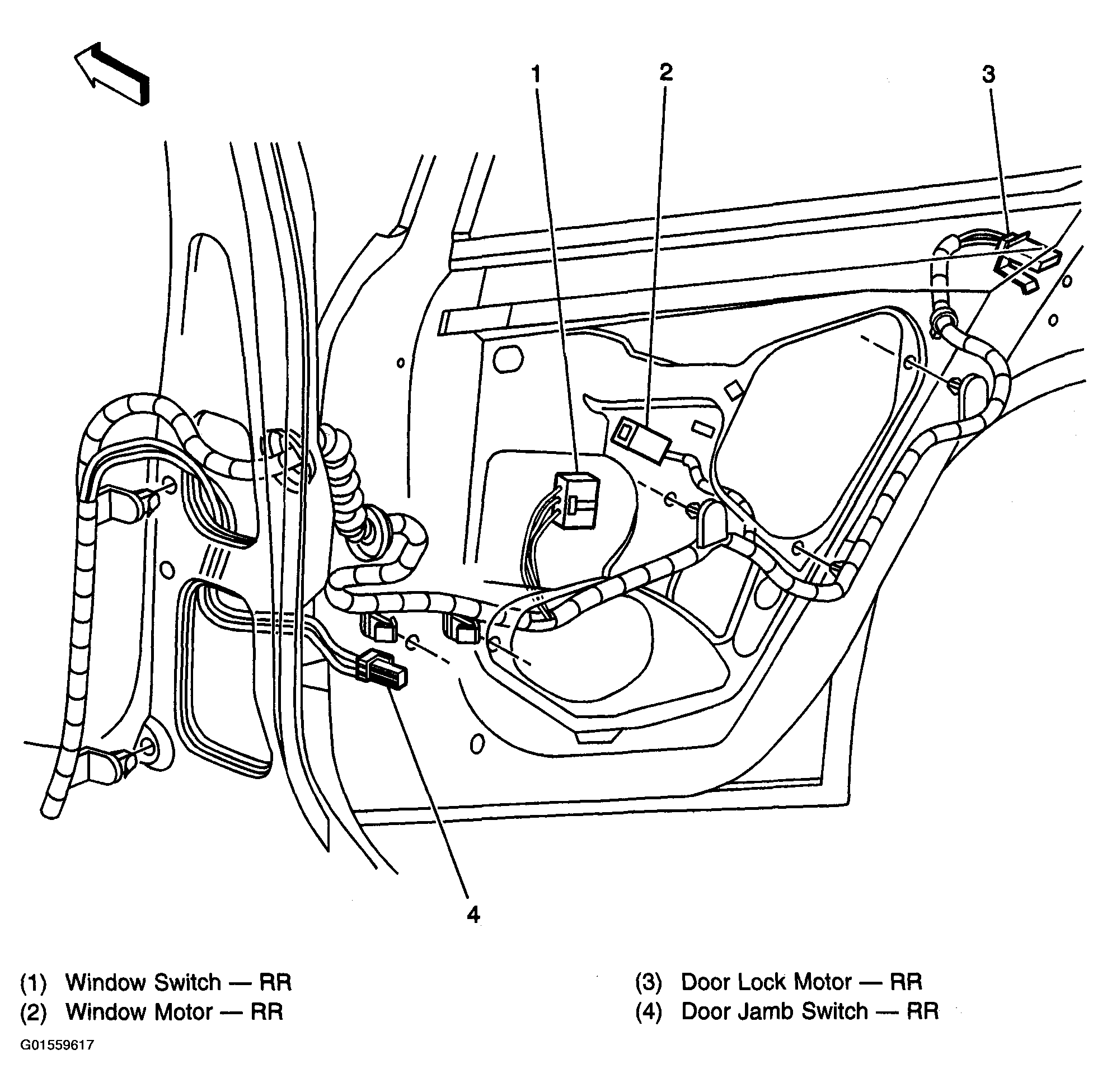

Fig 4: Identifying Right Rear Passenger Driver Door Sensor And Connector

Courtesy of GENERAL MOTORS CORP.

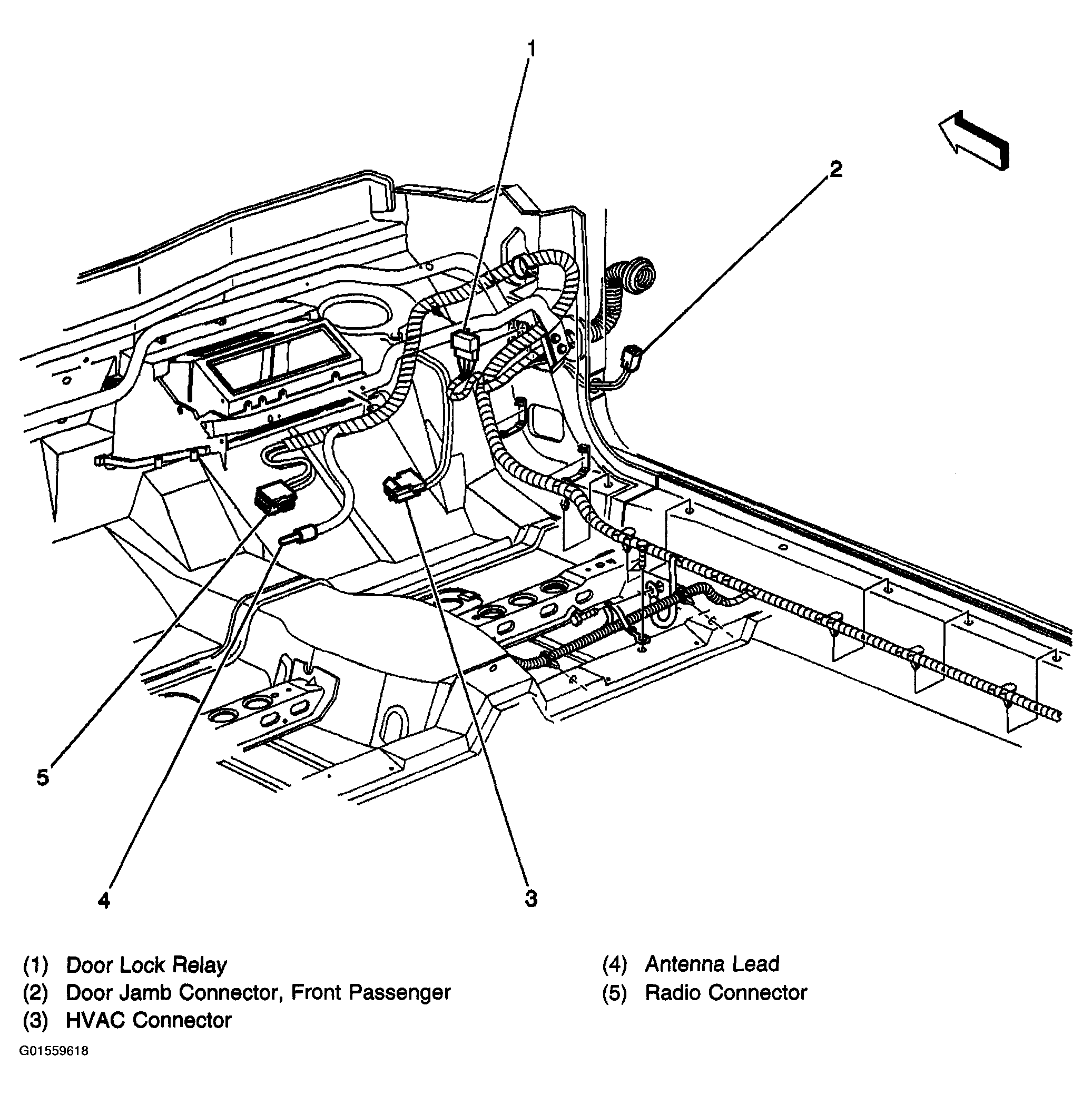

Fig 5: Identifying Right Front I/P Compartment Relay And Connector

Courtesy of GENERAL MOTORS CORP.

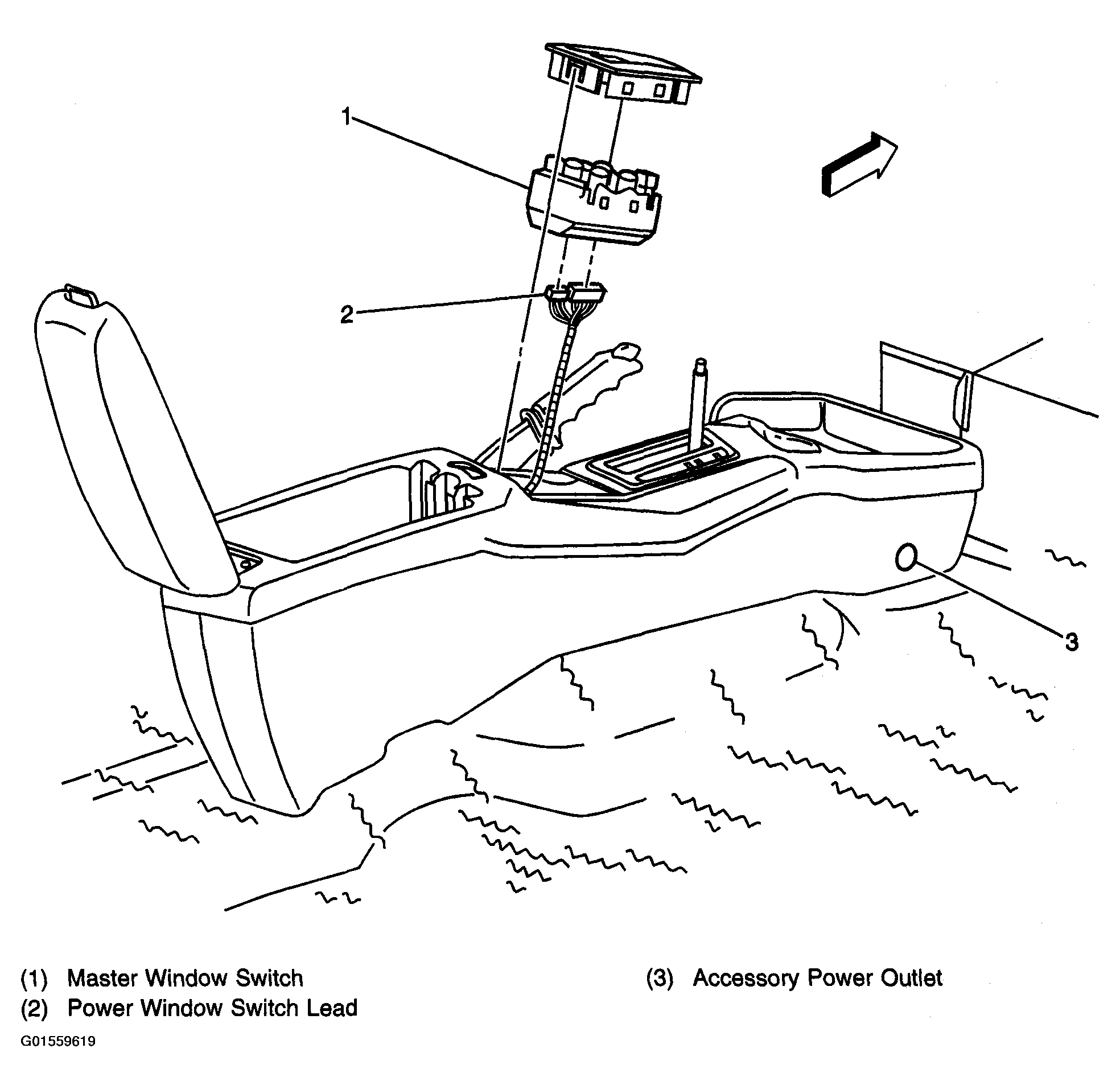

Fig 6: Removing Master Window Switch From Center Console

Courtesy of GENERAL MOTORS CORP.
