Power Door Systems Connector End Views

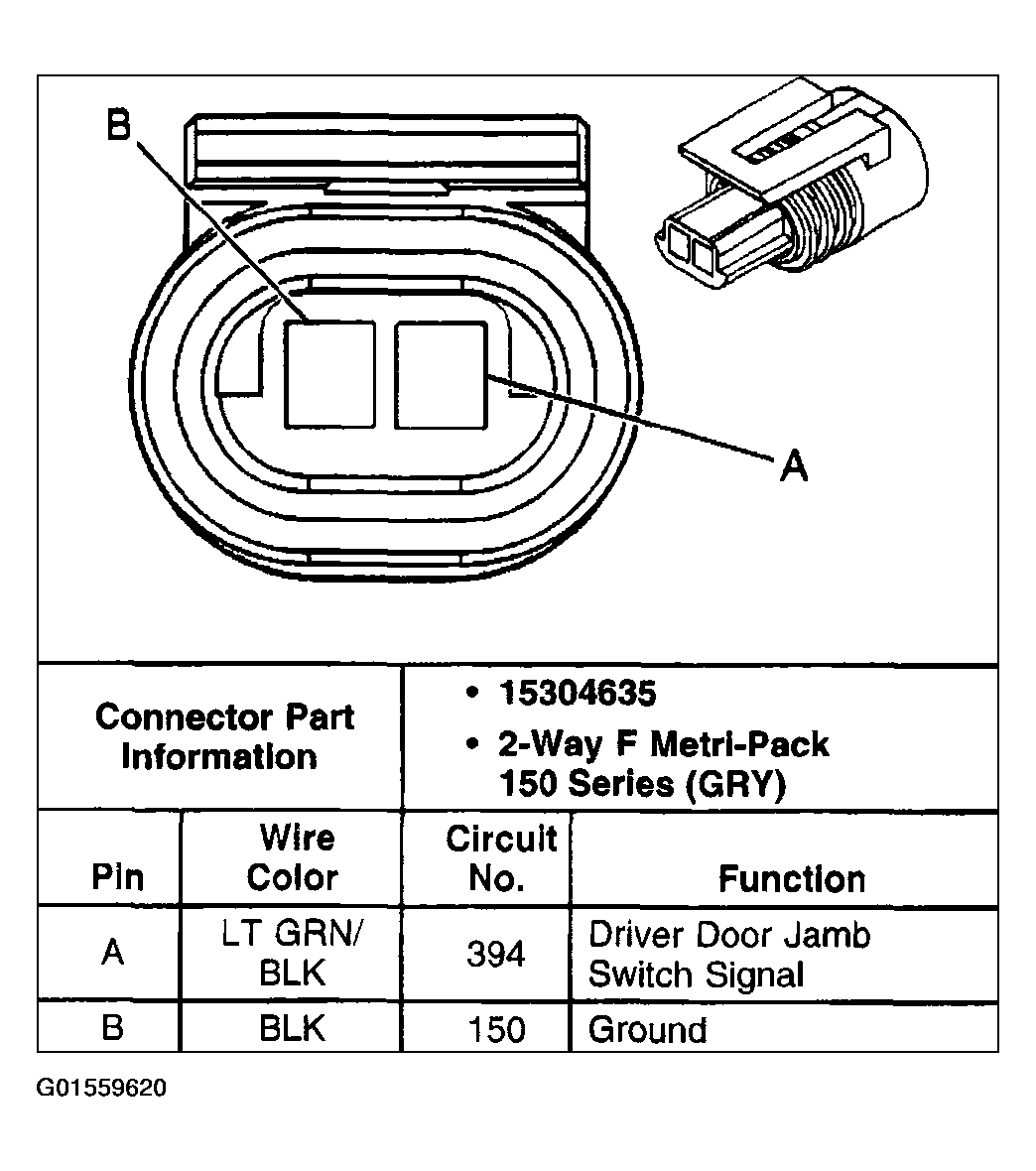

Fig 1: Identifying Power Door Systems Connector End View - Door Jamb Switch (Driver)

G01559620

Courtesy of GENERAL MOTORS CORP.

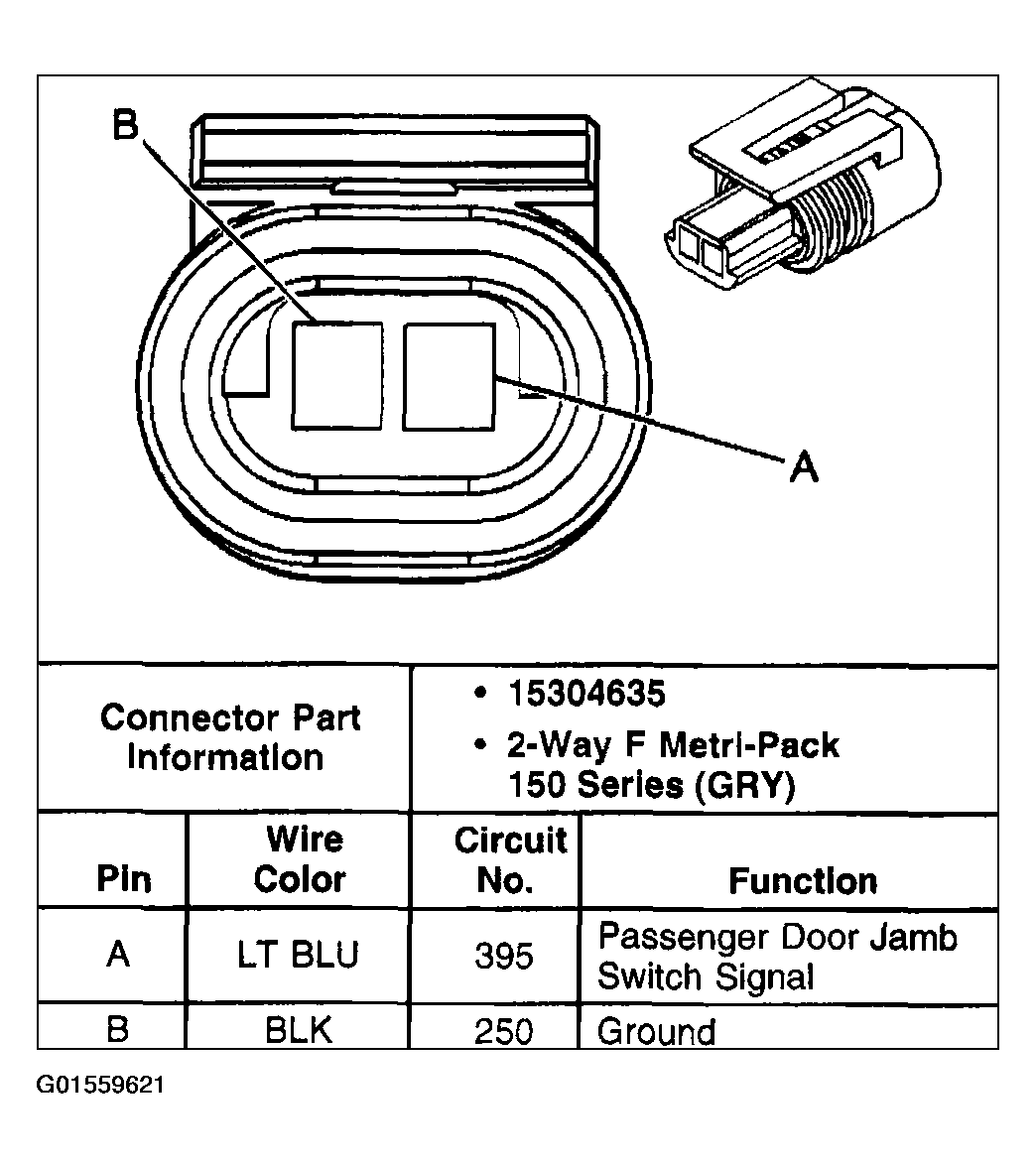

Fig 2: Identifying Power Door Systems Connector End View - Door Jamb Switch (Front Passenger - Coupe)

G01559621

Courtesy of GENERAL MOTORS CORP.

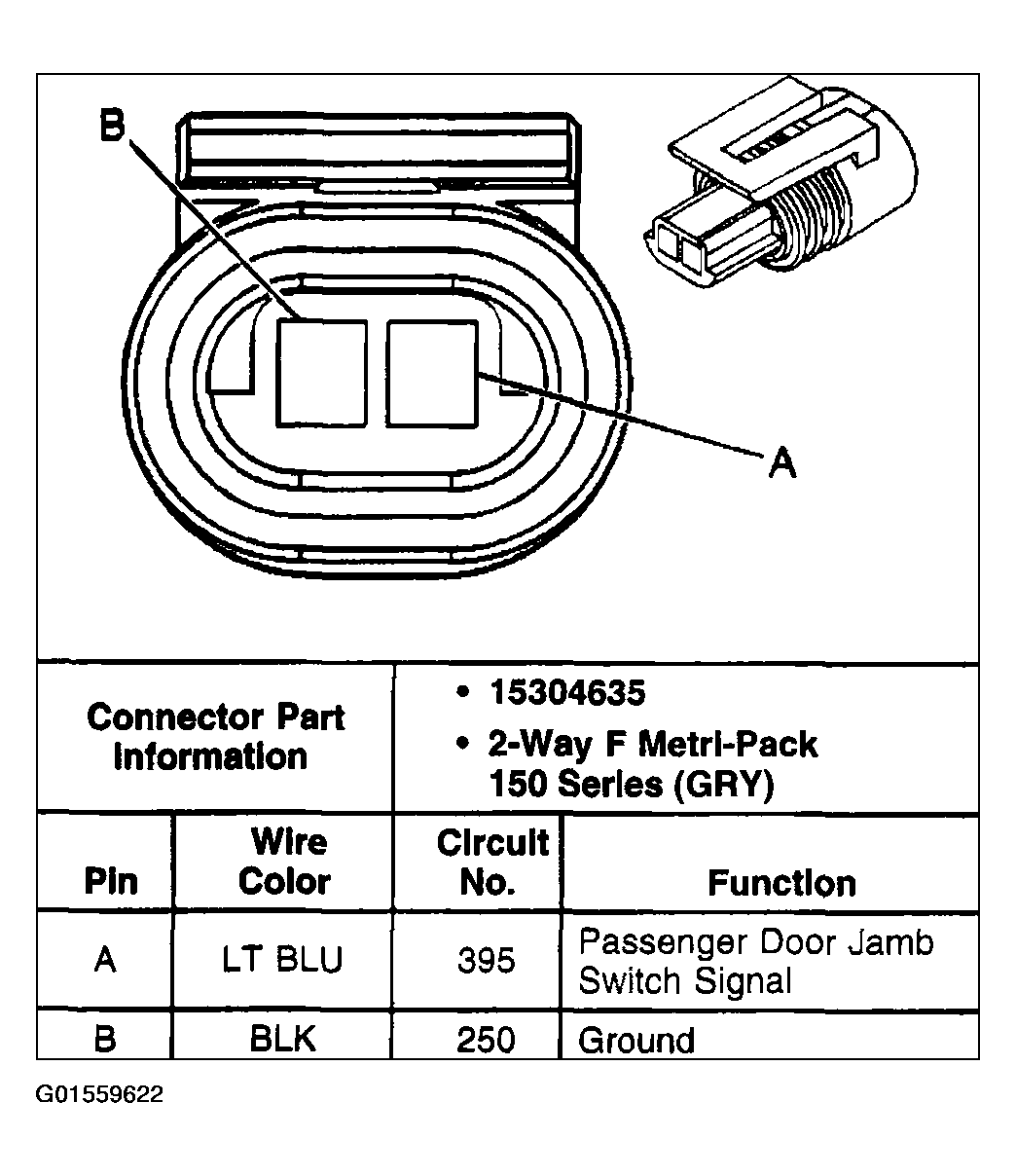

Fig 3: Identifying Power Door Systems Connector End View - Door Jamb Switch (Front Passenger - Sedan)

G01559622

Courtesy of GENERAL MOTORS CORP.

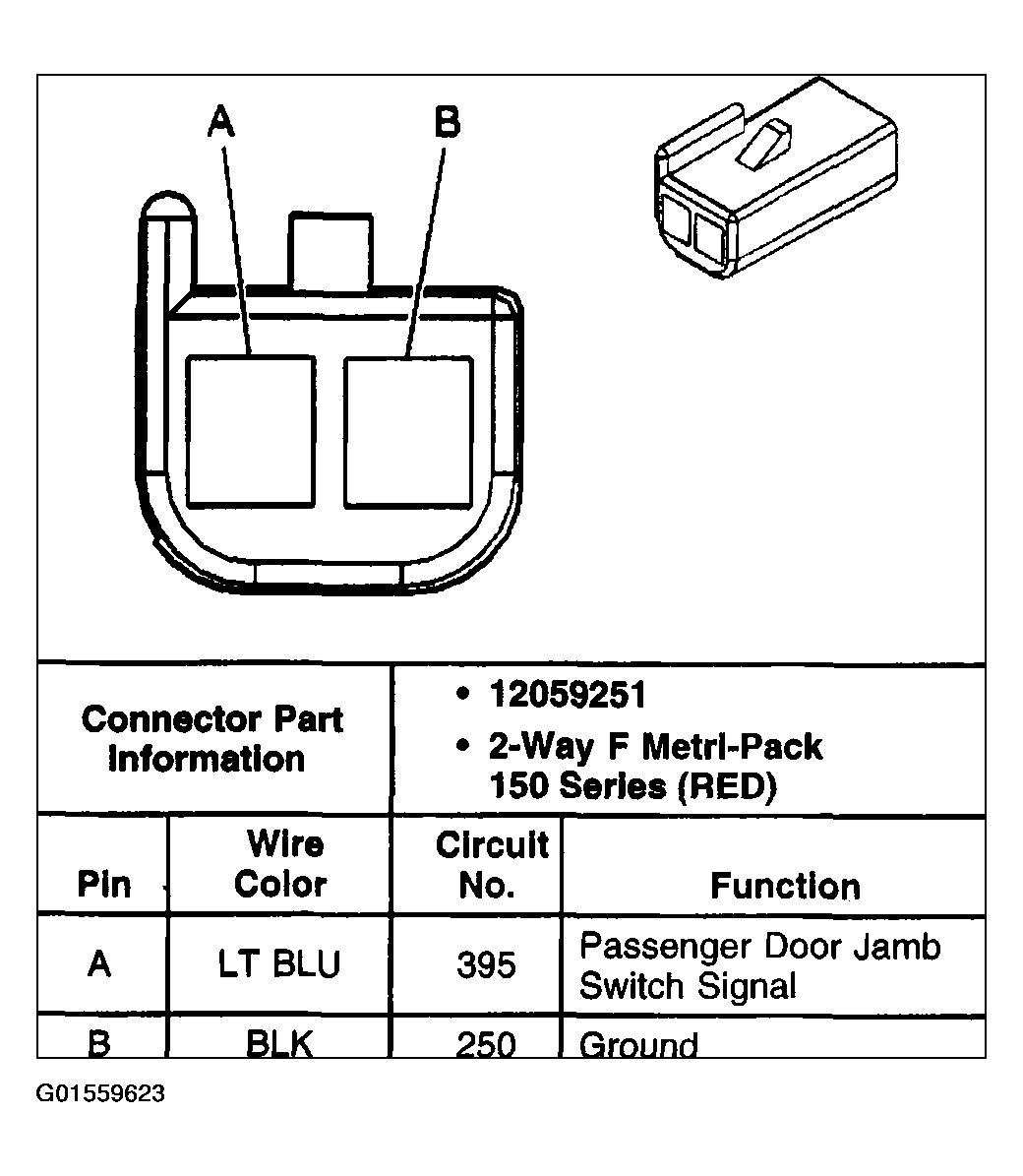

Fig 4: Identifying Power Door Systems Connector End View - Door Jamb Switch (RR)

G01559623

Courtesy of GENERAL MOTORS CORP.

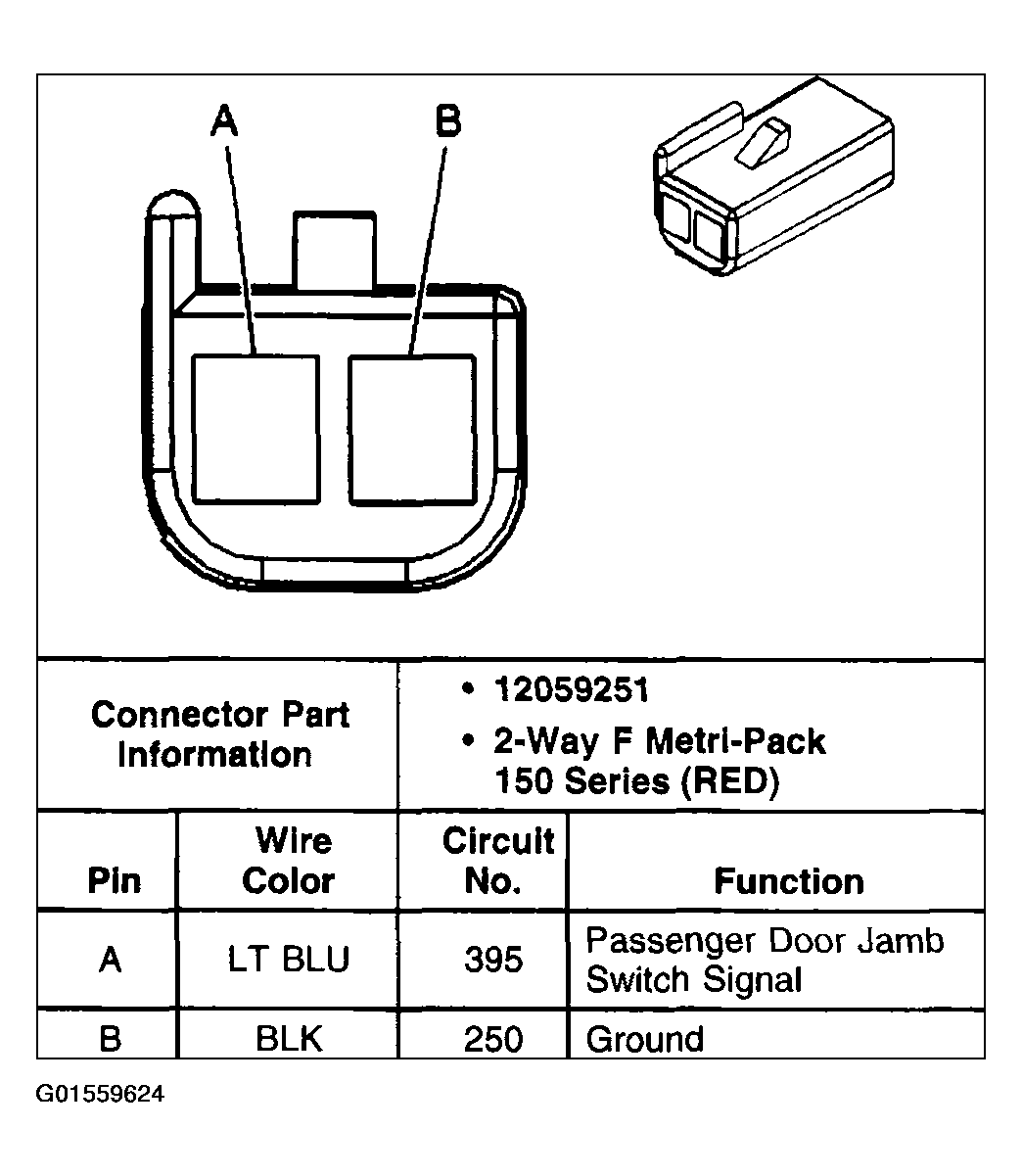

Fig 5: Identifying Power Door Systems Connector End View - Door Jamb Switch (LR)

G01559624

Courtesy of GENERAL MOTORS CORP.

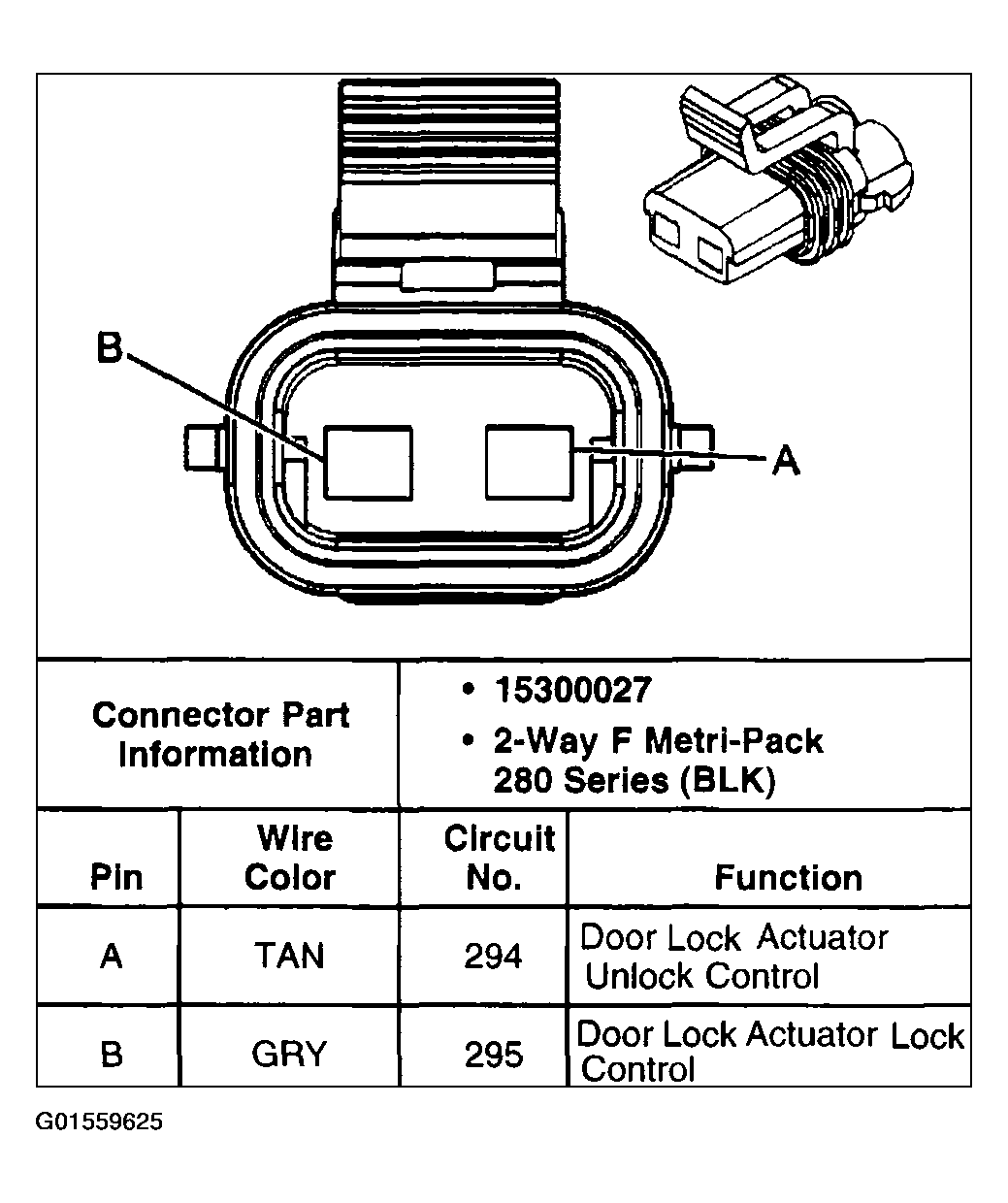

Fig 6: Identifying Power Door Systems Connector End View - Door Lock Actuator (Driver)

G01559625

Courtesy of GENERAL MOTORS CORP.

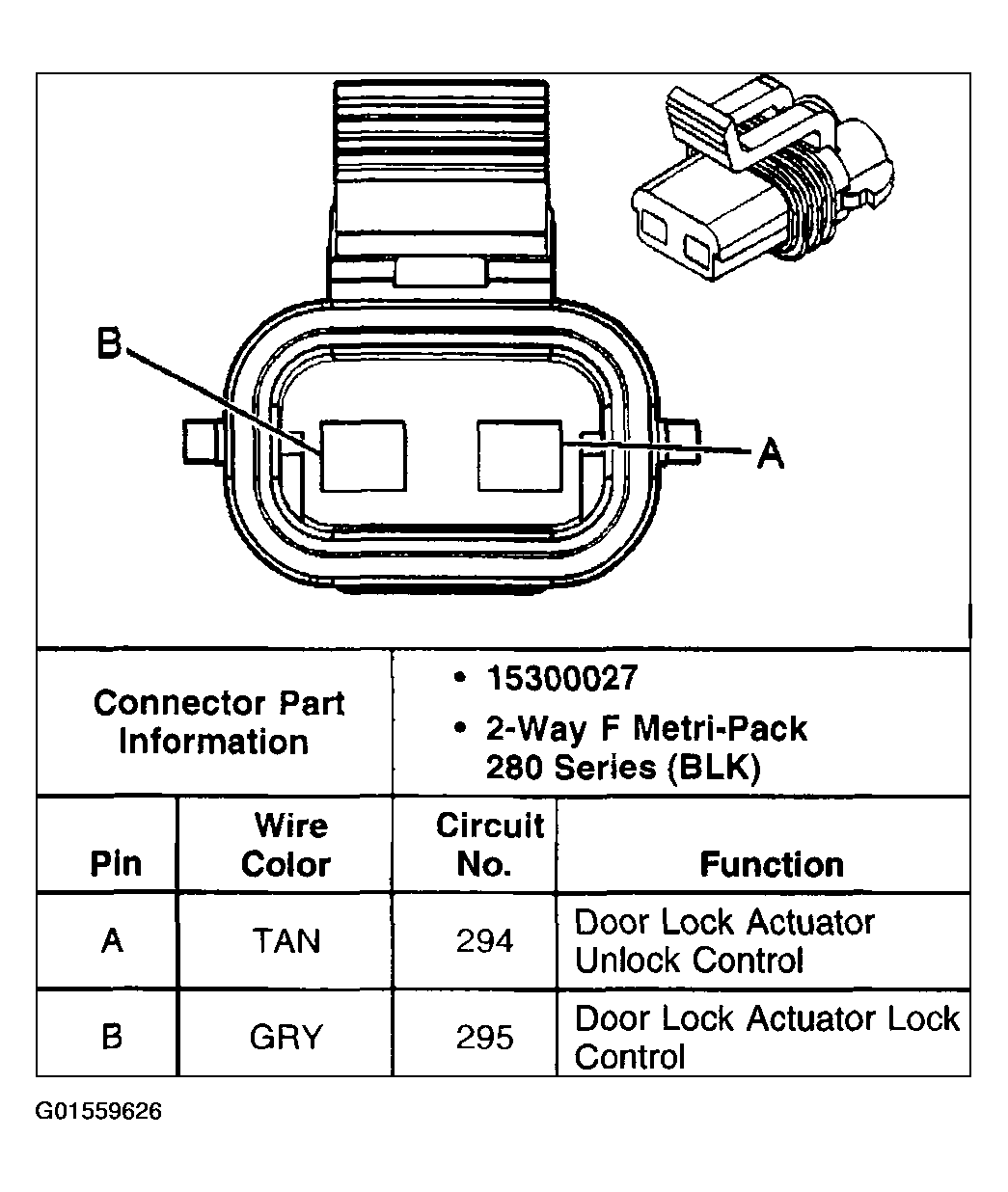

Fig 7: Identifying Power Door Systems Connector End View - Door Lock Actuator (Front Passenger)

G01559626

Courtesy of GENERAL MOTORS CORP.

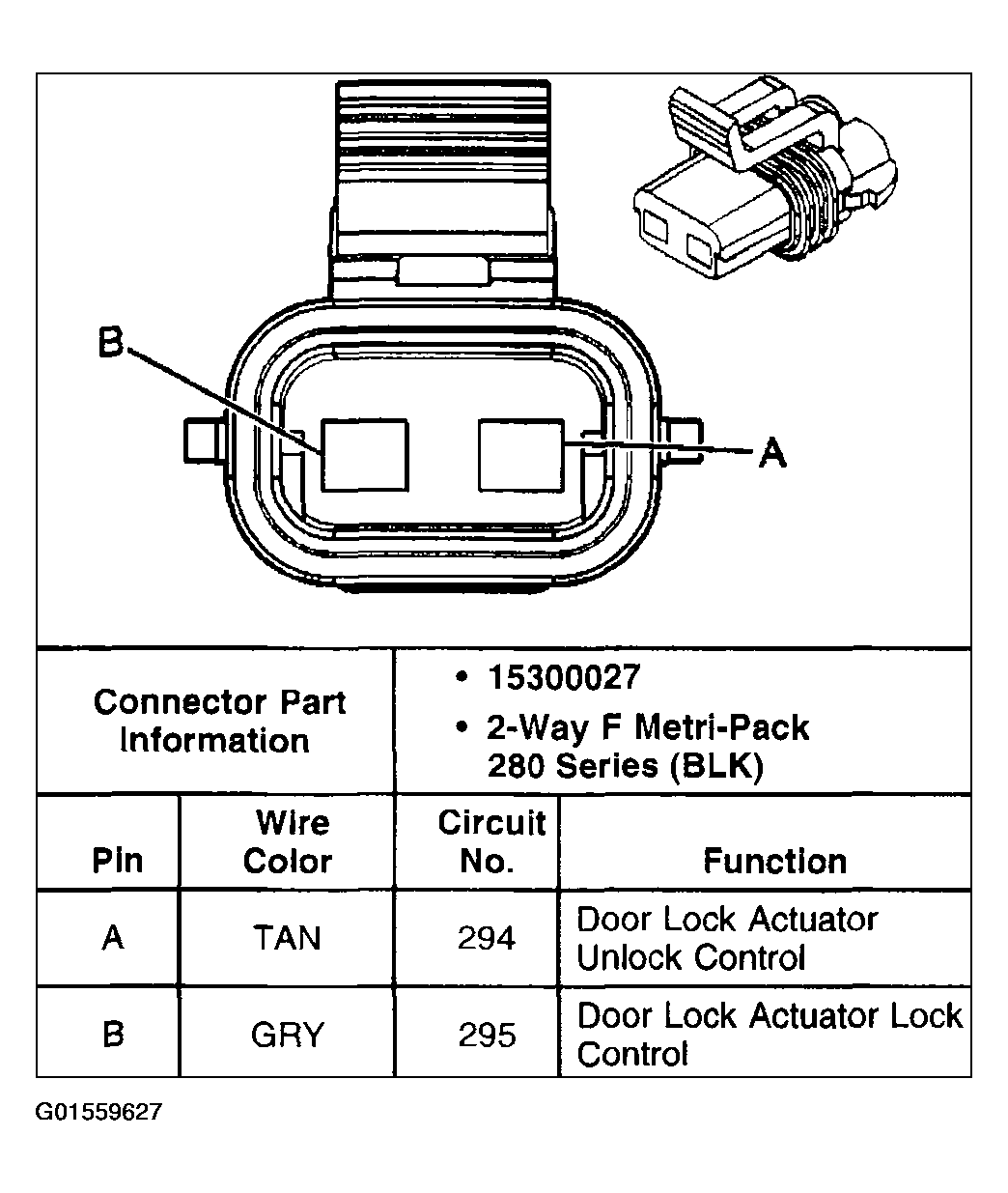

Fig 8: Identifying Power Door Systems Connector End View - Door Lock Actuator (LR)

G01559627

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Power Door Systems Connector End View - Door Lock Actuator (RR)

G01559628

Courtesy of GENERAL MOTORS CORP.

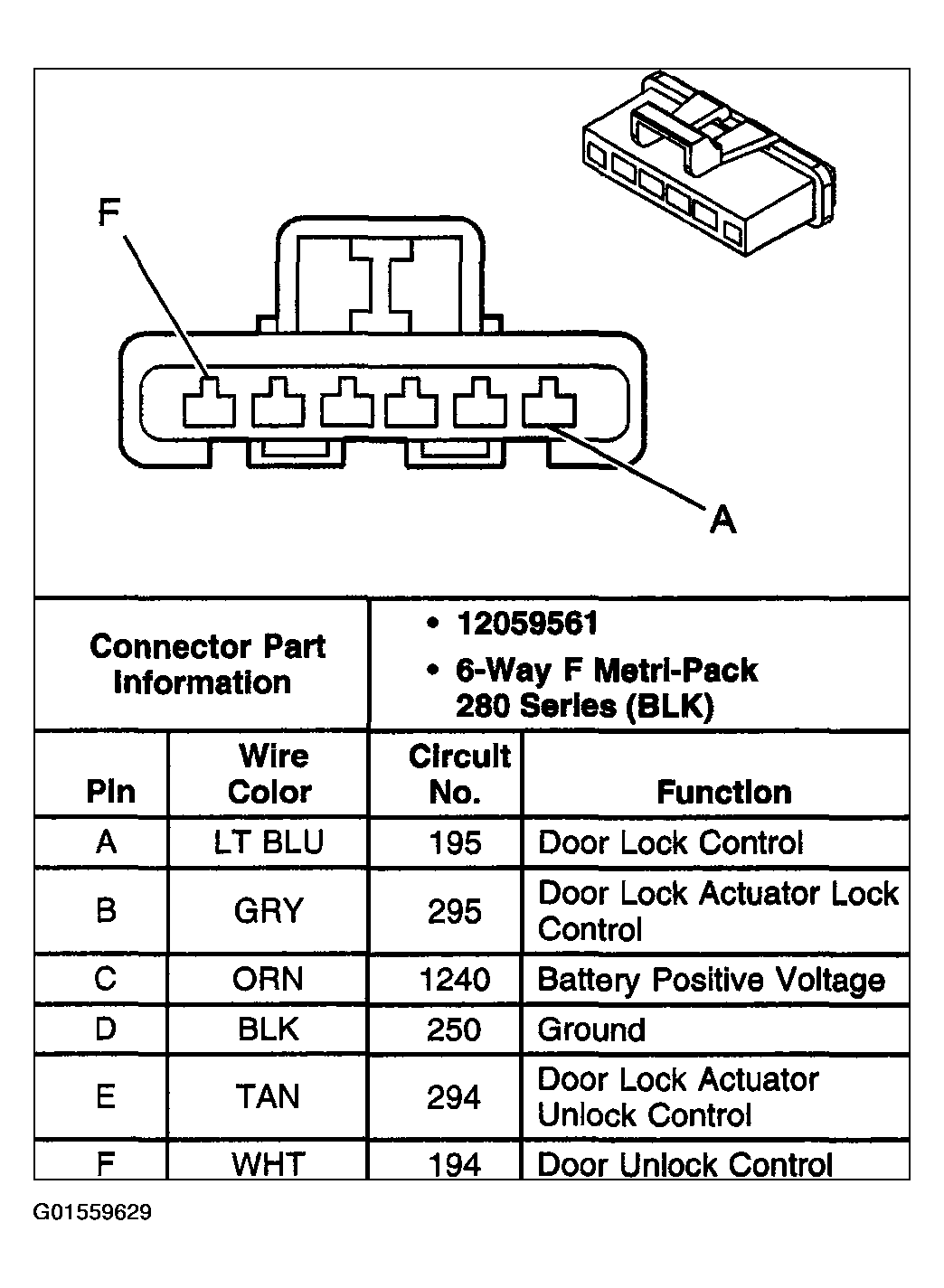

Fig 10: Identifying Power Door Systems Connector End View - Door Lock Relay

G01559629

Courtesy of GENERAL MOTORS CORP.

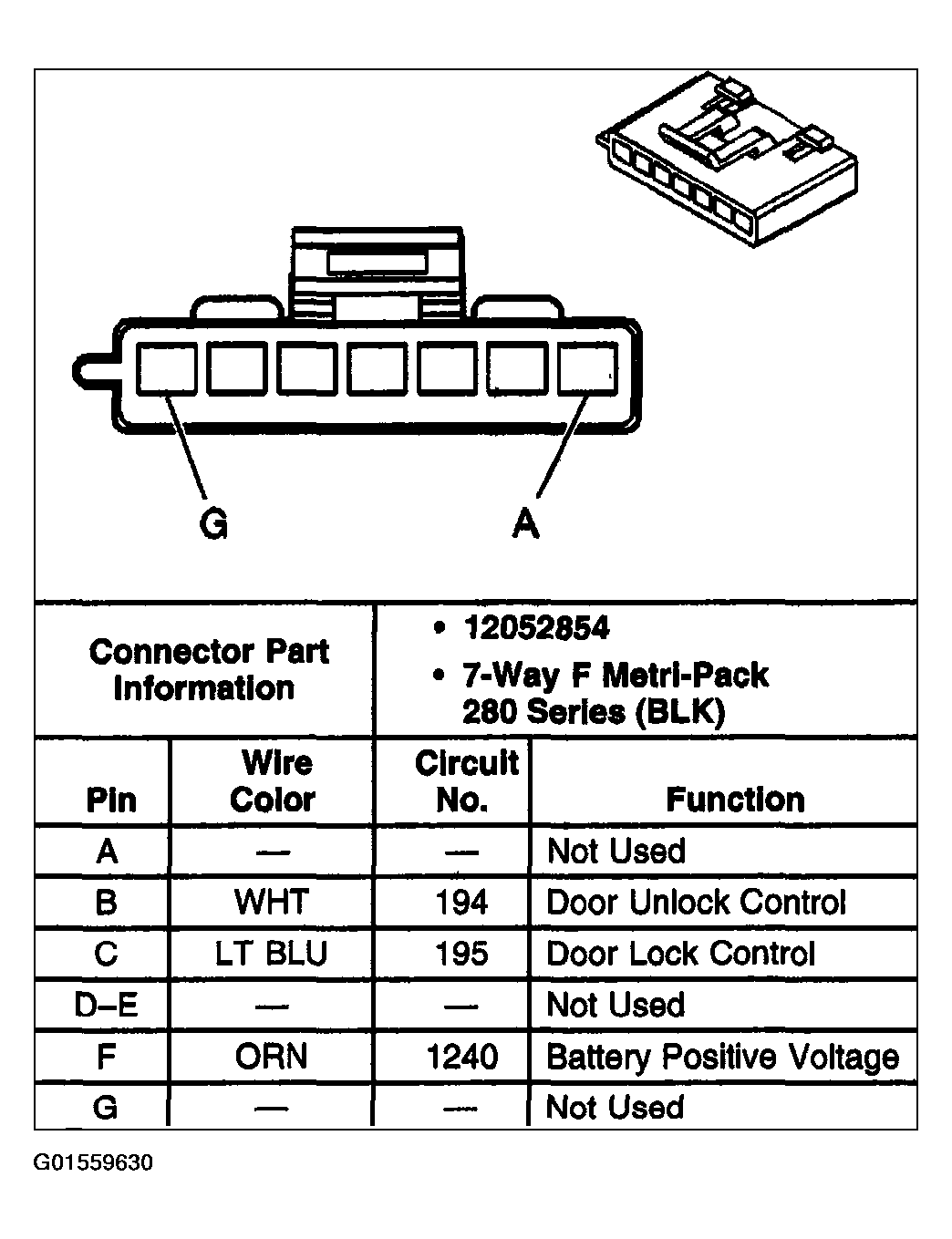

Fig 11: Identifying Power Door Systems Connector End View - Door Lock Switch (Driver - w/AUO)

G01559630

Courtesy of GENERAL MOTORS CORP.

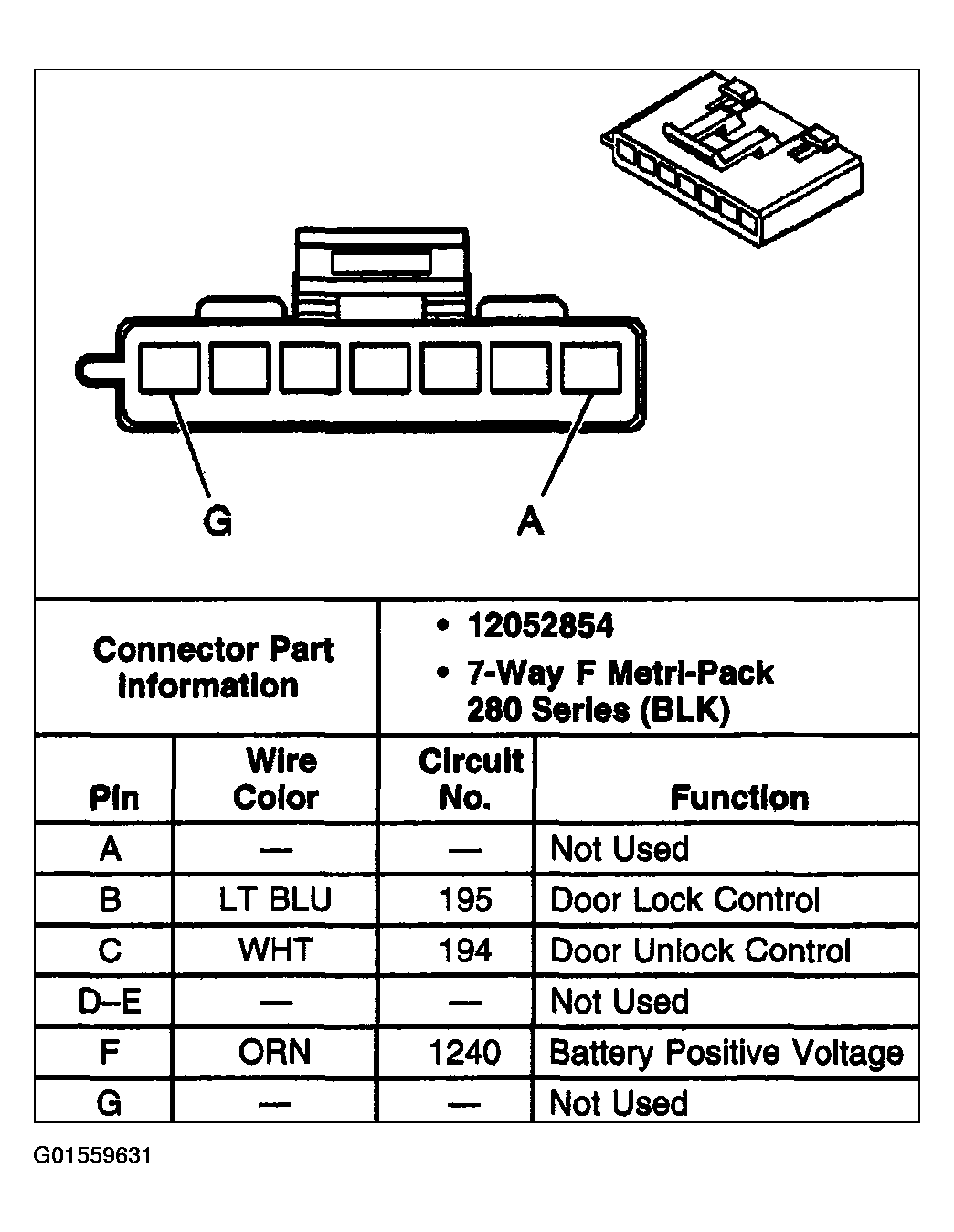

Fig 12: Identifying Power Door Systems Connector End View - Door Lock Switch (Front Passenger - w/AUO)

G01559631

Courtesy of GENERAL MOTORS CORP.

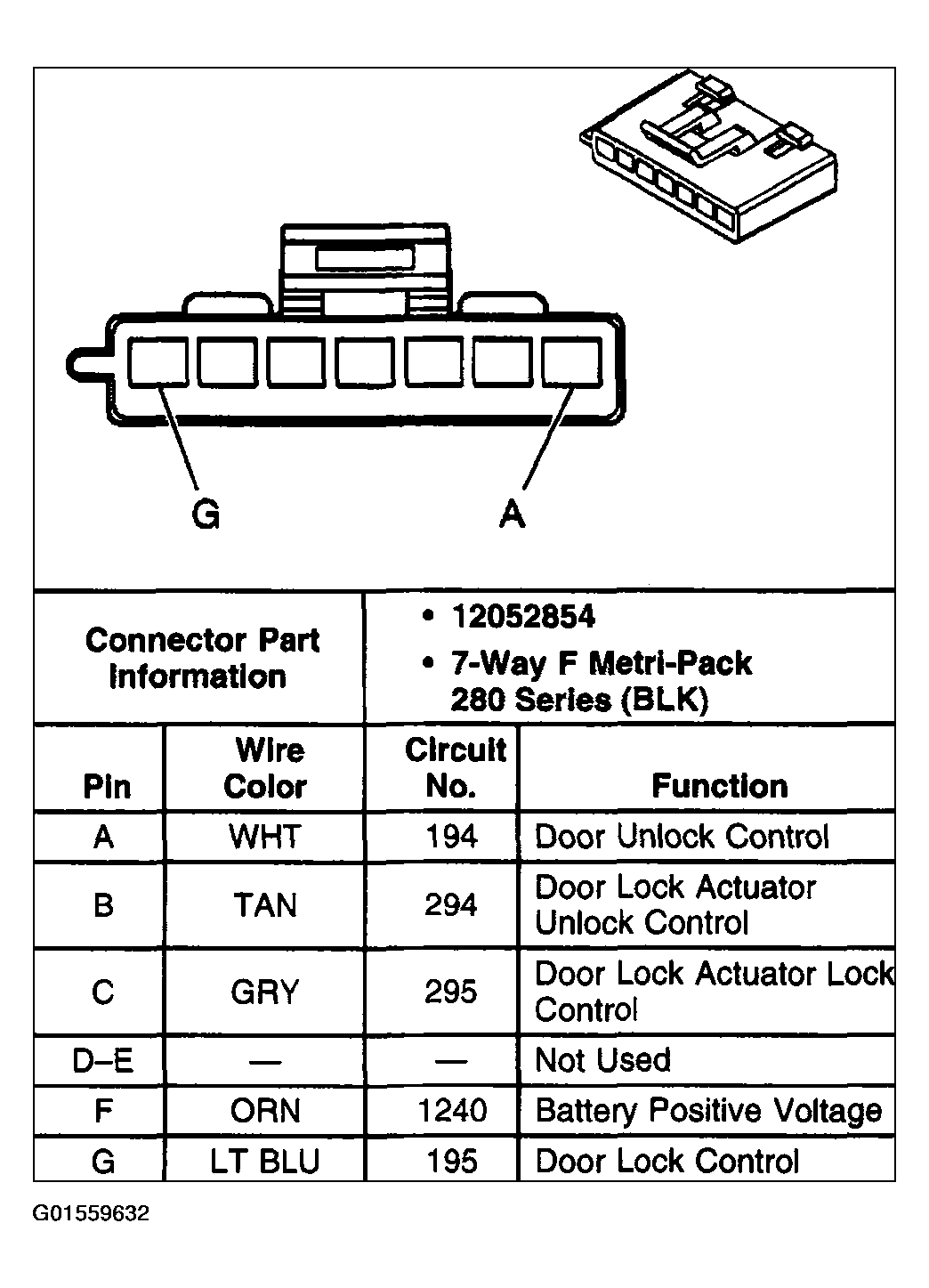

Fig 13: Identifying Power Door Systems Connector End View - Door Lock Switch (Driver - w/o AUO)

G01559632

Courtesy of GENERAL MOTORS CORP.

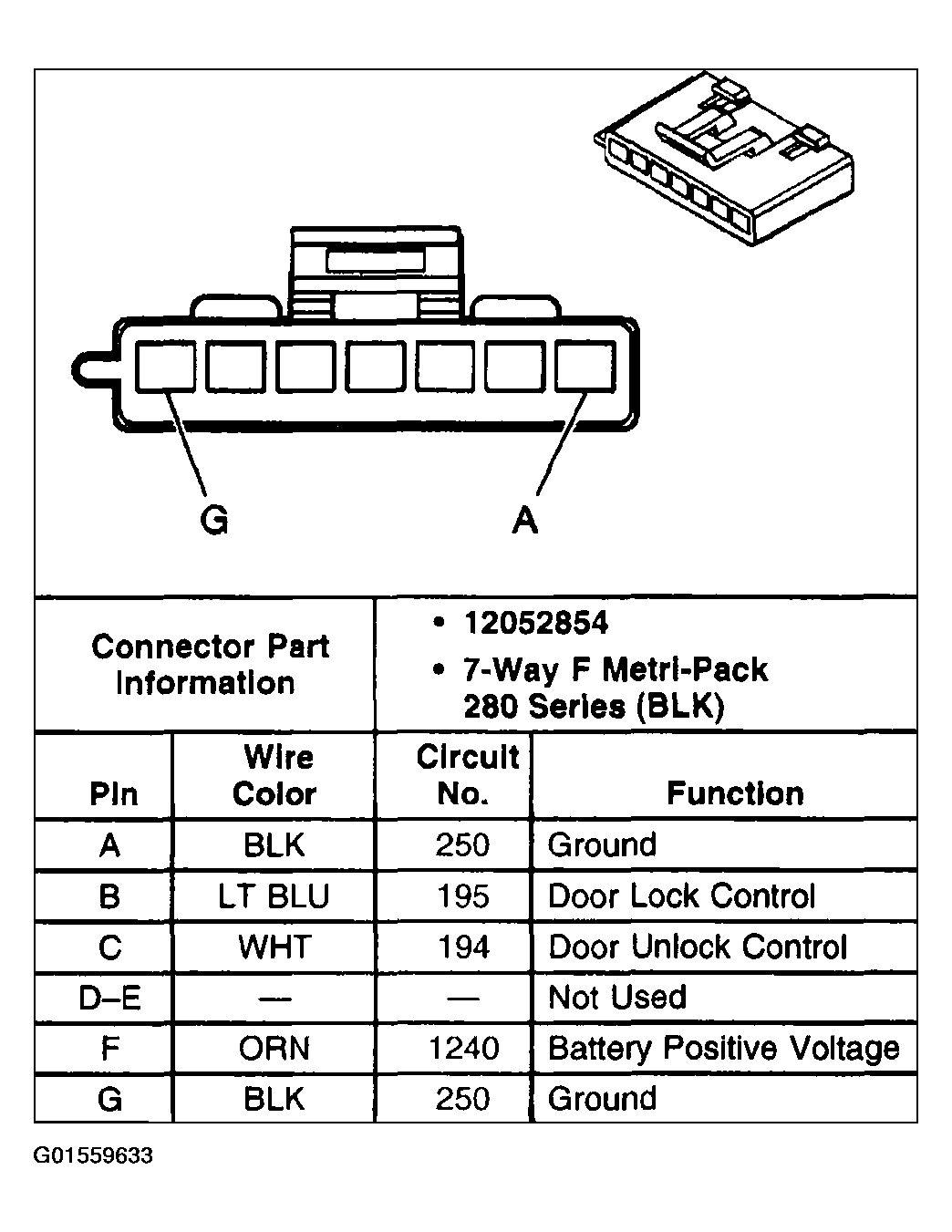

Fig 14: Identifying Power Door Systems Connector End View - Door Lock Switch (Front Passenger - w/o AUO)

G01559633

Courtesy of GENERAL MOTORS CORP.

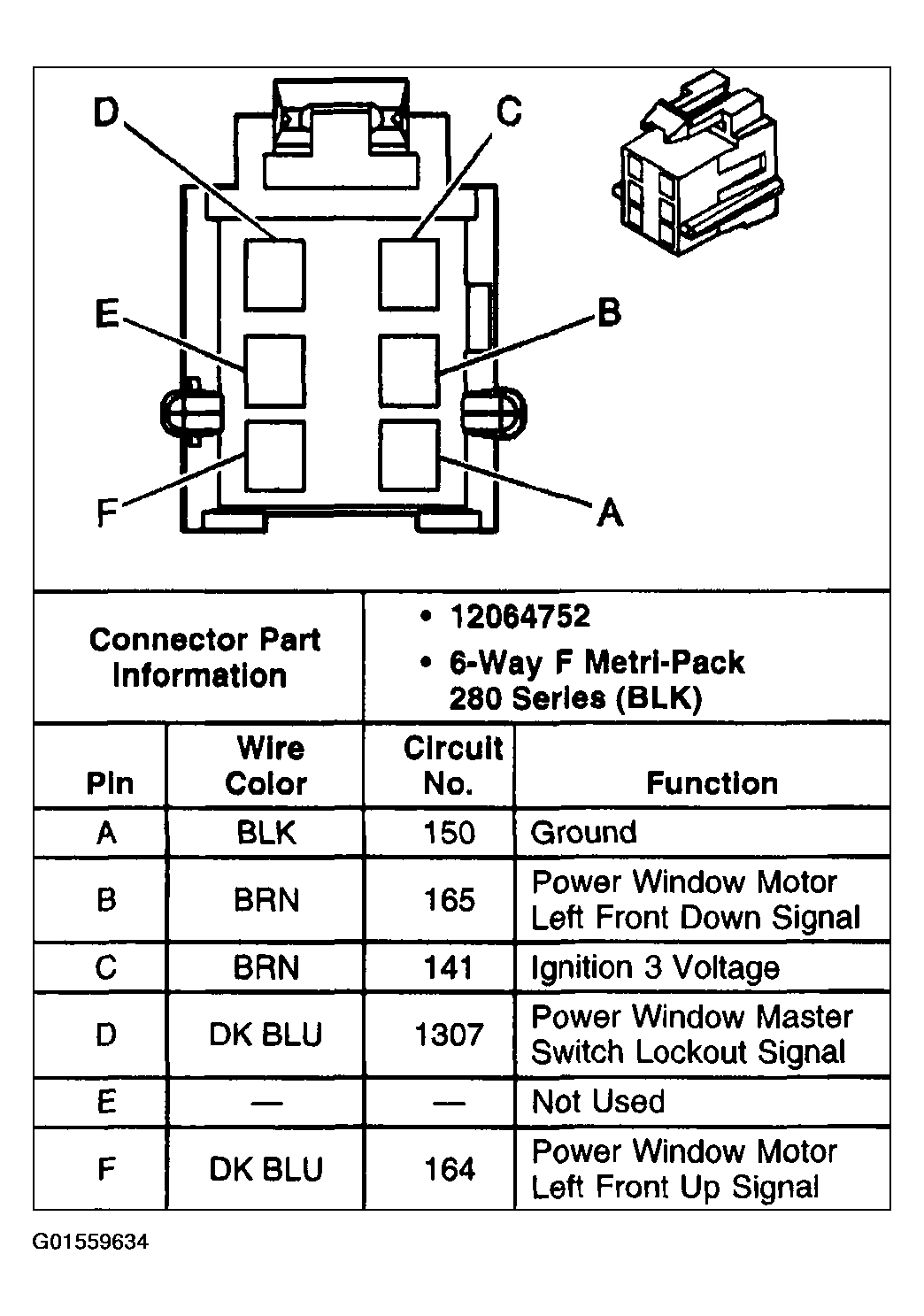

Fig 15: Identifying Power Door Systems Connector End View - Master Window Switch C1

G01559634

Courtesy of GENERAL MOTORS CORP.

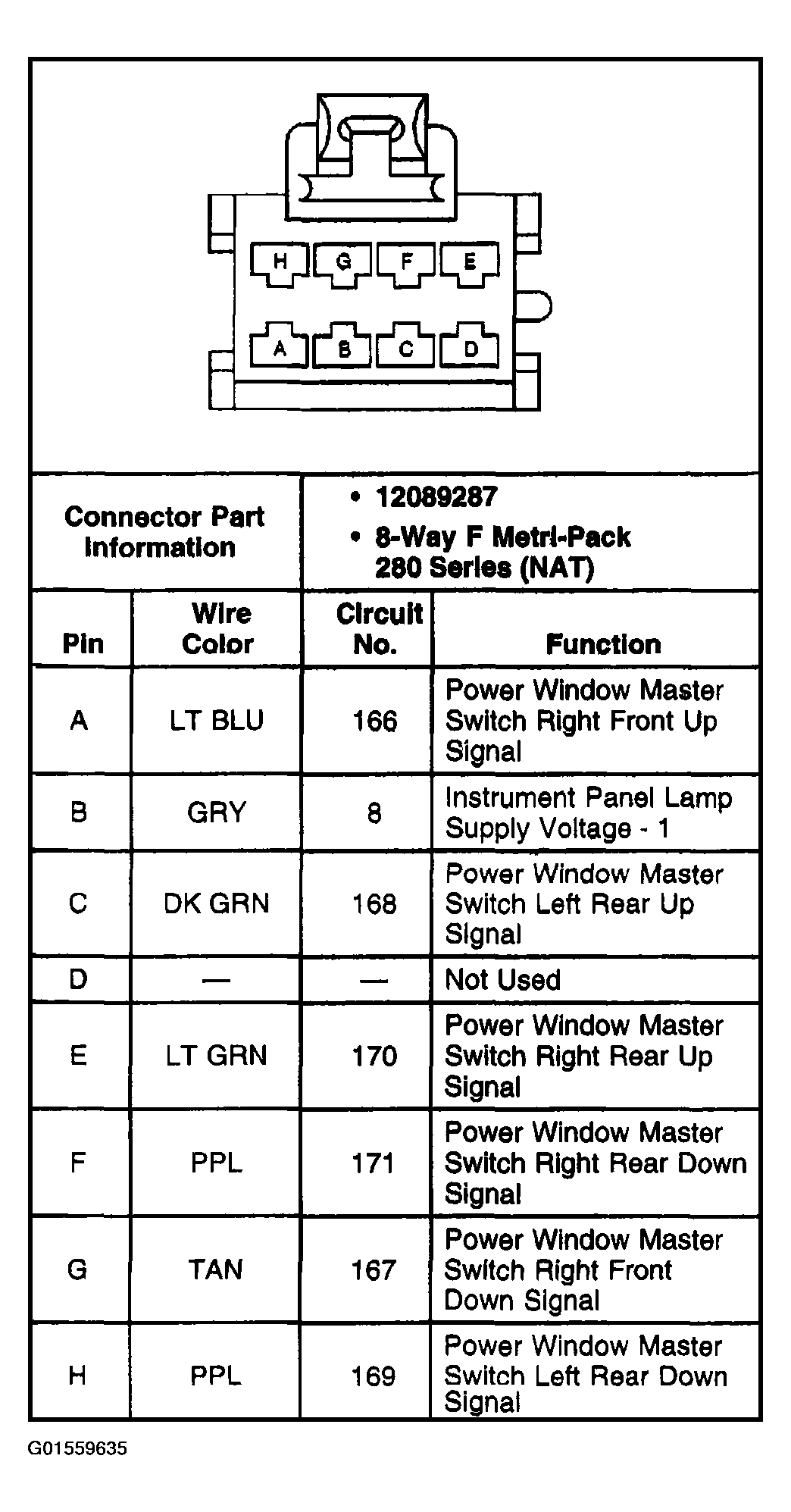

Fig 16: Identifying Power Door Systems Connector End View - Master Window Switch C2

G01559635

Courtesy of GENERAL MOTORS CORP.

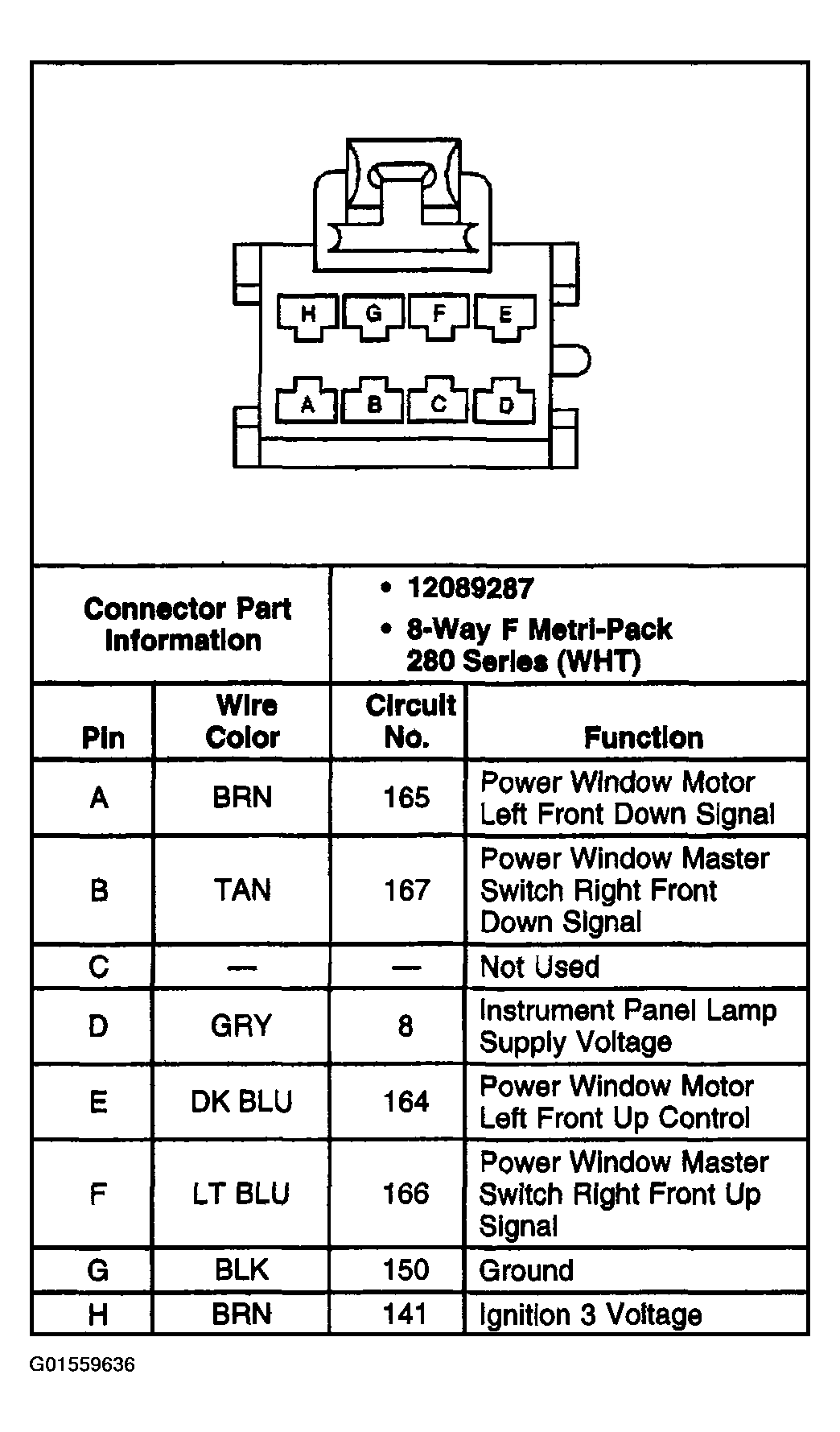

Fig 17: Identifying Power Door Systems Connector End View - Master Window Switch - (Coupe)

G01559636

Courtesy of GENERAL MOTORS CORP.

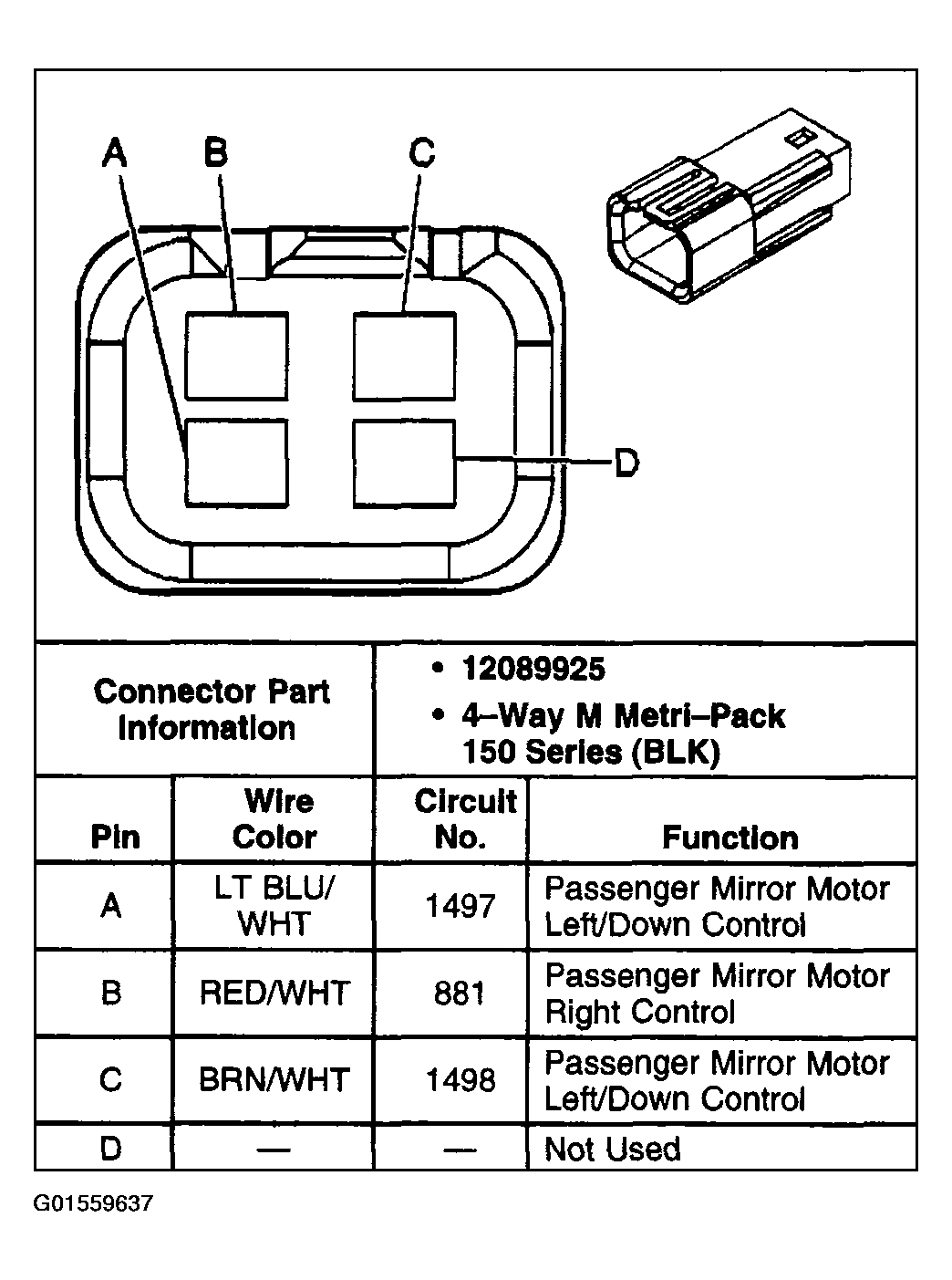

Fig 18: Identifying Power Door Systems Connector End View - Outside Rearview Mirror (Right)

G01559637

Courtesy of GENERAL MOTORS CORP.

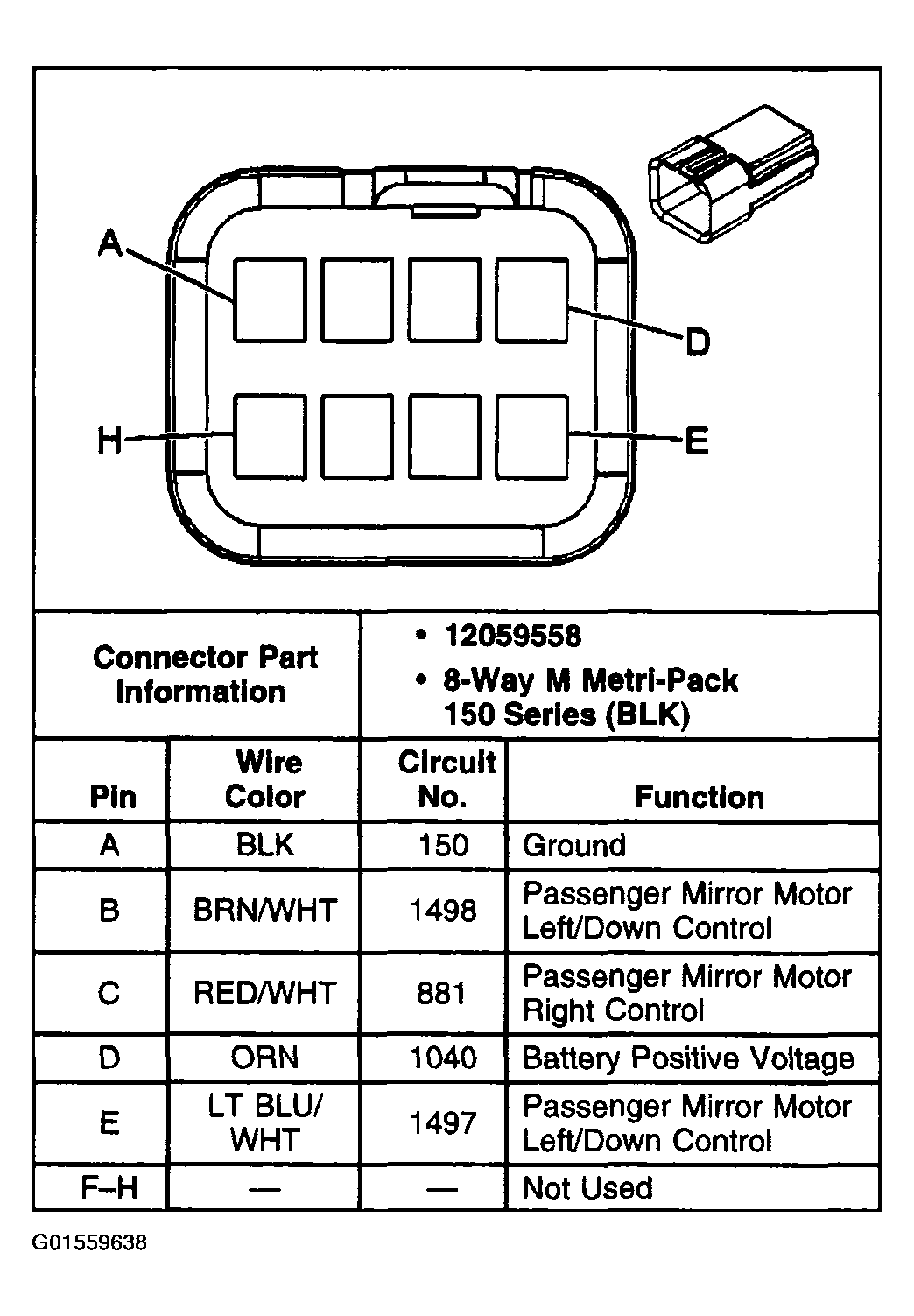

Fig 19: Identifying Power Door Systems Connector End View - Outside Rearview Mirror Switch C1

G01559638

Courtesy of GENERAL MOTORS CORP.

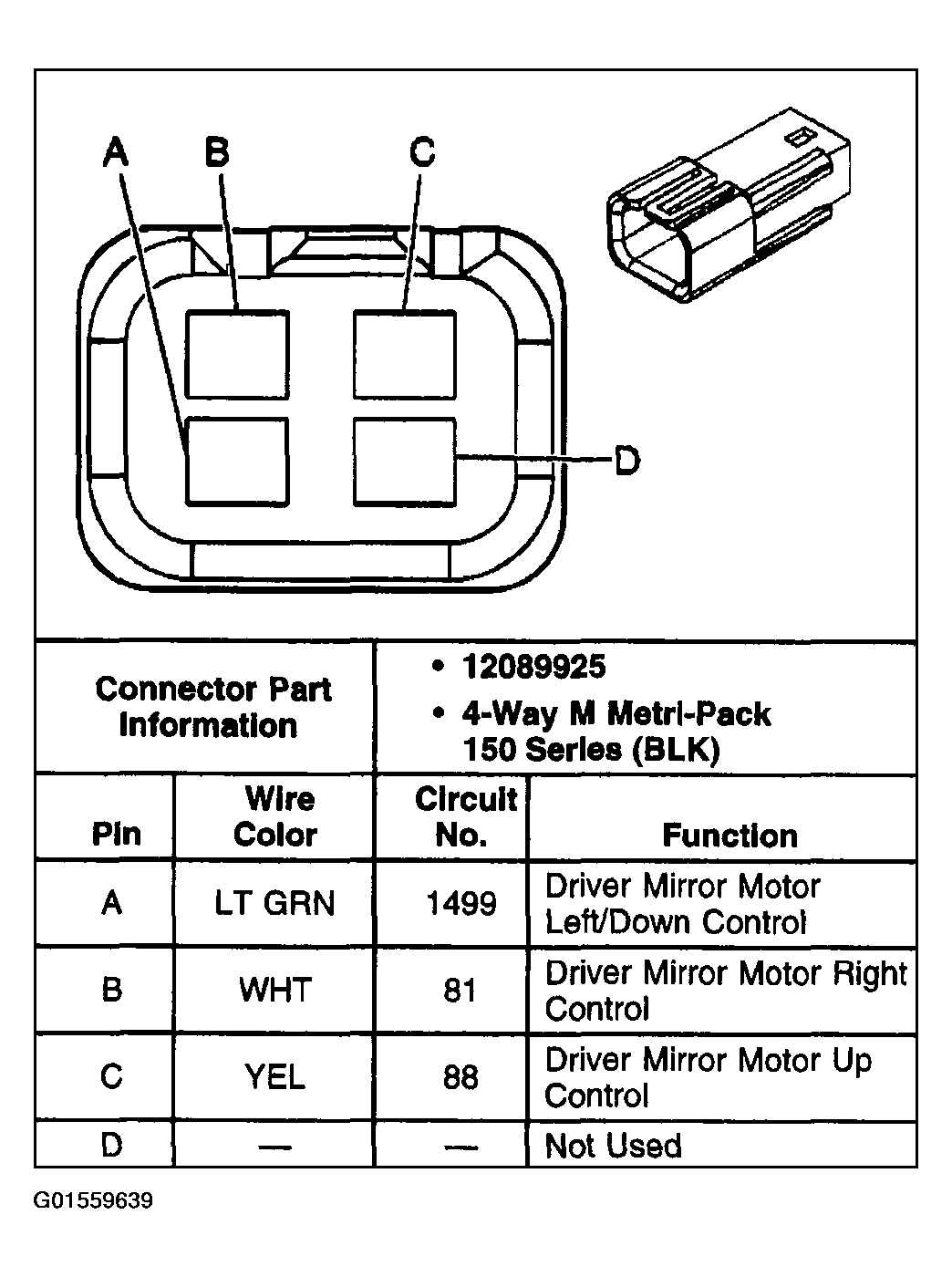

Fig 20: Identifying Power Door Systems Connector End View - Outside Rearview Mirror Switch C2

G01559639

Courtesy of GENERAL MOTORS CORP.

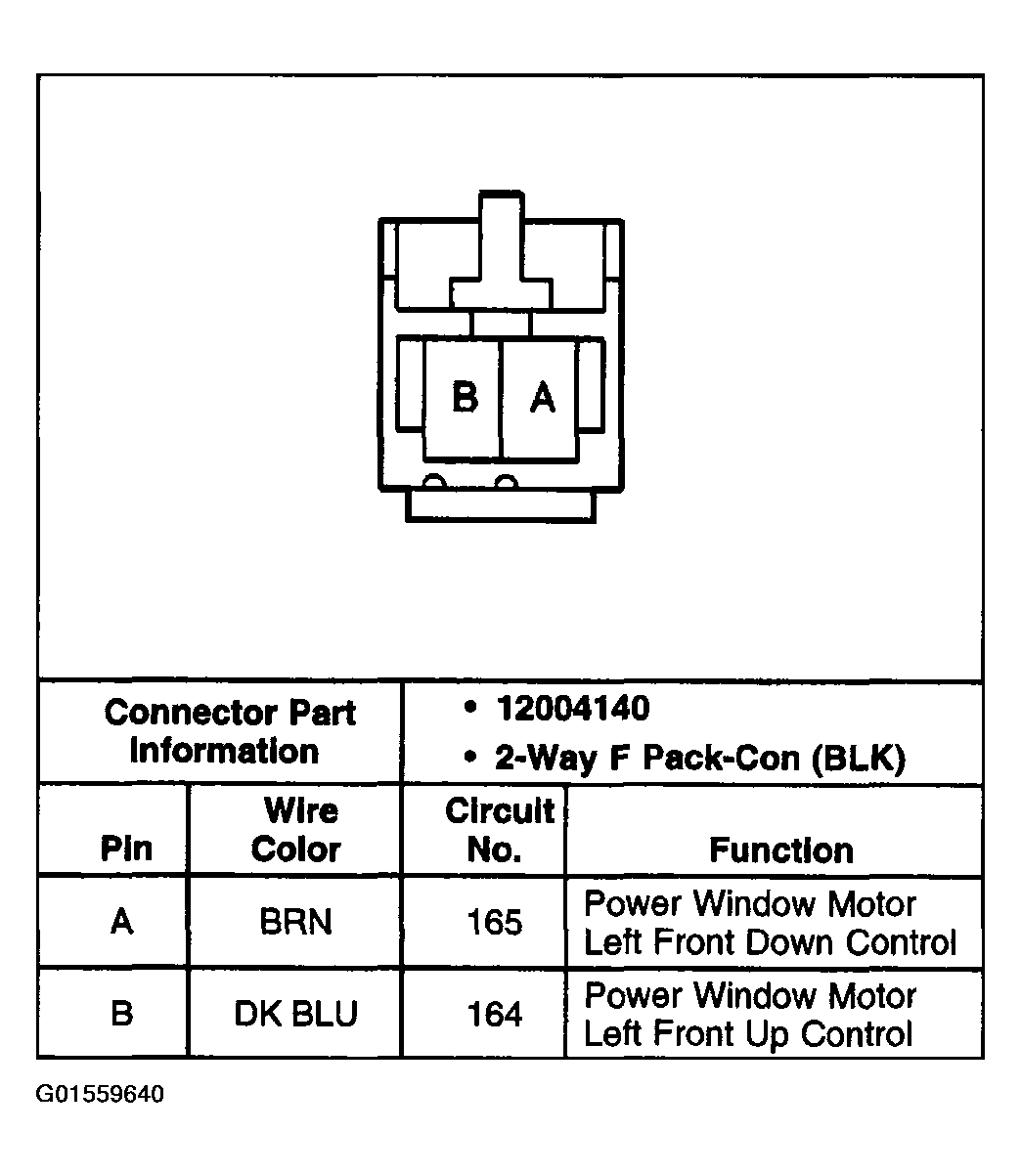

Fig 21: Identifying Power Door Systems Connector End View - Window Motor (Driver)

G01559640

Courtesy of GENERAL MOTORS CORP.

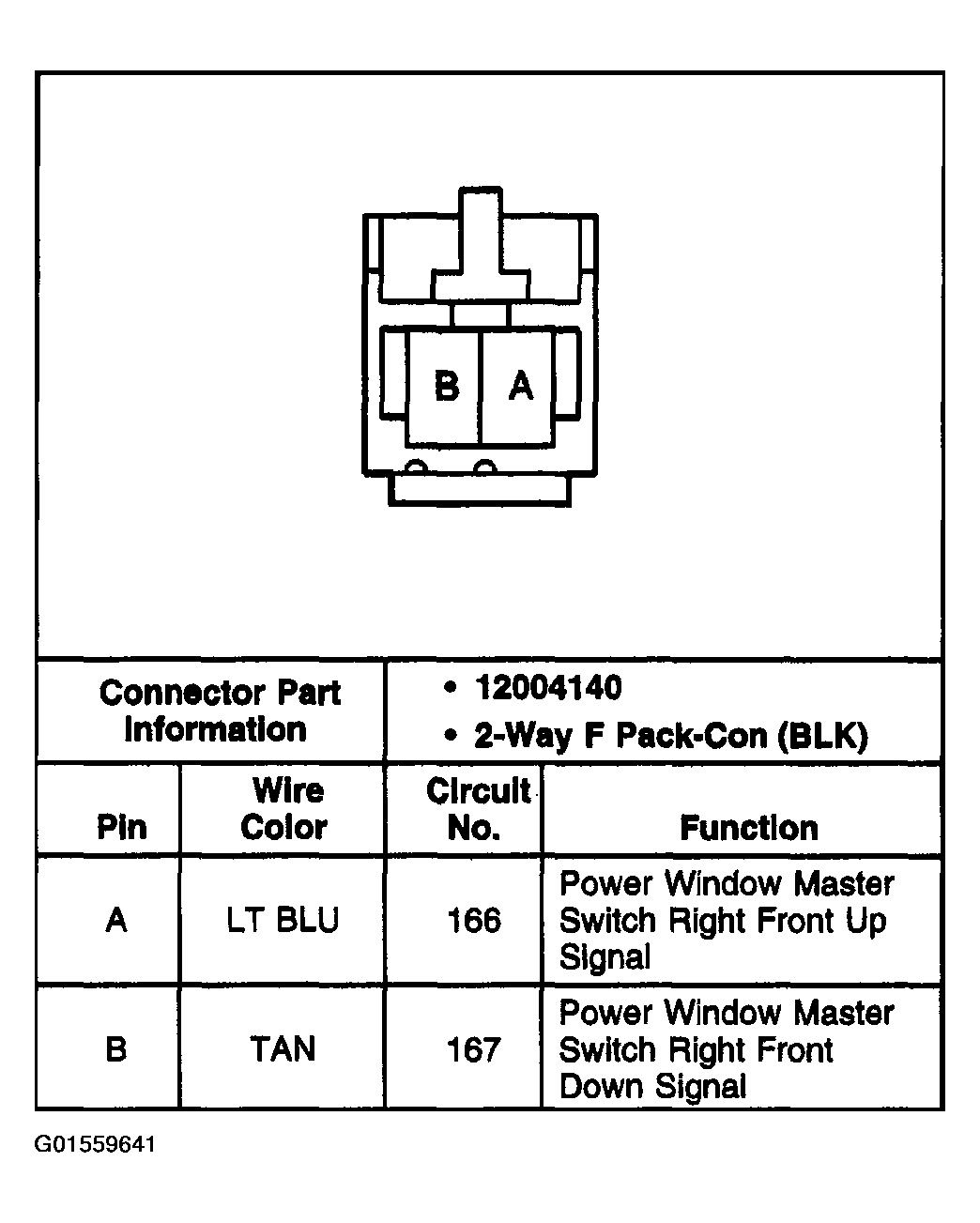

Fig 22: Identifying Power Door Systems Connector End View - Window Motor (Front Passenger)

G01559641

Courtesy of GENERAL MOTORS CORP.

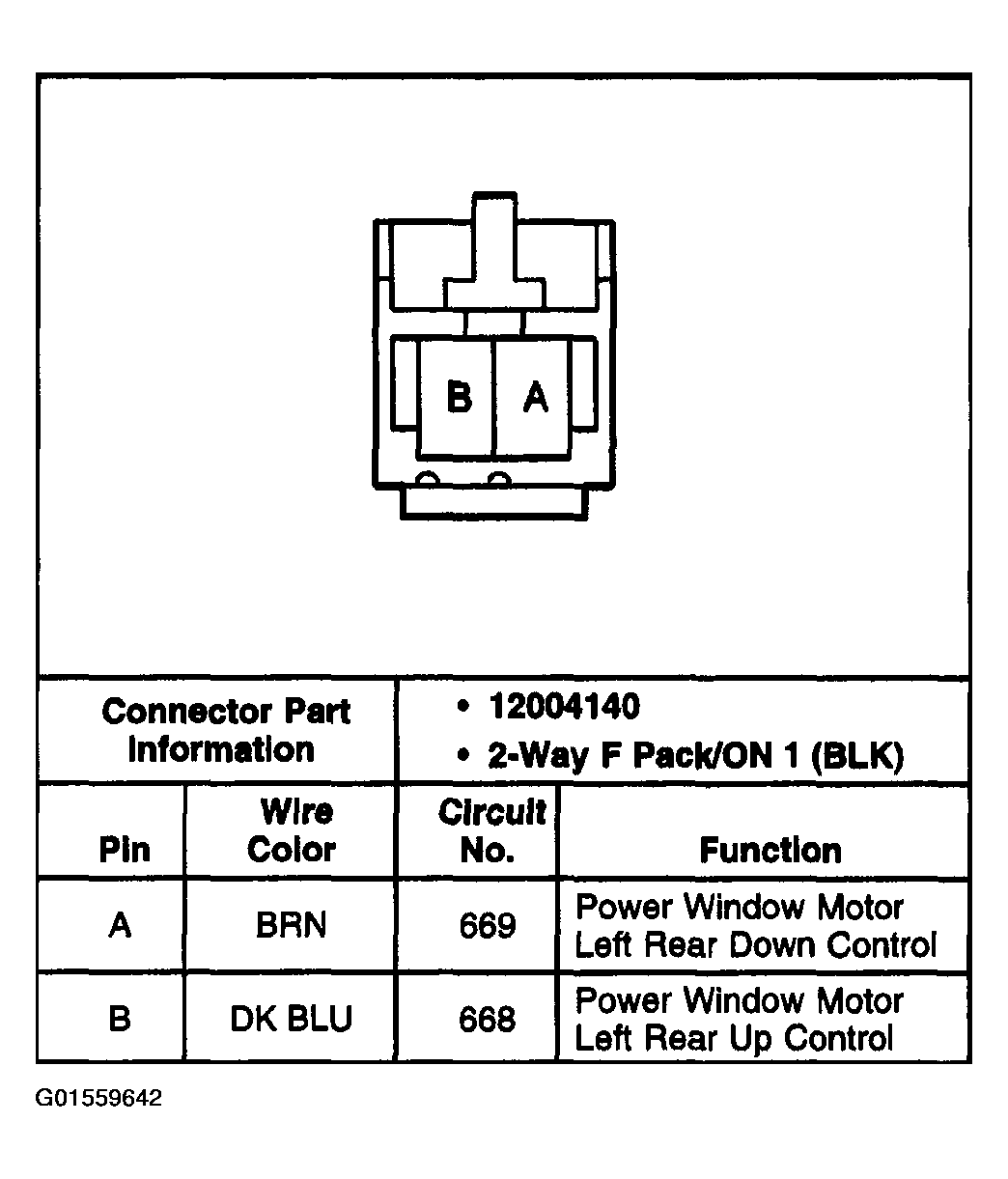

Fig 23: Identifying Power Door Systems Connector End View - Window Motor (LR)

G01559642

Courtesy of GENERAL MOTORS CORP.

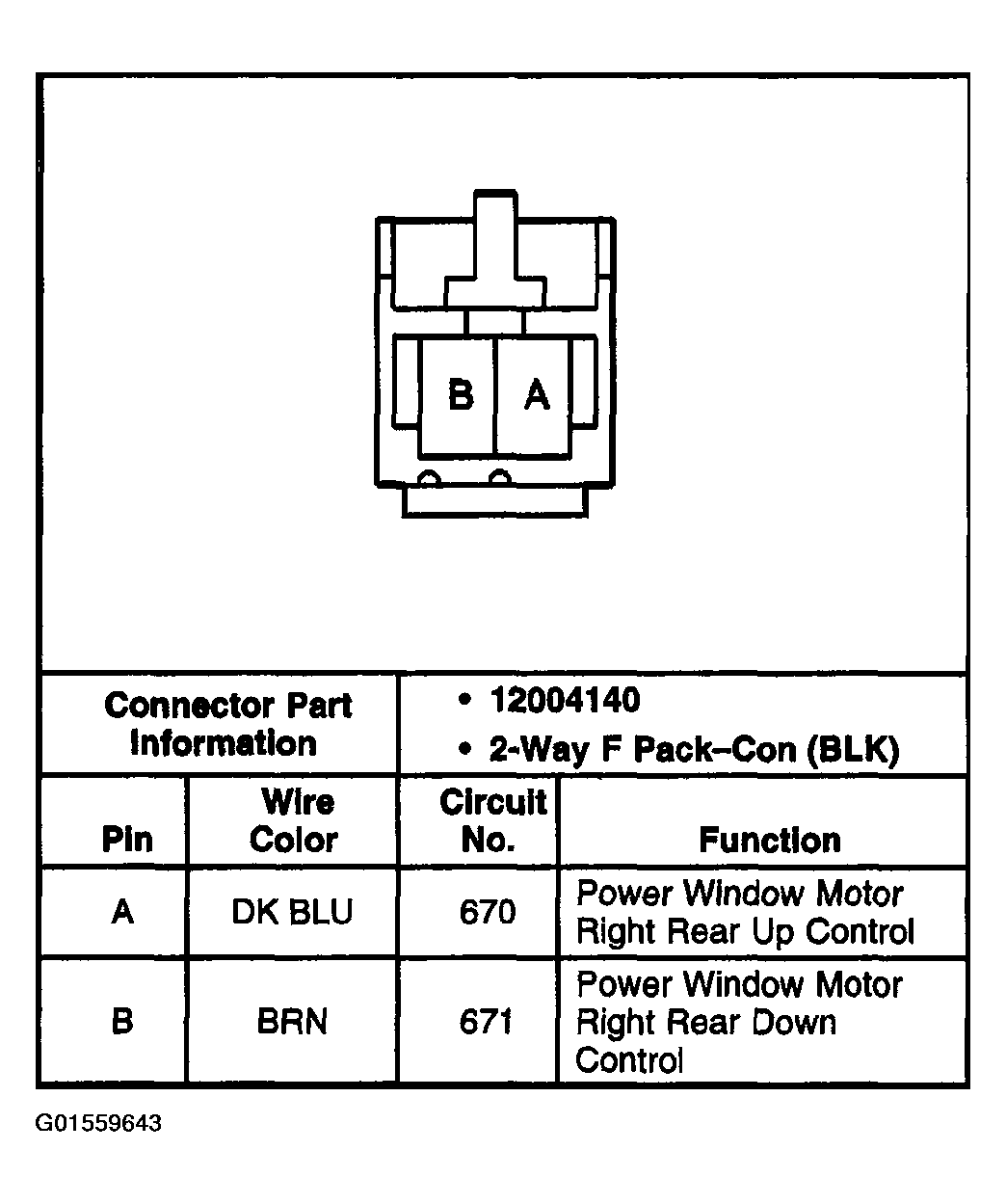

Fig 24: Identifying Power Door Systems Connector End View - Window Motor (RR)

G01559643

Courtesy of GENERAL MOTORS CORP.

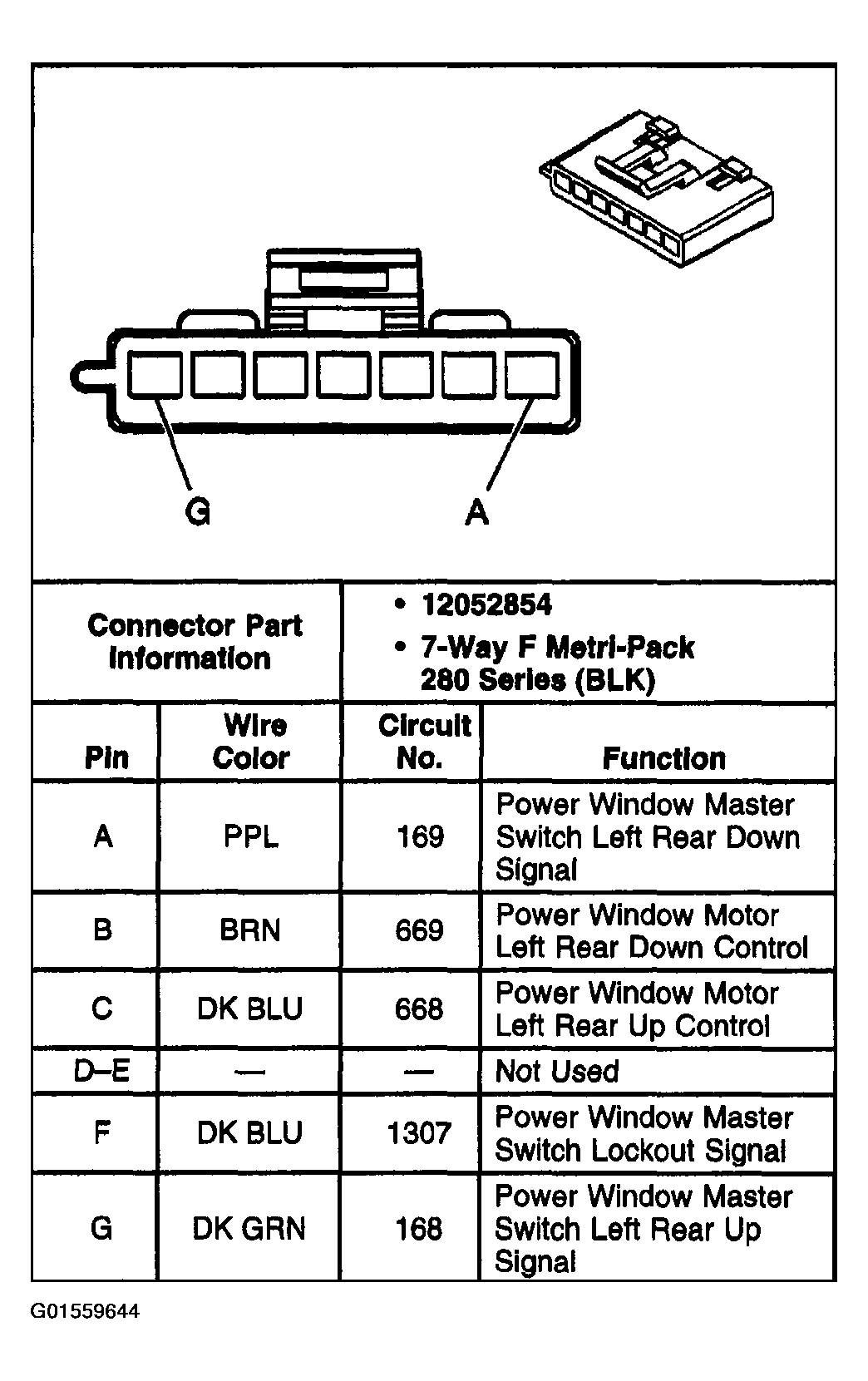

Fig 25: Identifying Power Door Systems Connector End View - Window Switch (LR)

G01559644

Courtesy of GENERAL MOTORS CORP.

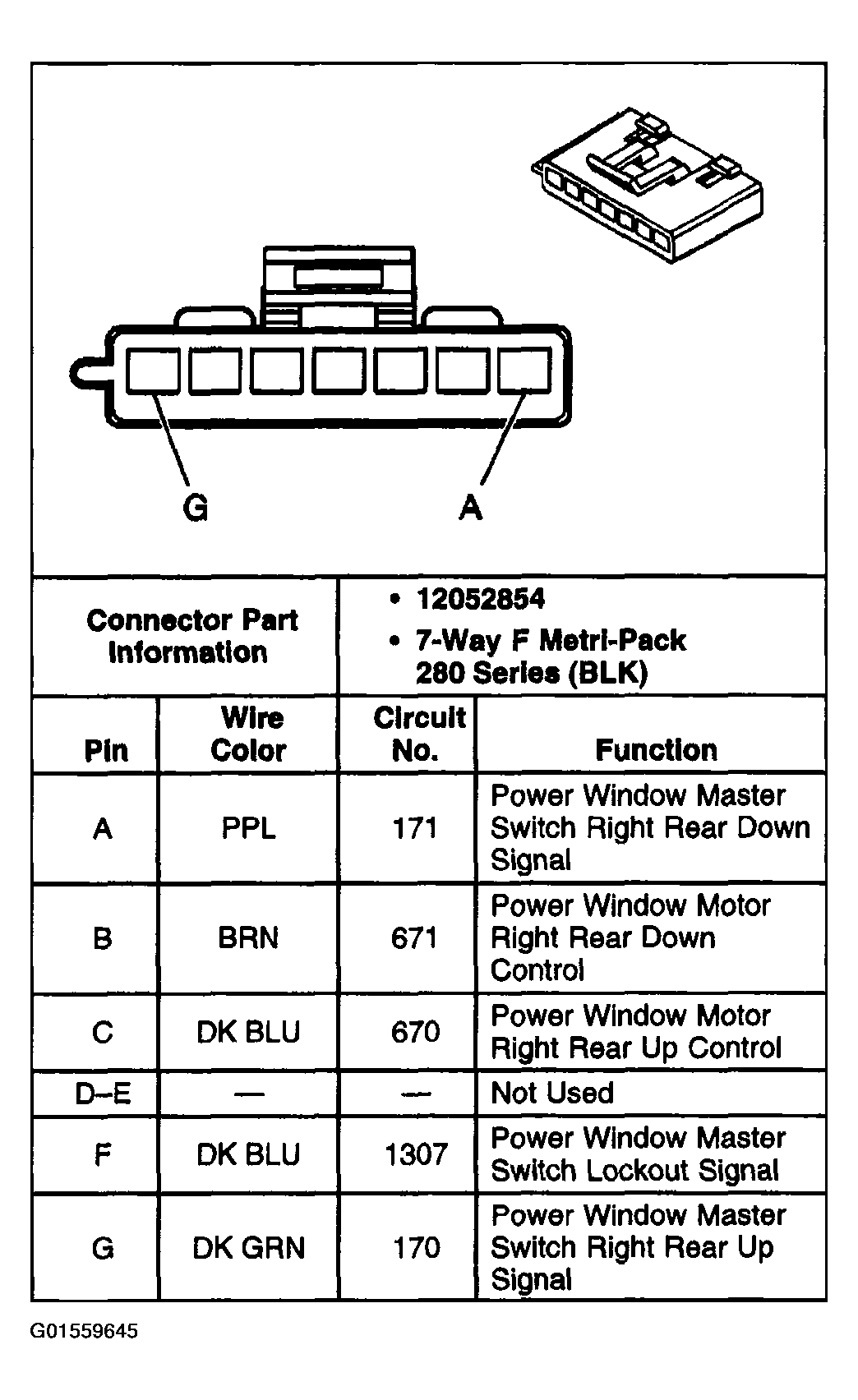

Fig 26: Identifying Power Door Systems Connector End View - Window Switch (RR)

G01559645

Courtesy of GENERAL MOTORS CORP.
