Removal Procedure

Remove the upper trim finish panel from the front door. Refer to TRIM PANEL REPLACEMENT - UPPER EXTENSION .
Remove the rear view mirror sound absorber.
Disconnect the rear view mirror electrical connector (3), if equipped.

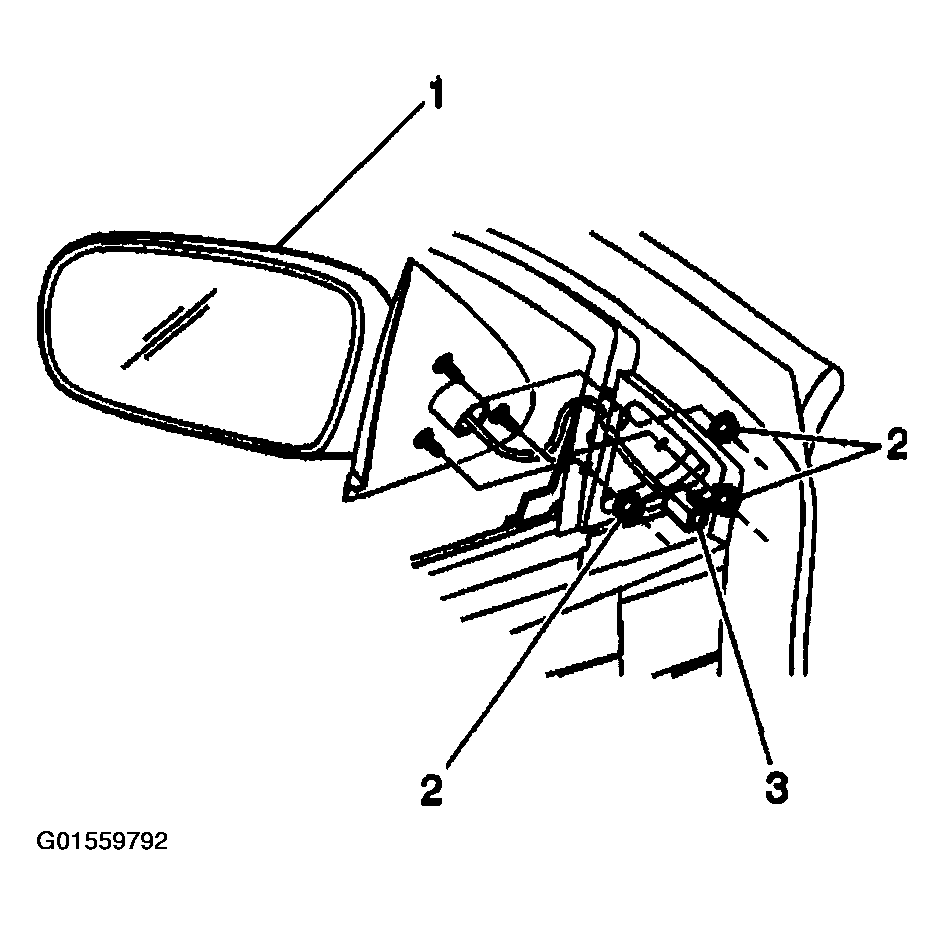

Fig 1: Disconnecting Rear View Mirror Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the rear view mirror nuts (2).
Remove the rear view mirror (1) from the door.

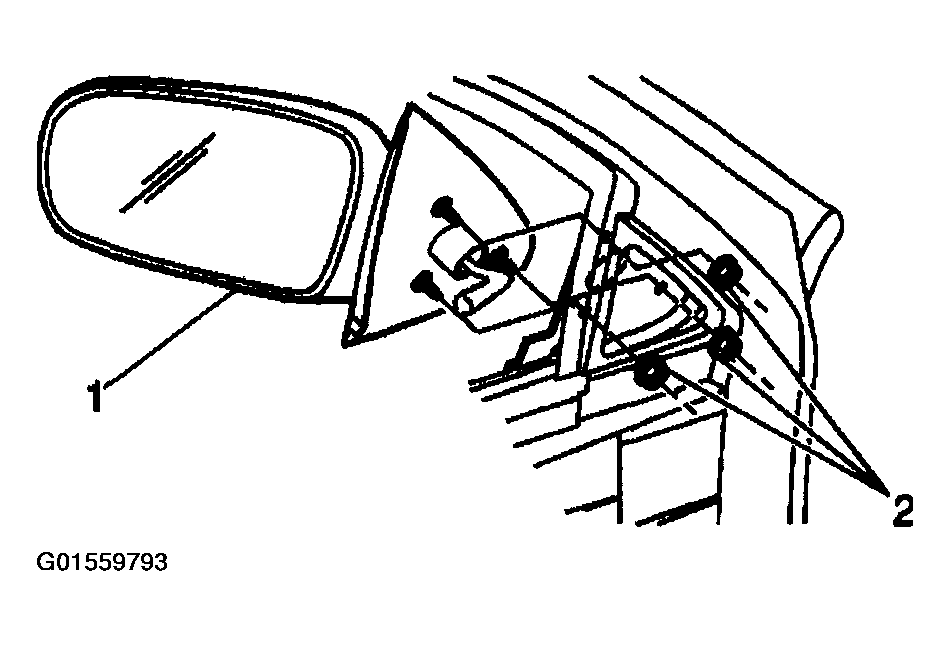

Fig 2: Removing Rear View Mirror From Door
Courtesy of GENERAL MOTORS CORP.
