Repair and Diagnosis
›
Body & Frame
›
Windows
›
Stationary Window System
›
Component Locator
›
Stationary Windows Component Views
Stationary Windows Component Views

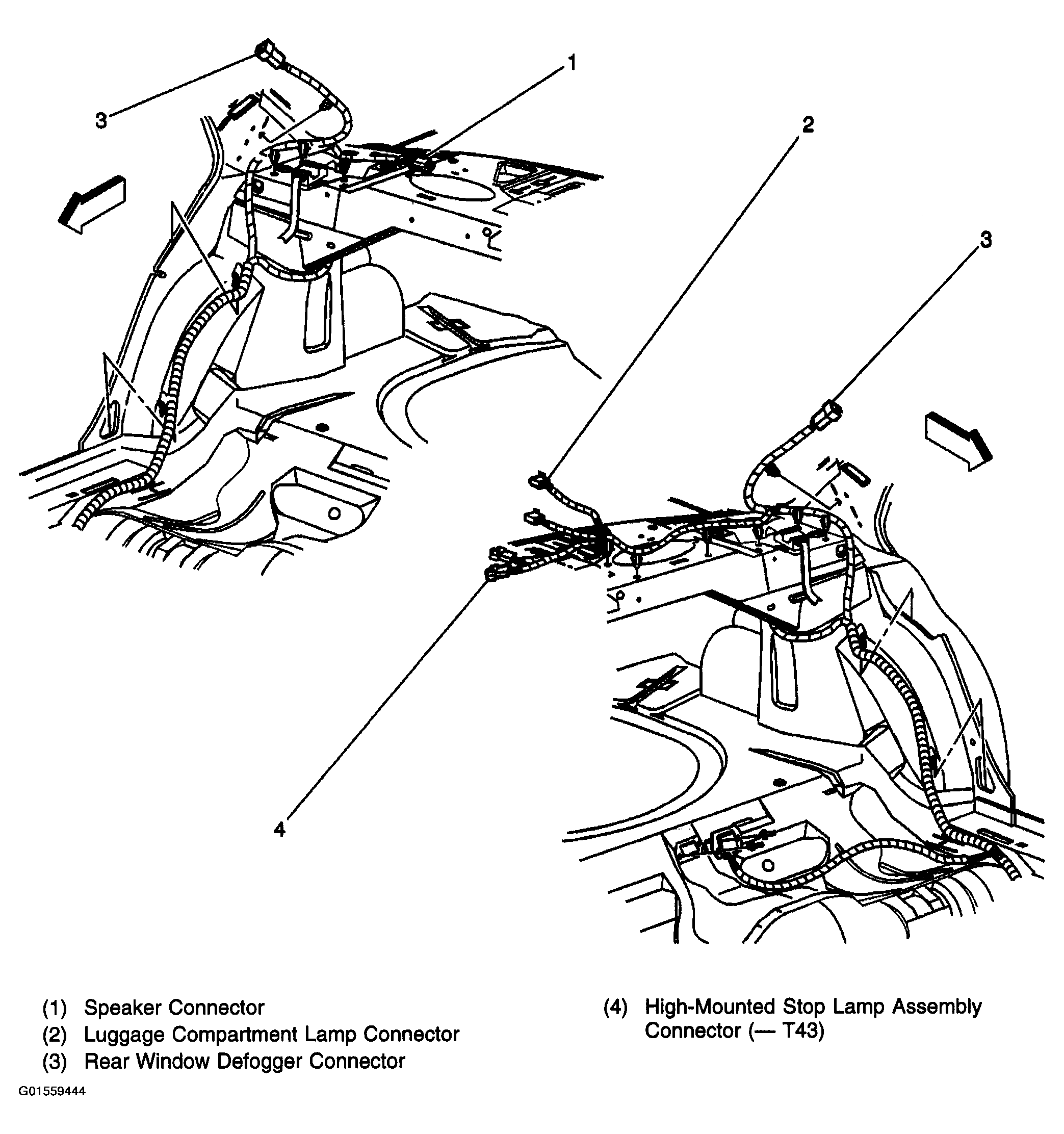

Fig 1: Component Location - Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
