Scan Tool Output Controls

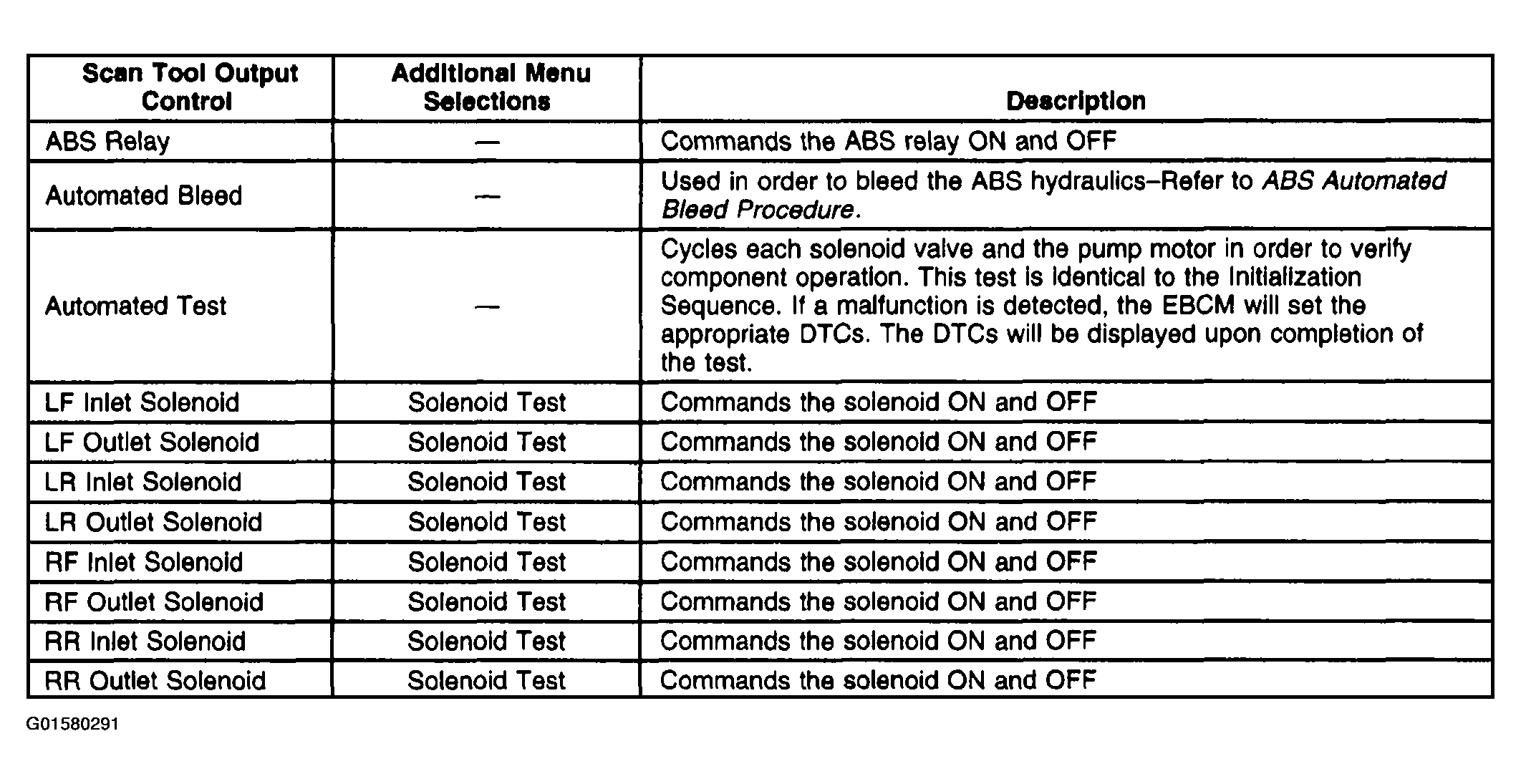

Fig 1: Electronic Brake Control Module - Scan Tool Output Controls Description
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
