Installation Procedure

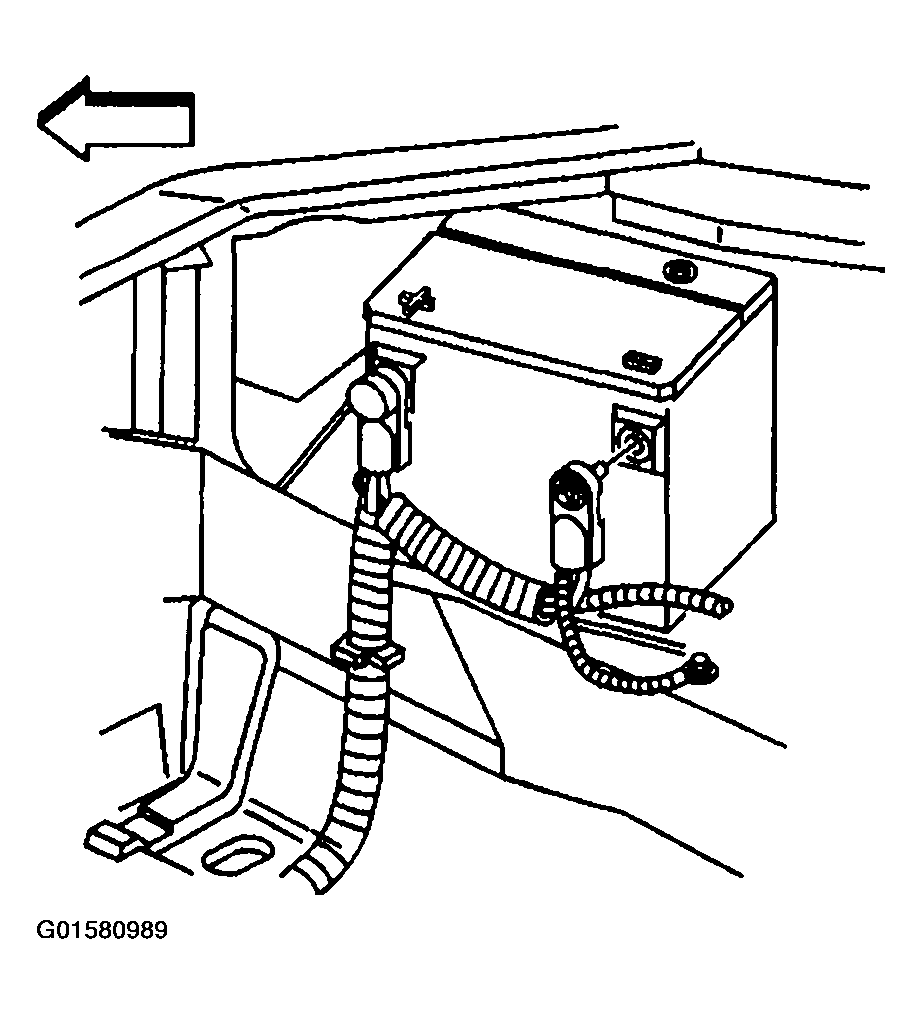

Fig 1: Connecting Battery Negative Cable

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

IMPORTANT: Clean any existing oxidation from the contact face of the battery terminal and battery cable using a wire brush before installing the battery cable to the battery terminal.

Connect the battery negative cable to the battery.

Tighten

Tighten the bolt to 15 N.m (11 lb ft).
