Removal Procedure

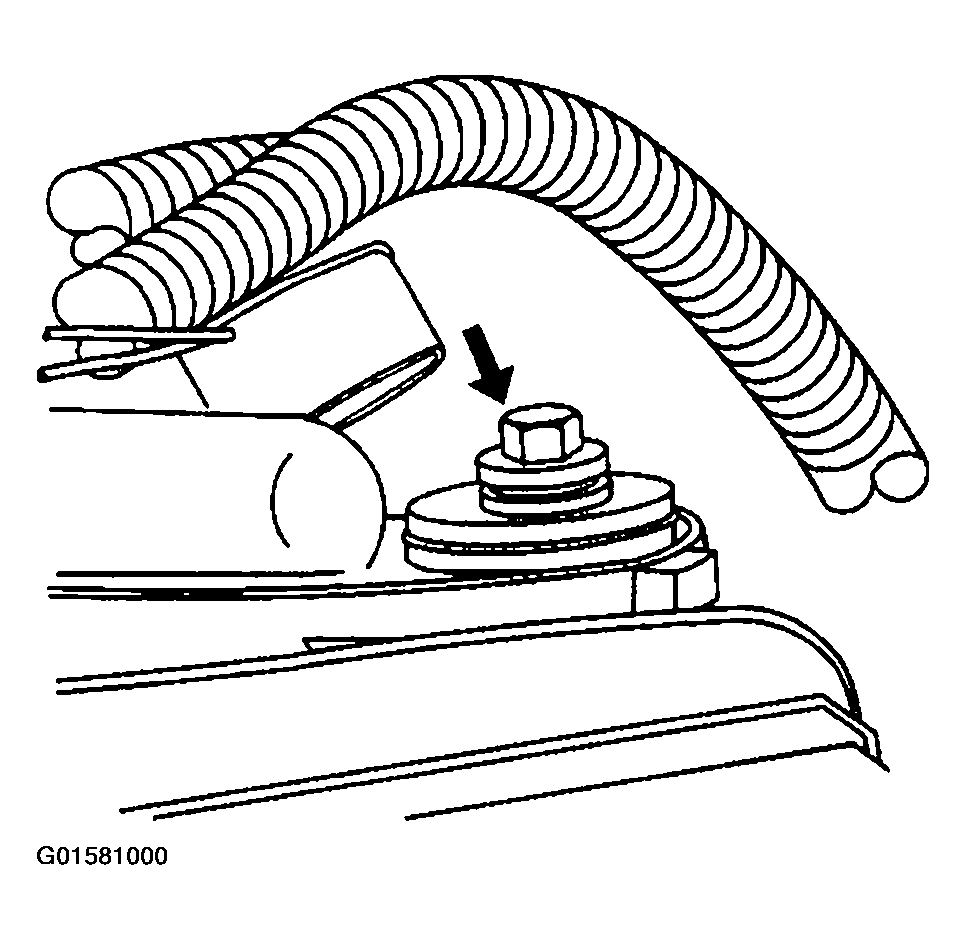

Fig 1: Removing Power Lead Bolt

Courtesy of GENERAL MOTORS CORP.

Remove outlet duct and resonator. Refer to AIR CLEANER ASSEMBLY REPLACEMENT in Engine Controls.
Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
Disconnect the positive battery cable at the battery.
Lift fuse/relay center to access power lead bolt.
Remove power lead bolt from fuse/relay center.
Cut the tape holding the 2 cables together at the retainer on the battery tray.

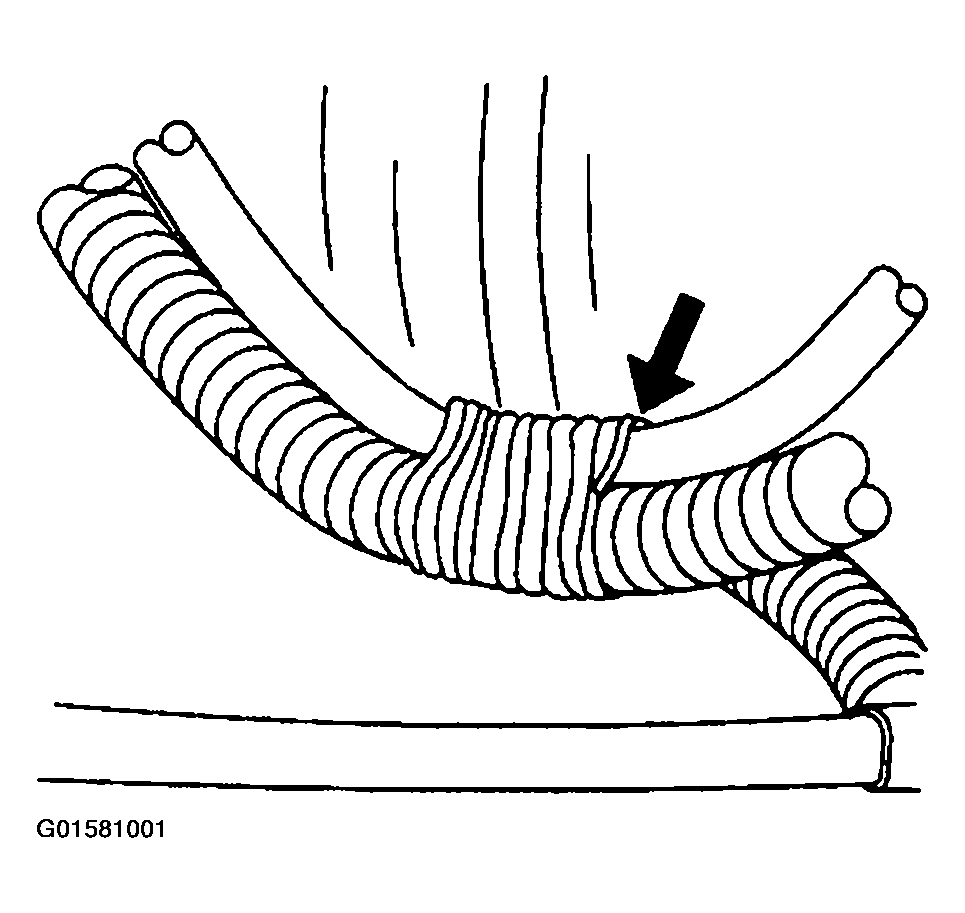

Fig 2: Cutting Tape Holding 2 Cables Together At Retainer On Battery Tray
Courtesy of GENERAL MOTORS CORP.
Cut the tape holding the 2 cables together near the transmission electrical plug.

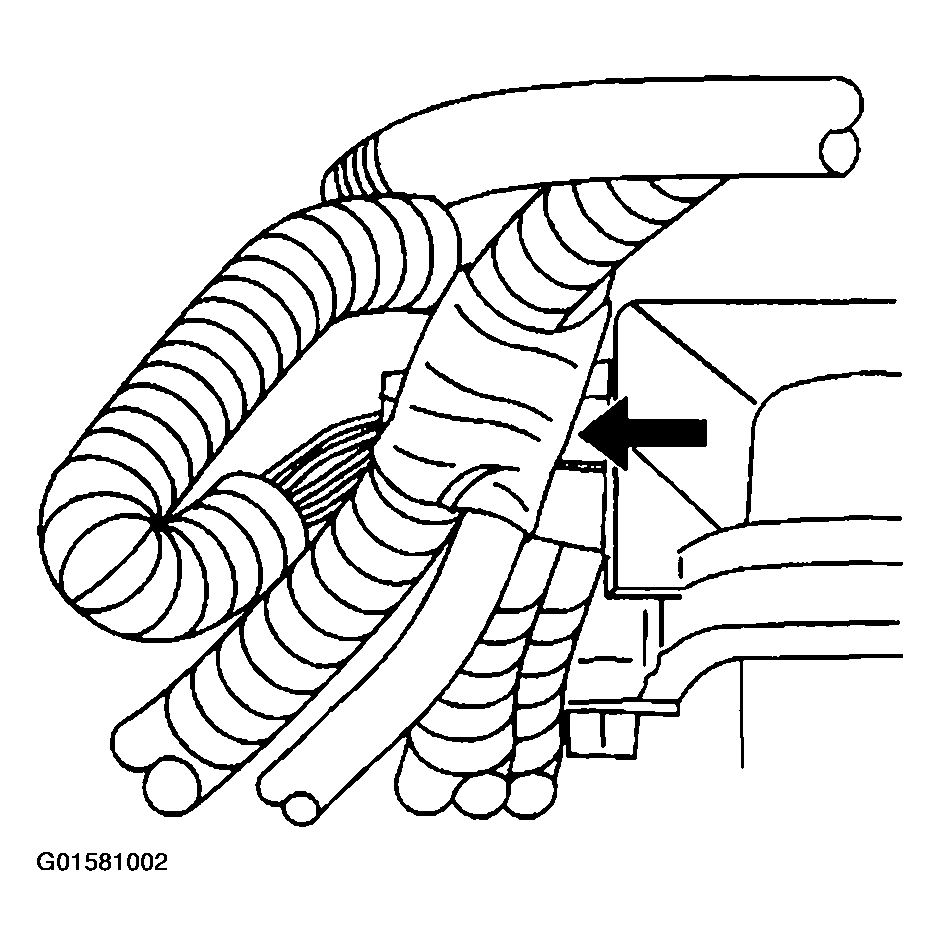

Fig 3: Cutting Tape Holding 2 Cables Together Near Transmission Electrical Plug
Courtesy of GENERAL MOTORS CORP.
Remove the positive battery cable to starter solenoid nut.
Remove the positive battery cable from the vehicle.
