Removal Procedure

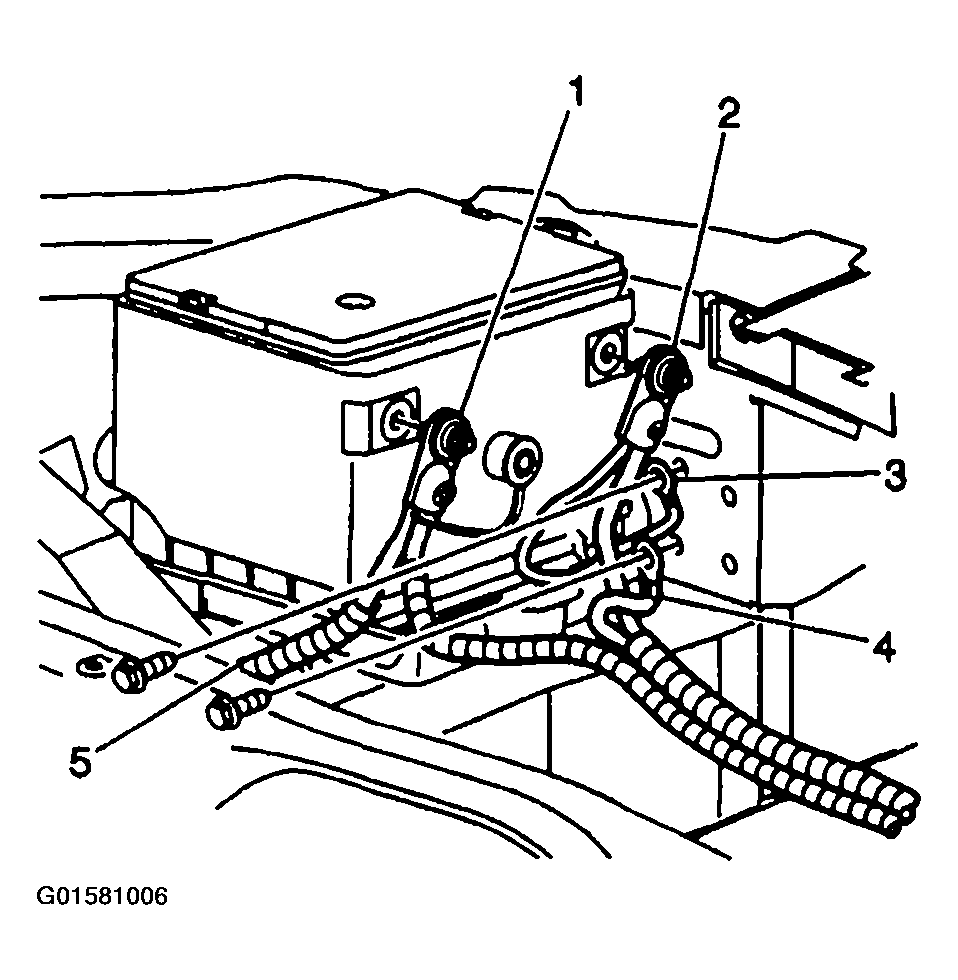

Fig 1: Removing Battery Hold Down Retainer Bolt And Retainer

Courtesy of GENERAL MOTORS CORP.

Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
Disconnect the positive battery cable.
Remove the battery hold down retainer bolt and retainer.
IMPORTANT: Do not tip the battery more than 40 degrees during removal.

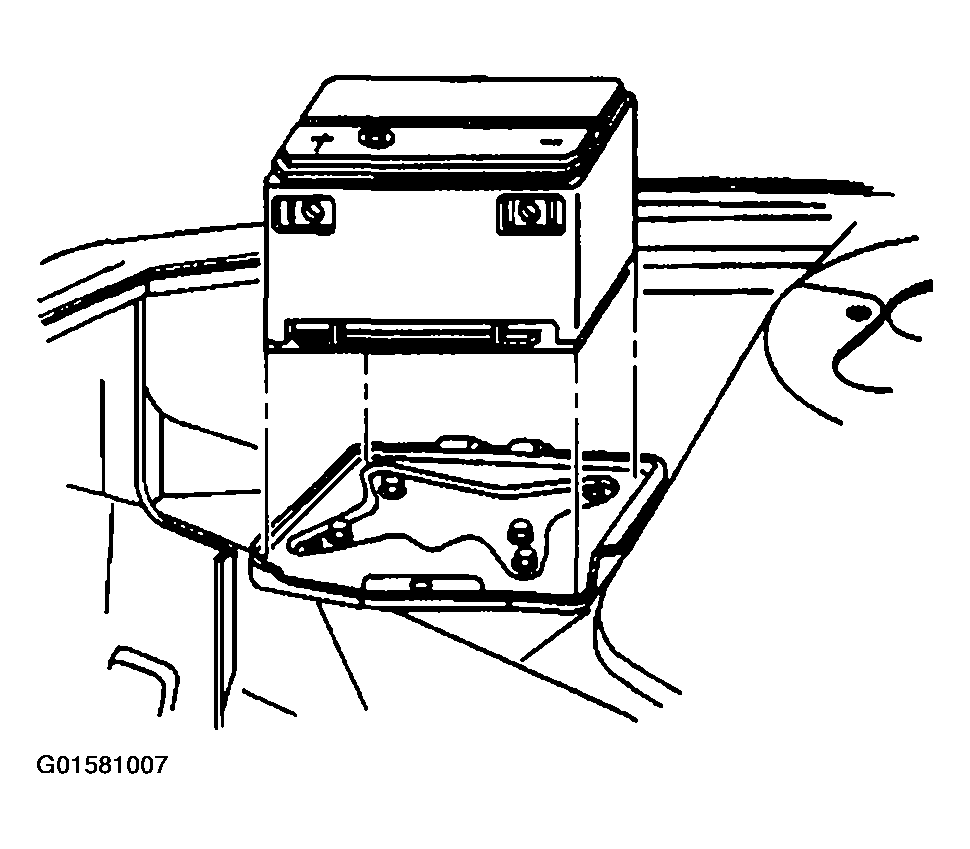

Fig 2: Removing Battery
Courtesy of GENERAL MOTORS CORP.
Remove the battery.
