Engine Compartment Fuse/Relay Center
NOTE:

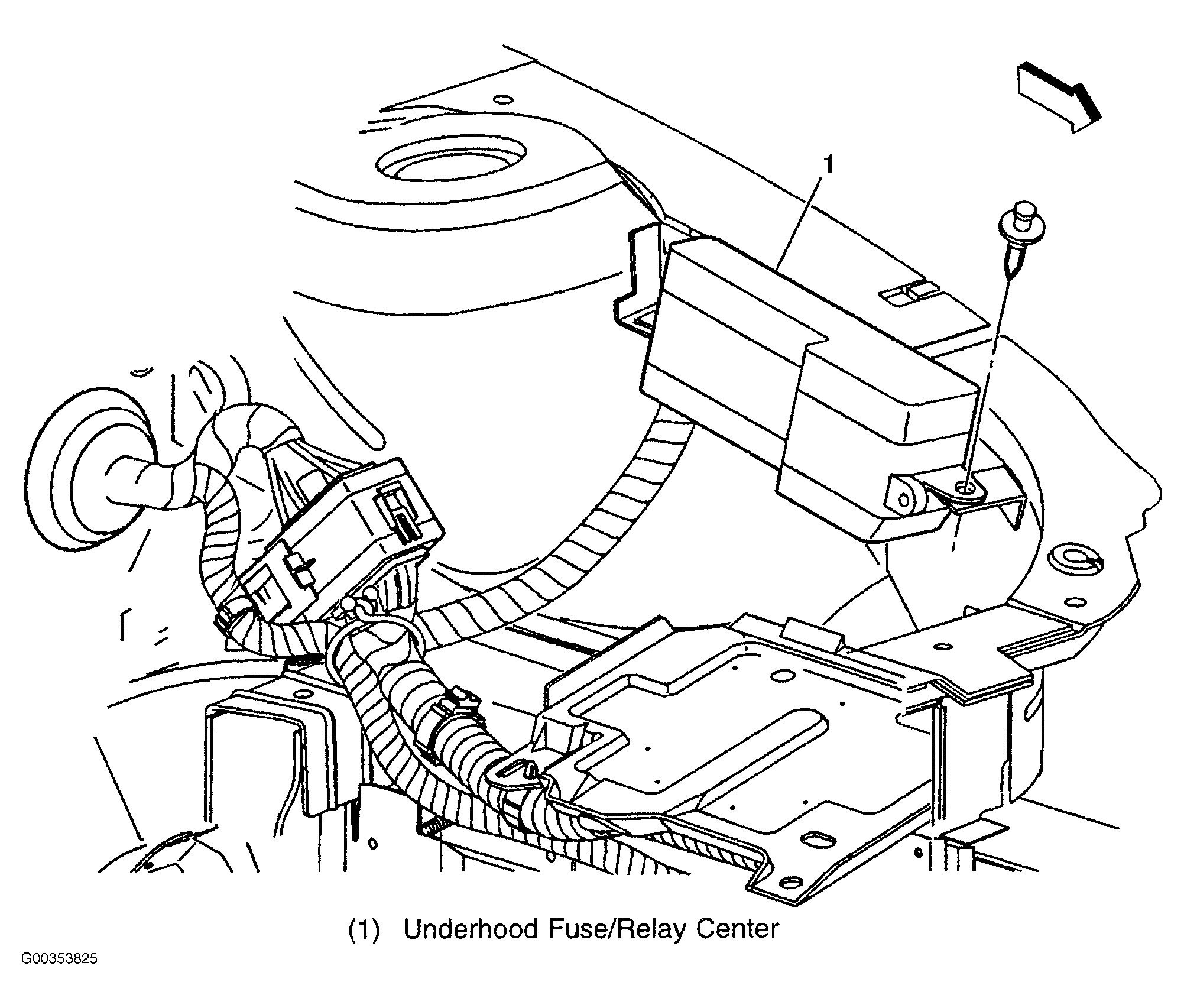

Engine compartment fuse/relay center is located on driver's side of engine compartment. See Fig 1.
ENGINE COMPARTMENT FUSE BLOCK CIRCUIT IDENTIFICATION
| Fuses | Usage |
|---|---|
| IGN | Ignition Switch Circuits |
| BATT 1 | Exterior lamps, Power Outlet, Horn, Audio Amplifier |
| BATT 2 | Rear Defogger, Starter, Power Locks, Stoplamps |
| ABS | Anti-Lock Brake System |
| COOLING FAN | Engine Cooling Fan |
| PCM/HVAC | Powertrain Control Module, Heater and A/C Blower |
| CRNK | Starter |
| BLO | Heater and A/C Blower |
| PCM | Powertrain Control Module |
| A/C | A/C Compressor |
| A/C | A/C Compressor |
| FUEL PUMP | Fuel Pump |
| CRANK | Starter |
| COOLING FAN | Engine Cooling Fan |
| HEATER BLOWER | Heater and A/C Blower |
