Component Locations

COMPONENT LOCATIONS

Component Location
Cooling Fan (1) Behind Radiator
Cooling Fan Relay (2) In Underhood Fuse Block, On Driver's Side
(1) See Fig 1 .
(2) See Fig 2 .

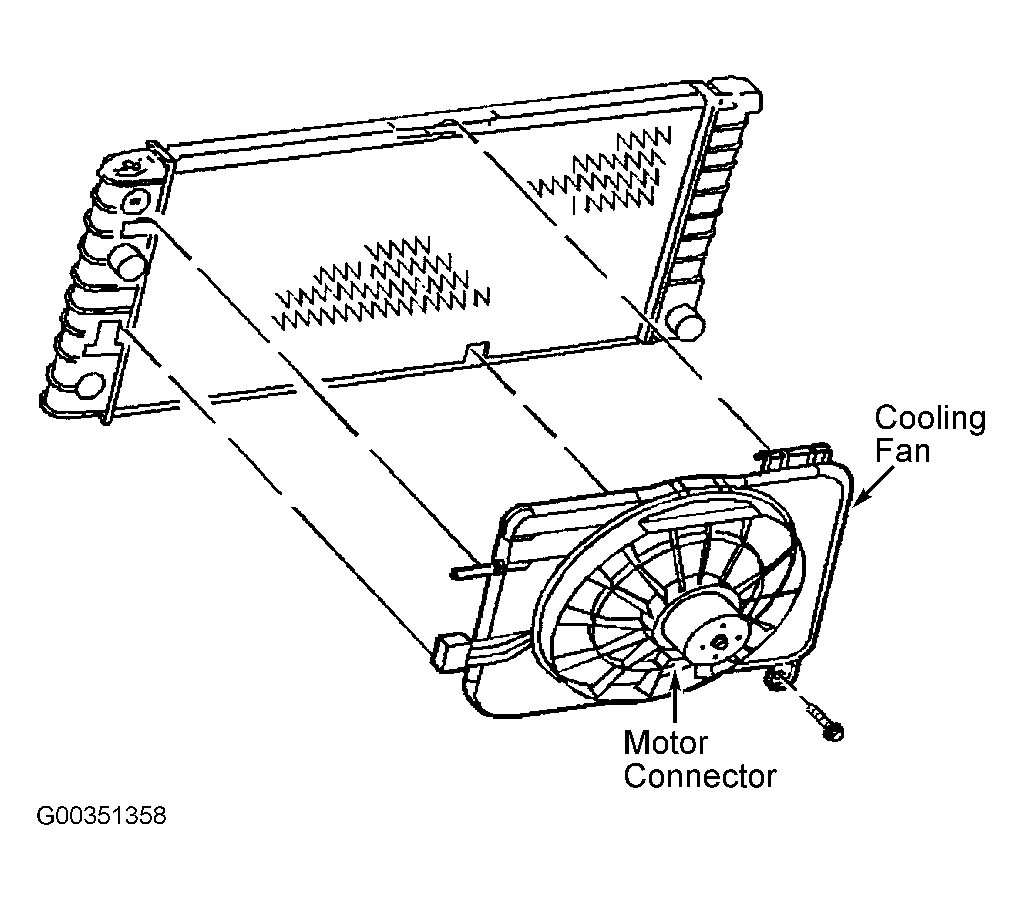

Fig 1: Locating Cooling Fan
G00351358Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Underhood Fuse Block Cooling Fan Relay
G00353827Courtesy of GENERAL MOTORS CORP.
