Engine Controls Self-Diagnostics - 2.2L
›
Self-Diagnostic System
›
Powertrain Control Module Location
Powertrain Control Module Location

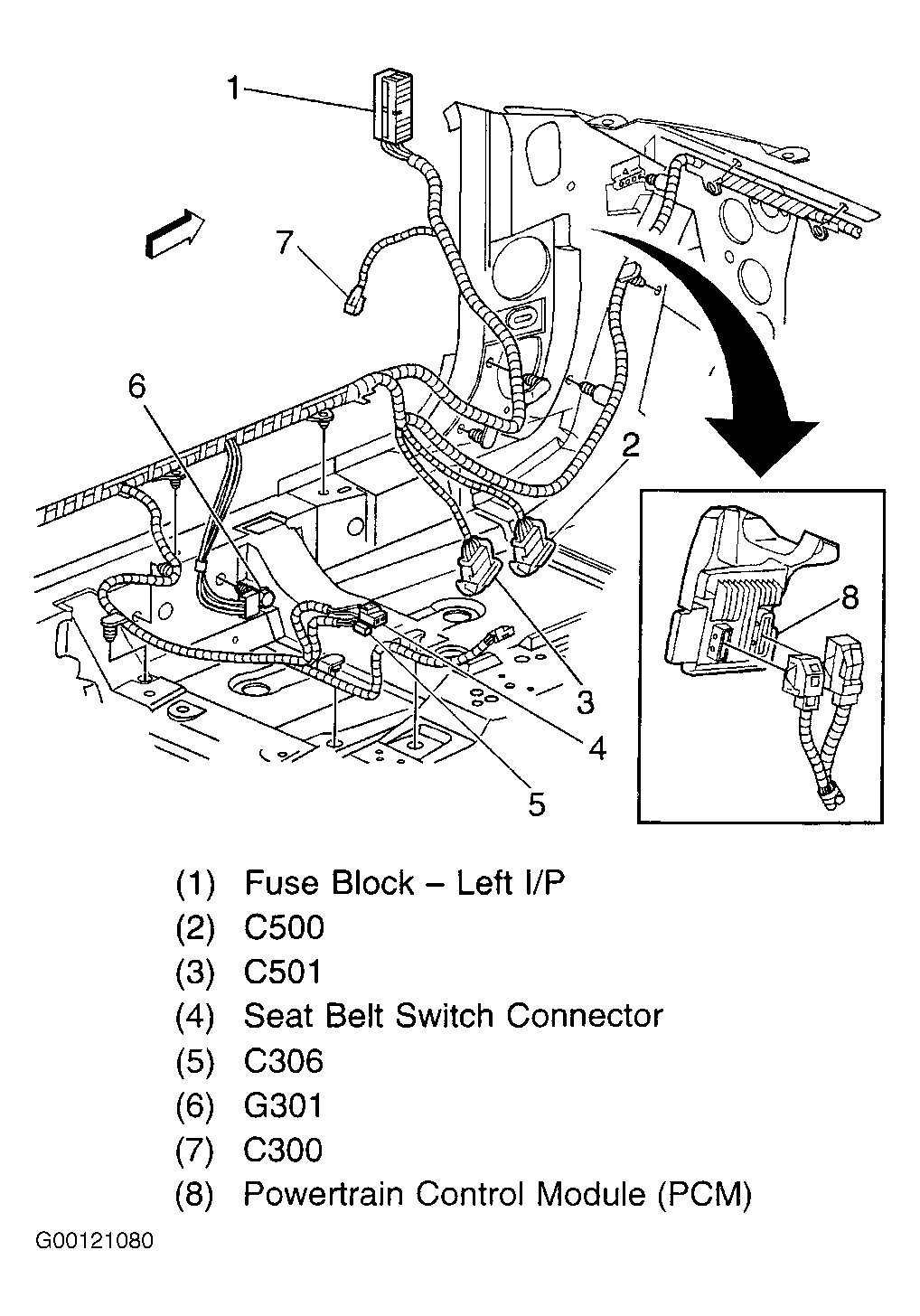

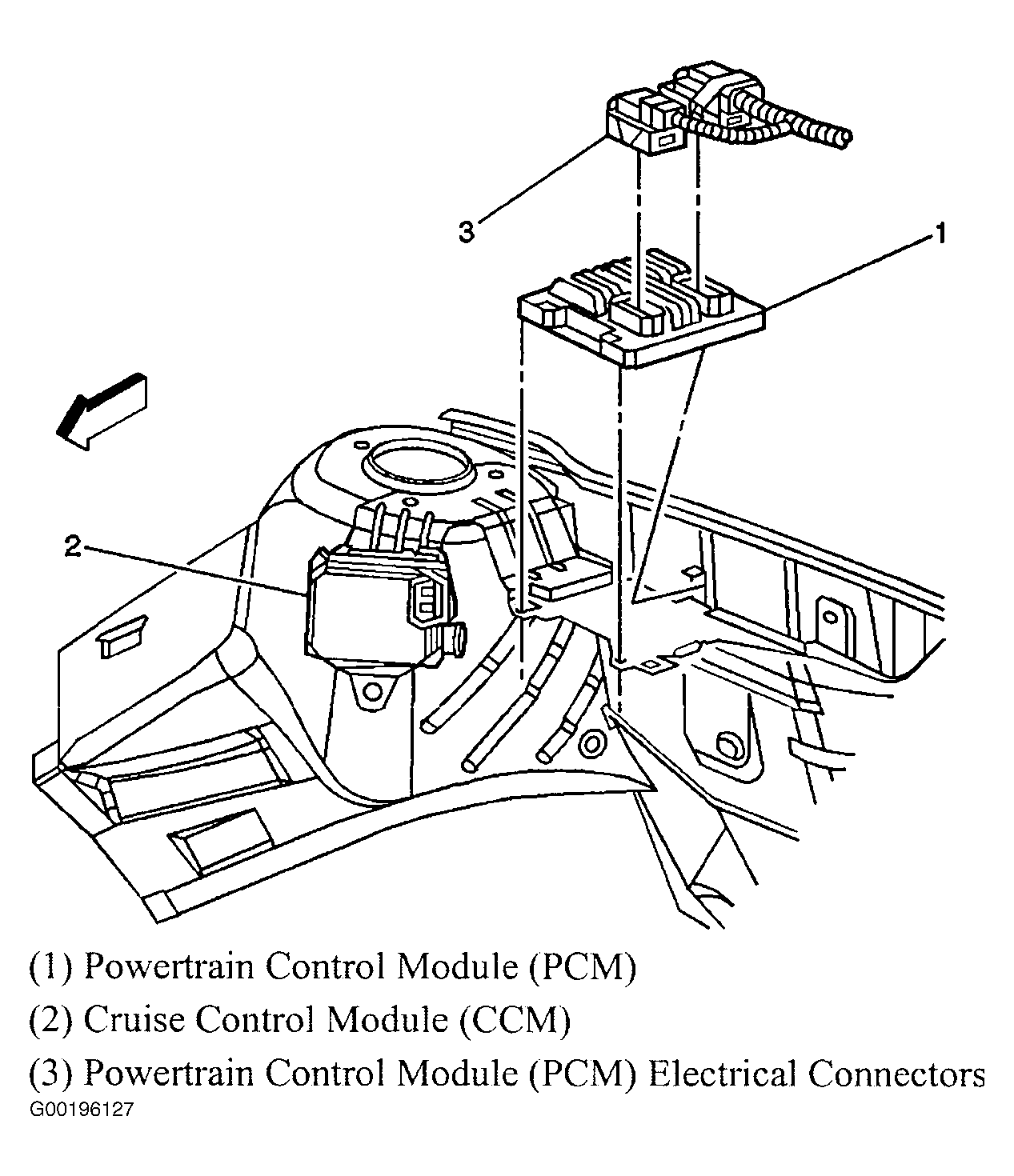

PCM is located in right rear of engine compartment. See
Figure
and
Figure
.
