Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sensor (1) to the hood latch support bracket (3).
    Fig 1: View Of Inflatable Restraint Front End Sensor
    GM202141Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the mounting bolts (2) to the sensor (1).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  3. Connect the wiring harness connector to the sensor (1).
  4. Install the CPA to the wiring harness connector.
  5. Install the hood close out panel to the vehicle.
  6. Install the pushpin retainers to the hood close out panel.

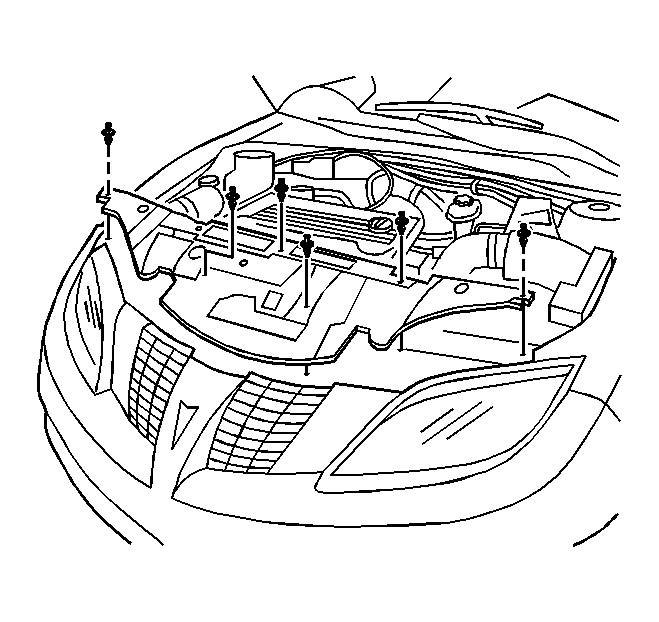

    Fig 2: Identifying Hood Close Out Panel Pushpin Retainers
    GM833369Courtesy of GENERAL MOTORS CORP.
  7. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 1 .
