Power Roof Systems Component Views

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

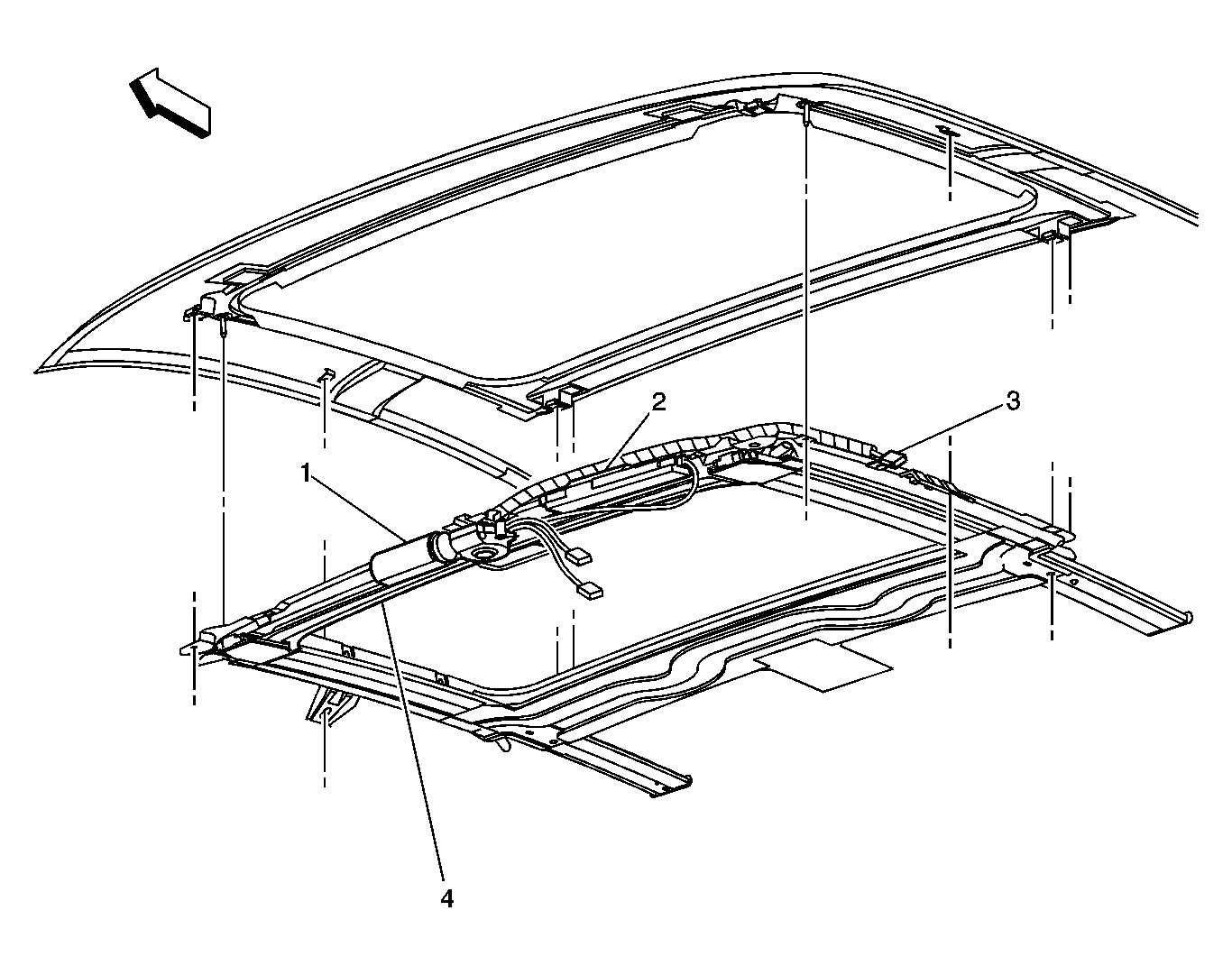

Fig 1: Sunroof Assembly Component View
GM292126Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Motor
2 Sunroof Control Module
3 C201
4 Sunroof Assembly
Fig 2: Dome Lamp & Sunroof Switch Component View
GM291763Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome Lamp Assembly
2 Sunroof Switch
