Removal Procedure
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
- Close the sunroof.
- Remove the headliner panel. Refer to Headliner Replacement in Interior Trim.
- Disconnect the drain hose connections from the sunroof housing.

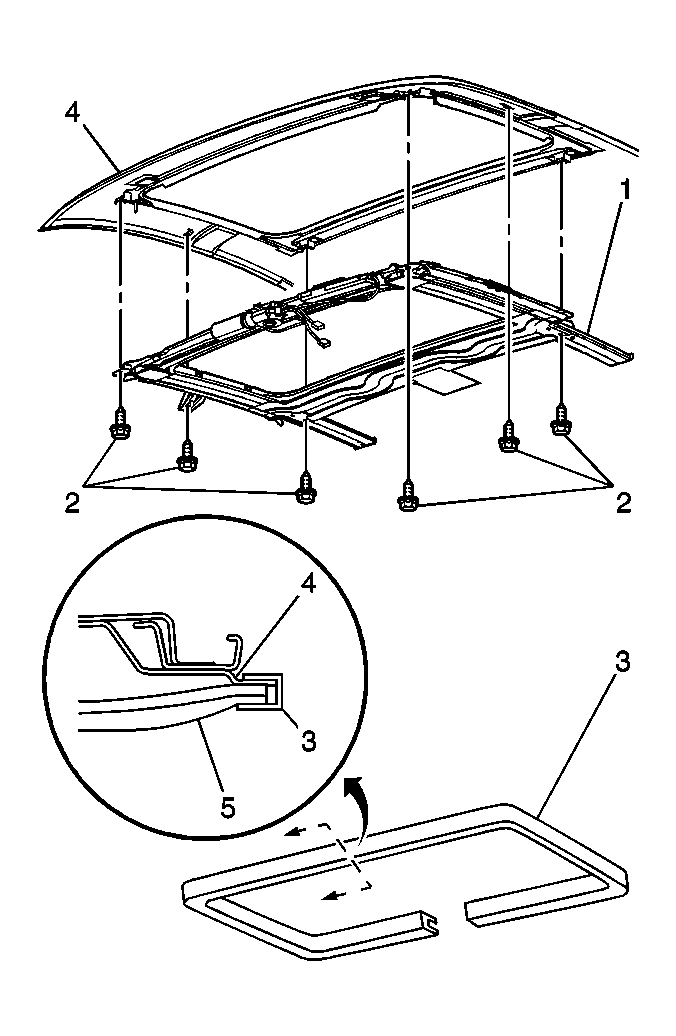

- With an assistant, remove the sunroof module bolts (2).
- With an assistant, remove the sunroof module assembly (1), by pulling the module downward at the rear mounting points to disengage the white locating pins.
